Report Generation
Chapter 17
17-5

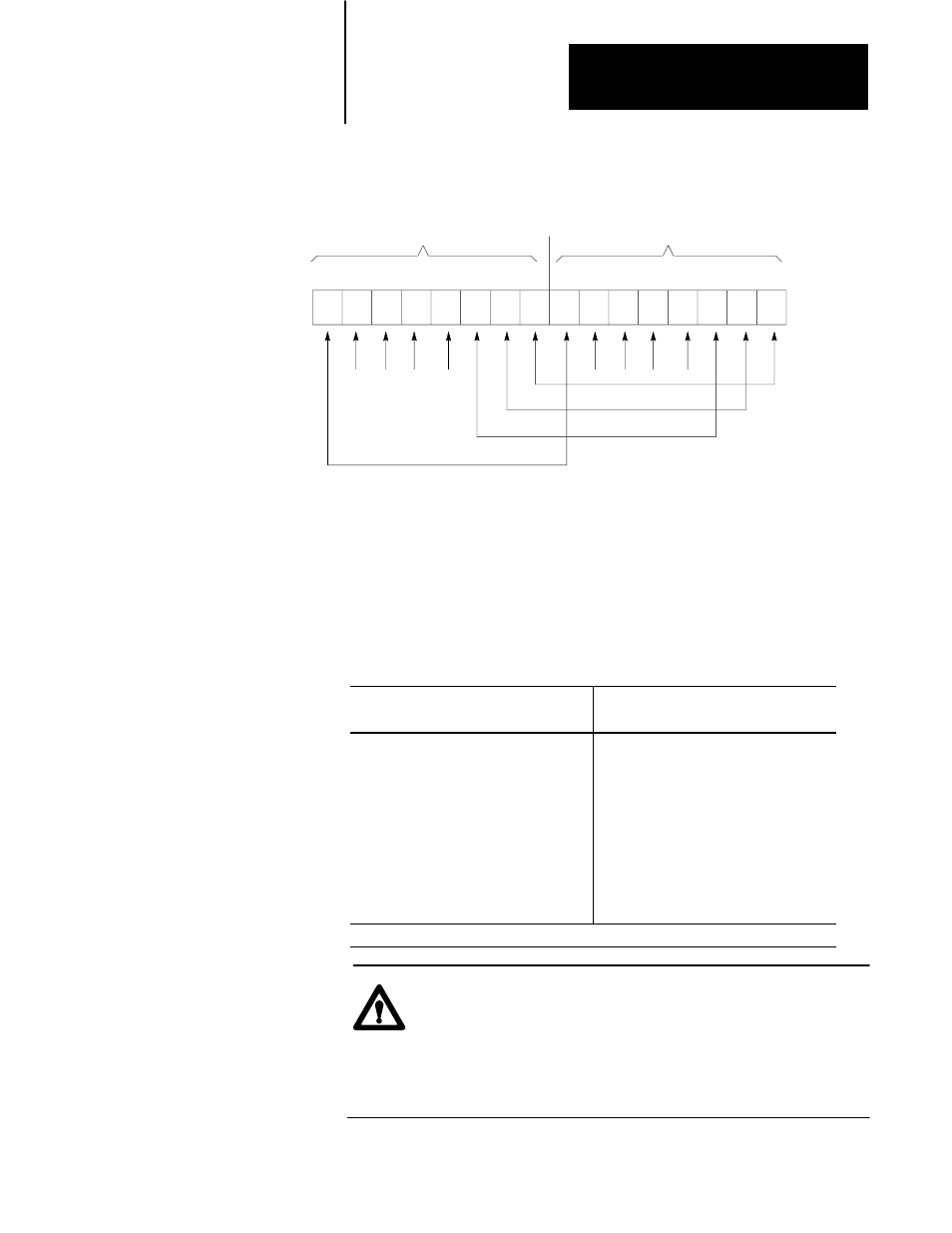

Figure 17.4
Message Request BitĆDone Bit Relationship
10219ĆI
Message Request Bits
Message Done Bits
17
10
07
00
Message
Control
Word
The message print command is valid for message 0. It prints out the
message control word addresses in a form similar to that shown in
Table 17.A. If the location of the message control file is to be changed or
you no longer need message 0, it can be deleted with the message delete
command and re-entered at any time.
Table 17.A
Example Message Control WordĆMessage Number Relationship
Control
Words
Message
Numbers
200
010Ć017
201
110Ć117
202
210Ć217
203
310Ć317
204
410Ć417
205
510Ć517
206
610Ć617
207
710Ć717
IMPORTANT: This table assumes user selected message control words begin at 200
8
.
ATTENTION: Do not use message control words for any other
purpose. This warning is especially critical for output image
table locations when output or block transfer modules are
placed in corresponding slots. Failure to observe this warning
could result hazardous or unexpected machine operation. This
could result in damage to equipment and/or injury to personnel.
