Rockwell Automation 20-COMM-Q ControlNet Adapter User Manual
Page 107
Using the I/O
5-33
20-COMM-C/Q ControlNet Adapter User Manual
Publication 20COMM-UM003F-EN-P

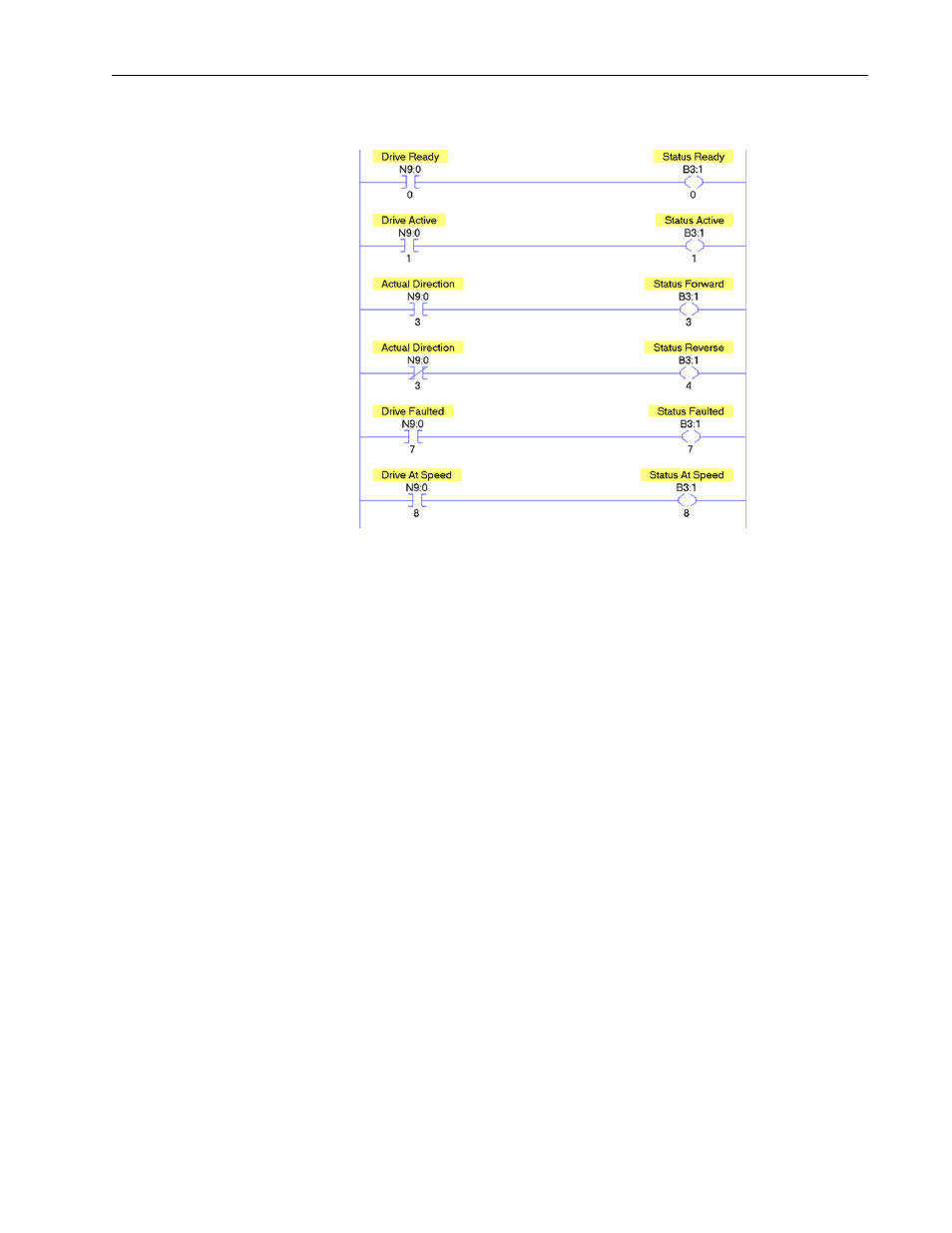

Figure 5.13 PLC-5 Example Ladder Logic Program for Logic Status
PowerFlex 70
and PowerFlex
750-Series
Drives
