RKI Instruments SDM-2012 PC Controlled Configuration User Manual
Page 49
Connecting Instruments to the PC Controller Program • 44
3.
Install an instrument in the appropriate recess of the instrument cradle. The
plastic flap should be covering the recess not in use. Flip the plastic flap over if
it is covering the recess you need to use.
NOTE:
If you are only charging an instrument or viewing or editing parameters,
you do not need to connect the gas out to instrument line or the
exhaust line to the instrument.

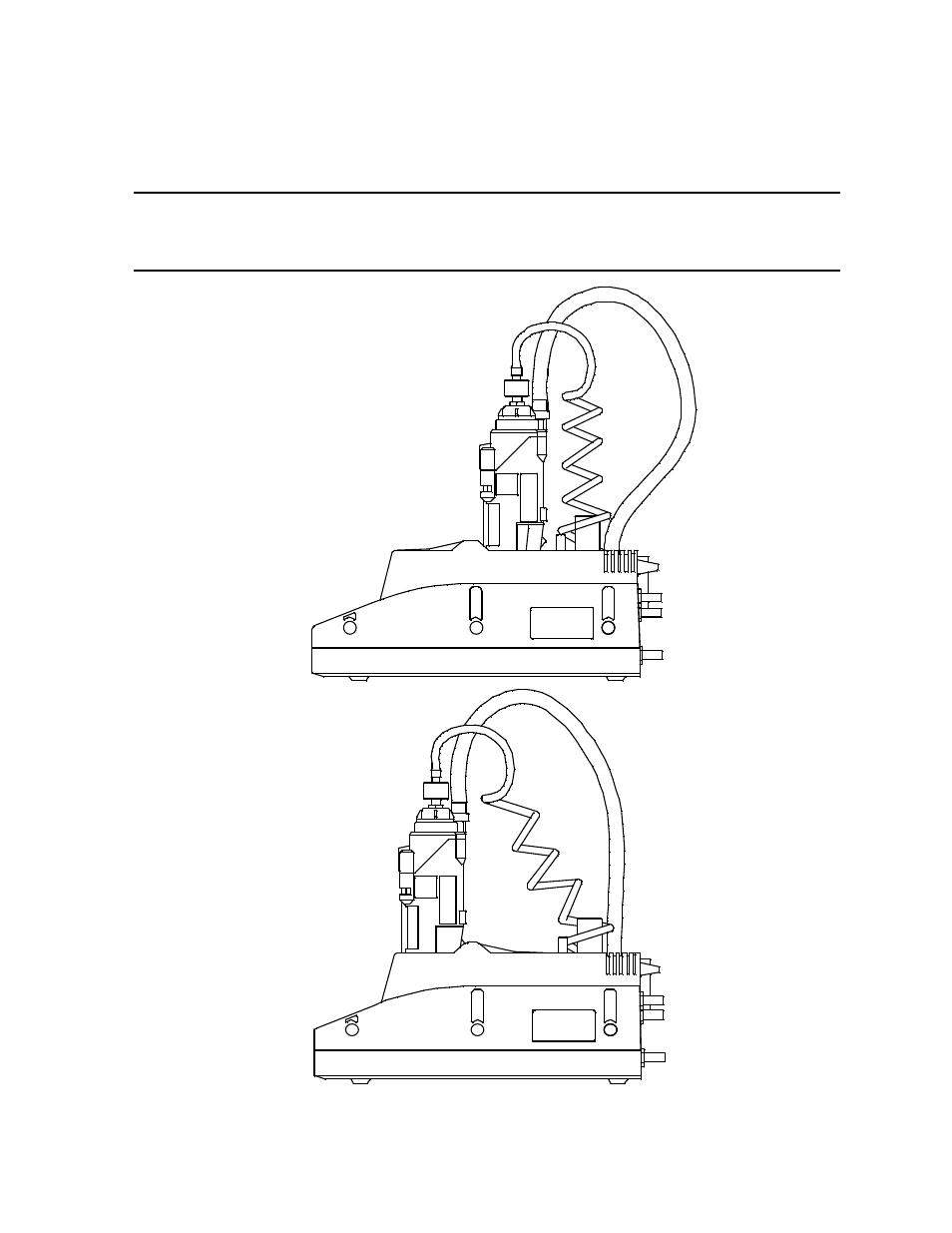

Figure 31: Inserting the Instrument
GX-2012 or Gas
Tracer with Alkaline
Battery P ack
GX-2012 or Gas
Tracer with Li-Ion
Battery P ack
