123 • Logs Button
5. To view the alarm trend data, double click the desired file.

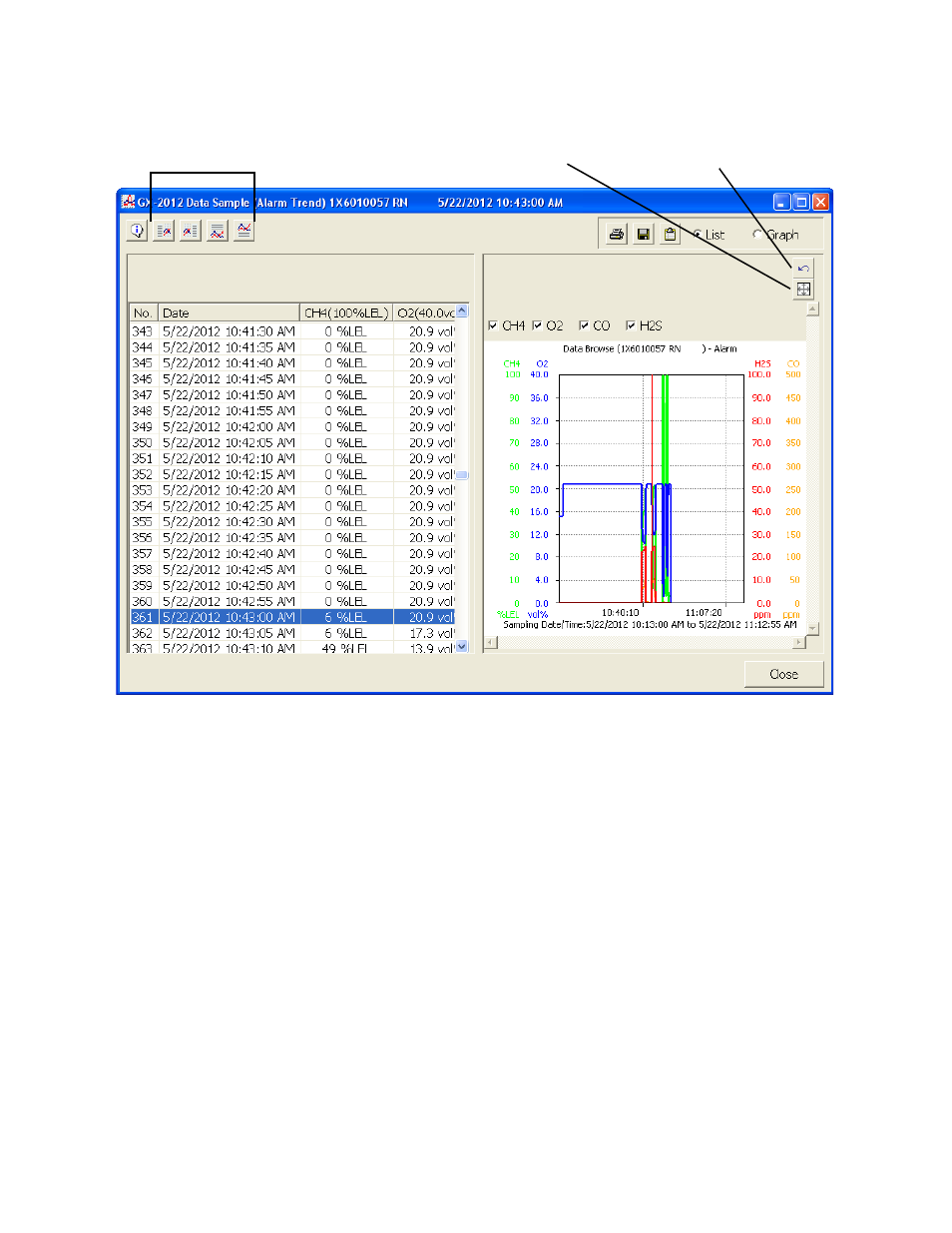

Figure 96: Alarm Trend Data
Each data point will be displayed in the left half of the screen along with the
peak readings (minimum for oxygen) over the previous 5 seconds. A graph of
the data will appear on the right half of the screen.
To change the layout of the table and chart in relation to each other, click any
of the four layout control buttons in the upper left corner of the screen.
To change the proportions of the table to the graph, click the divider between
the two and move it.
To display instrument information along with the data table and graph, click the
“i” control button in the upper left corner.
6. In the table part of the screen,
• The gas readings at the time of the alarm event around which the logged
data is centered are highlighted in red and are the instantaneous readings
at that time.
Restore Previous Layout Control Buttons
