141 • Logs Button
Report control button along the top of the Logs window. A dialog box will
appear confirming if you want to print. Click OK.
10. To print detailed calibration (if available) and bump test data for each
calibration and bump test file for a specific serial number, be sure that the
desired serial number is selected in the upper left frame and click the Bump
Test & Calibration Report control button along the top of the Logs window. A
dialog box will appear confirming if you want to print. Click OK.
11. To save bump test data from a specific date folder, be sure the desired date
folder is highlighted and click the Save control button in the upper left corner of
the Logs window. A “Save As” dialog box will appear for you to specify the file
name and file location.

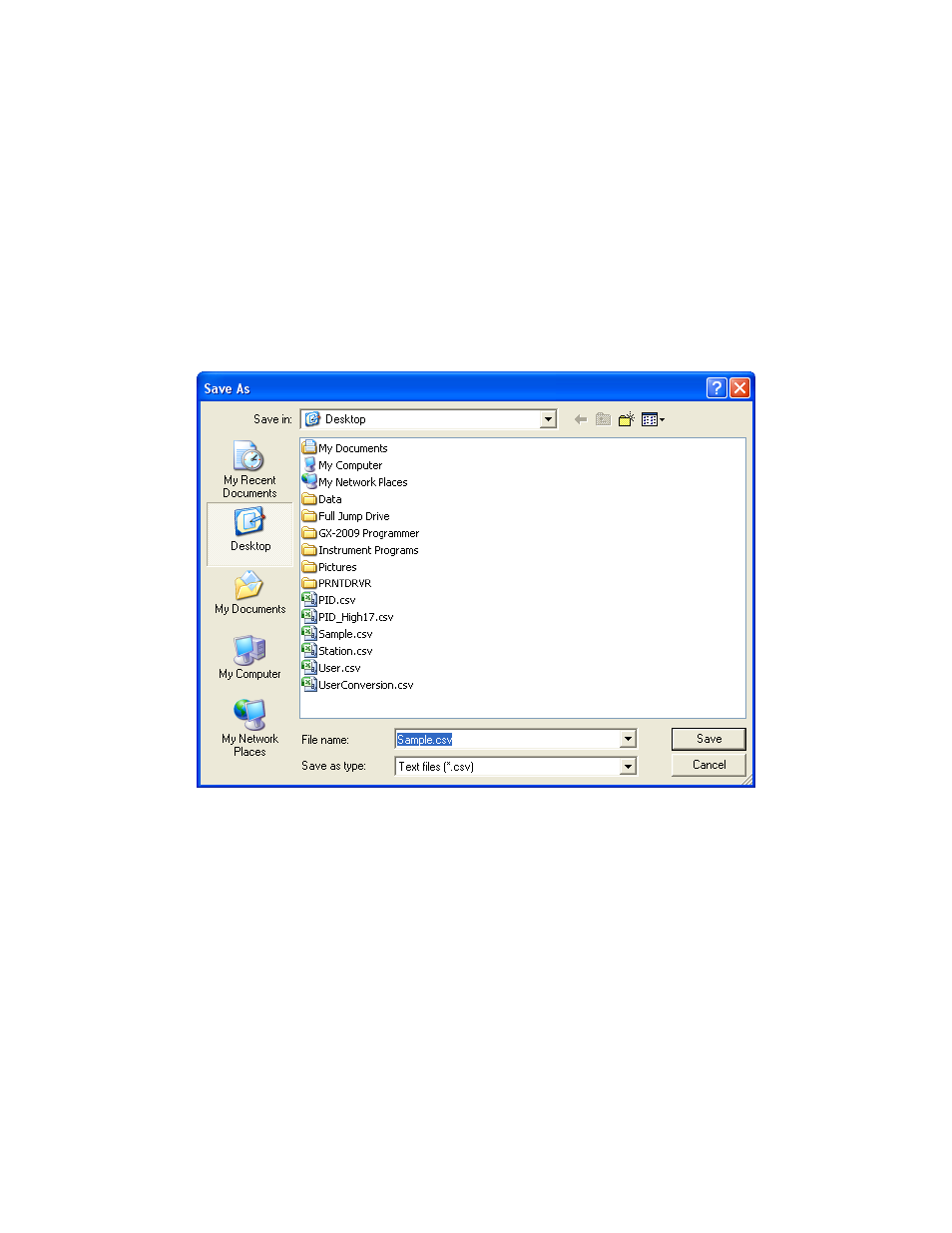

Figure 112: Save As Dialog Box
Specify the file name and location and click Save.
12. To copy bump test data in a date folder to the clipboard, be sure the desired
date folder is selected and click the Save to Clipboard control button. The
data will be saved to the clipboard. It can then be pasted into a document by
using the Paste command in an application.
Barhole Data
To view and perform desired operations with the barhole files:
1. While in the Logs window, find your instrument by serial number, then click the
expanded view symbol (+) of or double-click the serial number folder to view
the contents.
