5 • Description
Description
This section describes the SDM-2012 docking station. It is designed to be used on a
table top and consists of the AC adaptor, Type A to Type B USB cable, air filter, check
valve, 3 plastic T-fittings, sample tubing, instrument panel, back panel, control panel,
status LEDs, and 2 USB ports.
AC Adapter

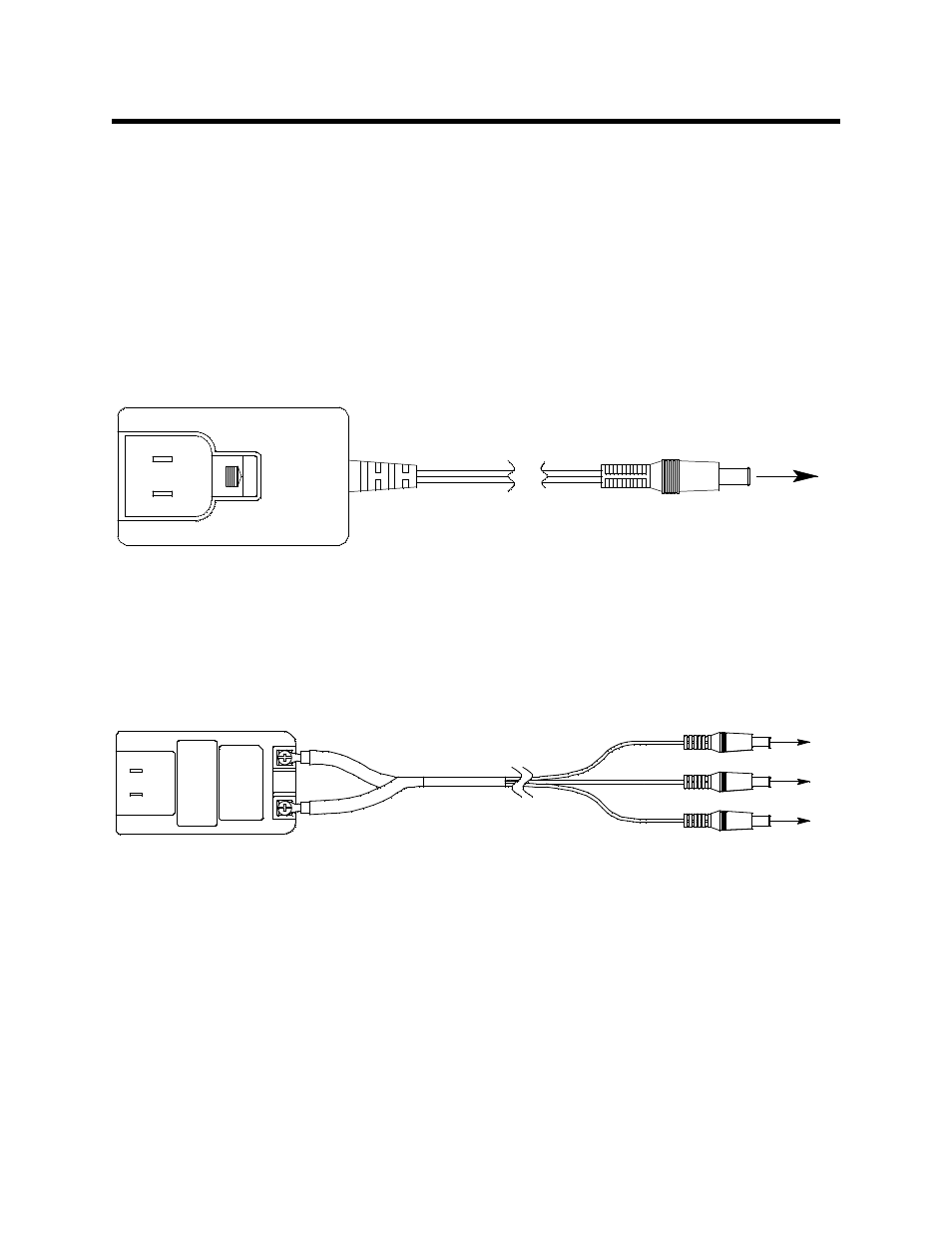

Single-Port AC Adapter
The single-port AC adapter is a wall plug style adapter with a 5 foot cable. The end of
the cable has a plug that connects to the power jack on the SDM-2012’s back panel.
The AC adapter is rated 100 - 240 VAC input, 12 VDC 1.2 A output.
3-Port AC Adapter
The 3-port AC adapter is a wall plug style adapter with three 5-foot cables. The end of
each cable has a plug that connects to the power jack on the SDM-2012’s back
panel. The AC adapter is rated 100 - 240 VAC input, 12 VDC 2.0 A output.
To Power Jack
on SDM-2012
Back Panel
Figure 1: Single-Port AC Adapter
To Power Jack
on SDM-2012
Back Panels
Figure 2: 3-Port AC Adapter
