165 • Instrument Function Menu
Sensor Tab
The Sensor Tab displays the alarm settings and auto calibration values for all
installed sensors. It also shows the date and time of the most recent calibration for
each channel. If you are viewing a standard 4-gas GX-2012 plus a %volume sensor,
the information for the %volume sensor will appear directly below the H
2
S sensor’s
information. If you are viewing a standard Gas Tracer plus a %volume sensor, the
ppm sensor’s information appears directly below the H
2
S sensor’s information and
the %volume sensor’s information is directly below the ppm sensor. If a %volume
sensor is not installed in the instrument, the %volume information will not appear.

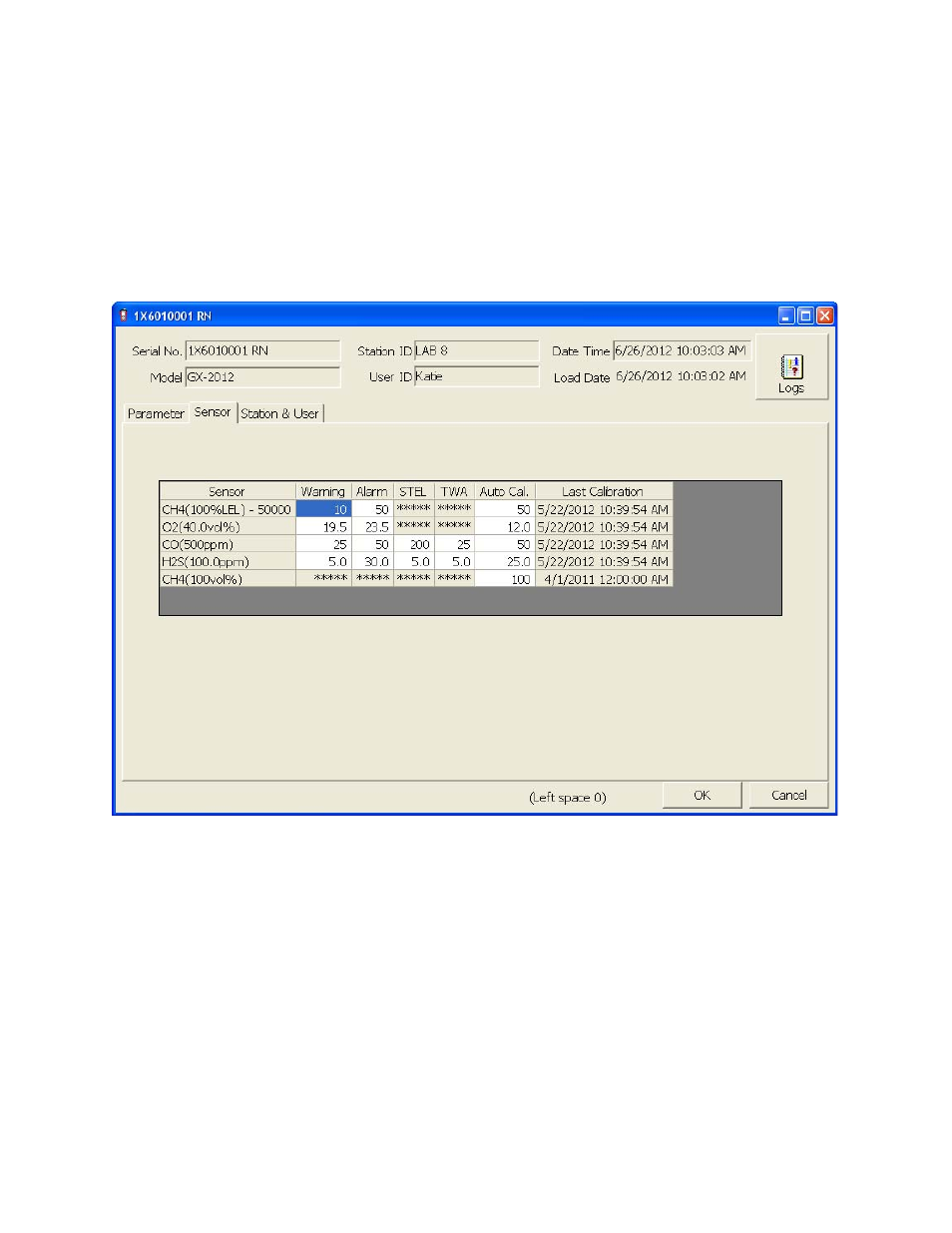

Figure 131: Sensor Tab %Volume GX-2012
