Instrument Function Menu • 166
Any value in a white box can be changed. Values in shaded boxes cannot be
changed. To change a value:
1. Click the box whose value you want to change. The entire box will turn blue.
2. Click the box again and only the value will be highlighted in blue.
3. Type in the new desired value.
4. Repeat steps 1 through 3 for any other values you wish to change and then
click OK.
5. You will be asked if you want to save the changes that you made.
• Select Yes if you wish to save the changes. The PC Controller program will
update the instrument and then return you to the main program window.
• Select No is you do not want to save the changes. The PC Controller
program will return you to the main program window.
• Select Cancel to return to the Sensor Tab and make any additional
changes.

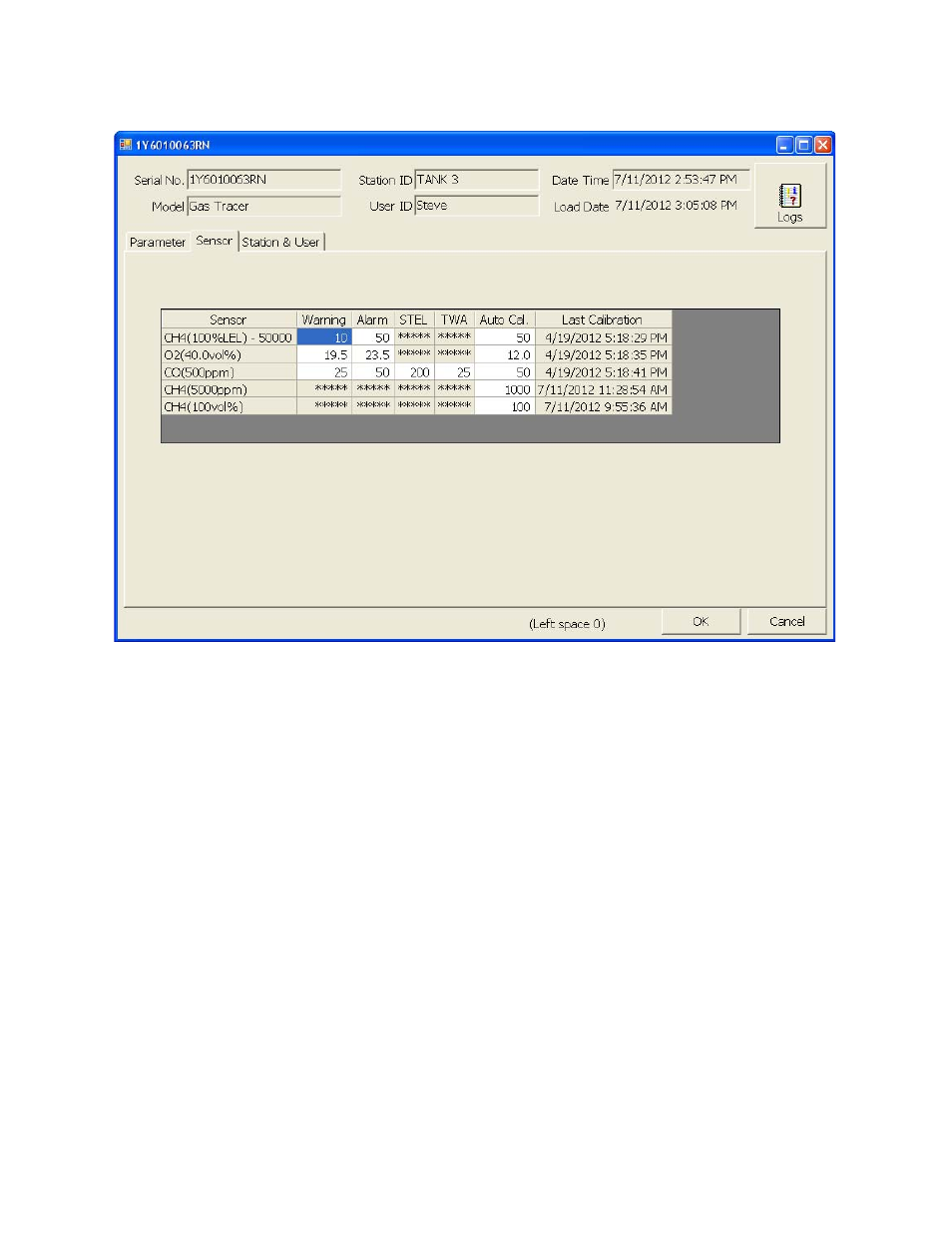

Figure 132: Sensor Tab %Volume Gas Tracer
