Test Track Vehicle for Slip Ring Sensor
Installing the Transducer
5. Attach the hub adapter to the transducer. Hand tighten the bolts
If environmental conditions warrant, coat each fastener with Birchwood
Casey Sheath RB1 rust preventative (or equivalent).
Lubricate the threads and under the heads of all fasteners, using Molykote
g-n paste.
A clearance of approximately 0.05 mm (0.002 in) is required between the
transducer and the hub adapter. You should not have to wedge the wheel into
the rim or the hub adapter into the SWIFT sensor.

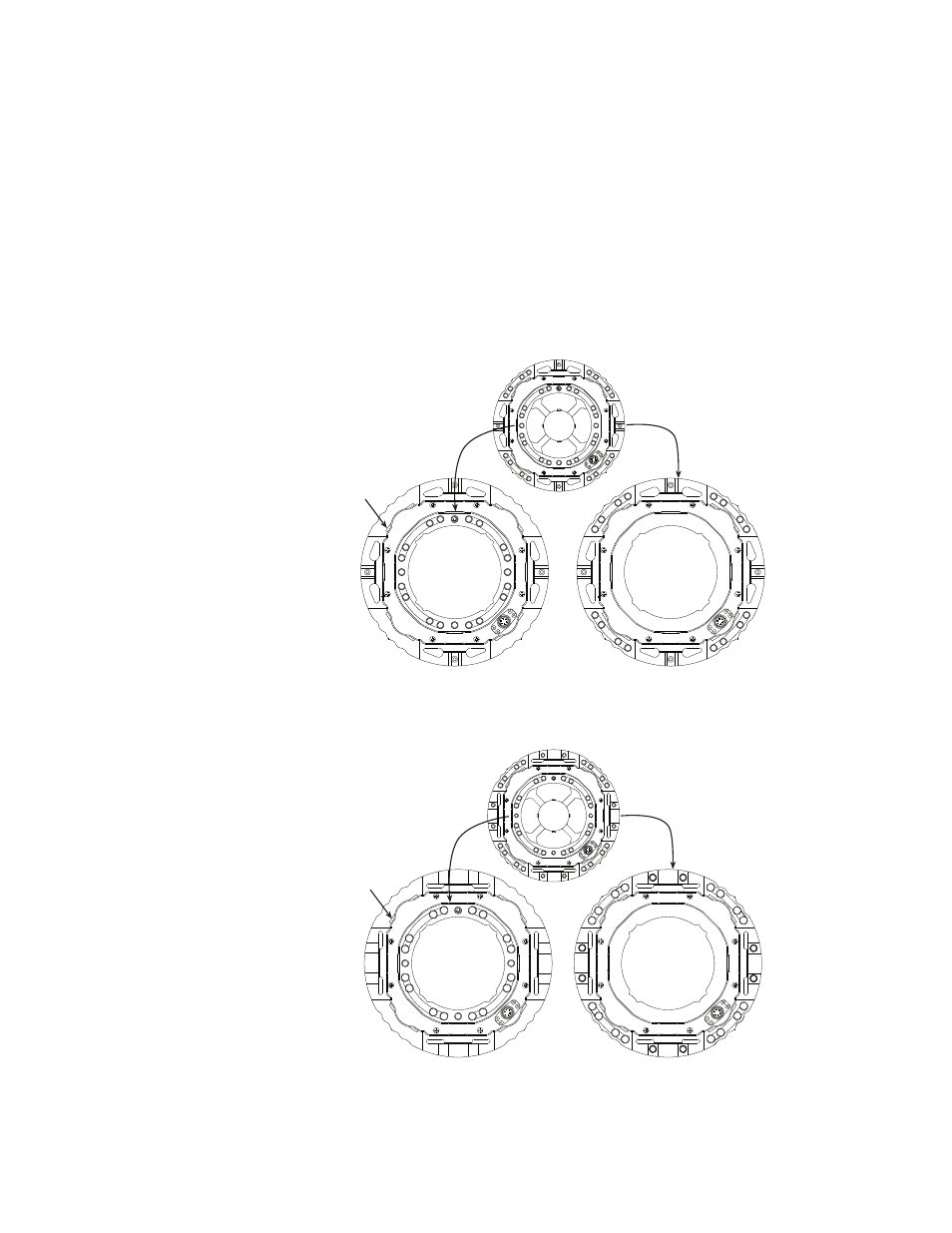

Bolt Torque Sequence
SWIFT 20T
Viewed from Pilot Side
Rim Pilot
Tabs (8)
SWIFT 20A
Viewed from Pilot Side
Rim Pilot
Tabs (8)
S20-16
1
2
3 4
5
6
7
8
9
16
19
10
14 18
15
12
13 17
20
11
1
2
3
5
6
7
8
9
16
19
10 14
18
15 12
13
17
20
11
21
24
23
22
4
Inner Bolt Pattern
All bolts are M8
Outer Bolt Pattern
All bolts are M8
Inner Bolt Pattern
Bolts 1–4 are M8.
Bolts 5–20 are M10
Outer Bolt Pattern
Bolts 1–8 are M8.
Bolts 9–24 are M10
