Induction power source, Induction power source 42 – MTS SWIFT 20 Ultra Sensor User Manual
Page 42
SWIFT 20 Sensors
42
Low-Profile Transducer Interface
Hardware Overview
Induction Power Source
Induction Power Source
Fuses (F1, F2)
Provides circuit protection for up to two systems.
Power indicator
Indicates (green) when power is available to the induction power source.
RF output connector
Provides power for up to two system.
Gain (trim pot)
Allows you to adjust the power gain if the LPwr indicator on the daughter board
if the Low-Profile TI is blinking, indicating the power available to the system is
marginal.
Power switch
Controls power to the induction power source.
Fuse (F3)
Provides circuit protection for the induction power source.
J1 Power
Connects the induction power source to an external 12 V DC source.
Ground terminal
The ground terminal enables you to ground the induction power source.

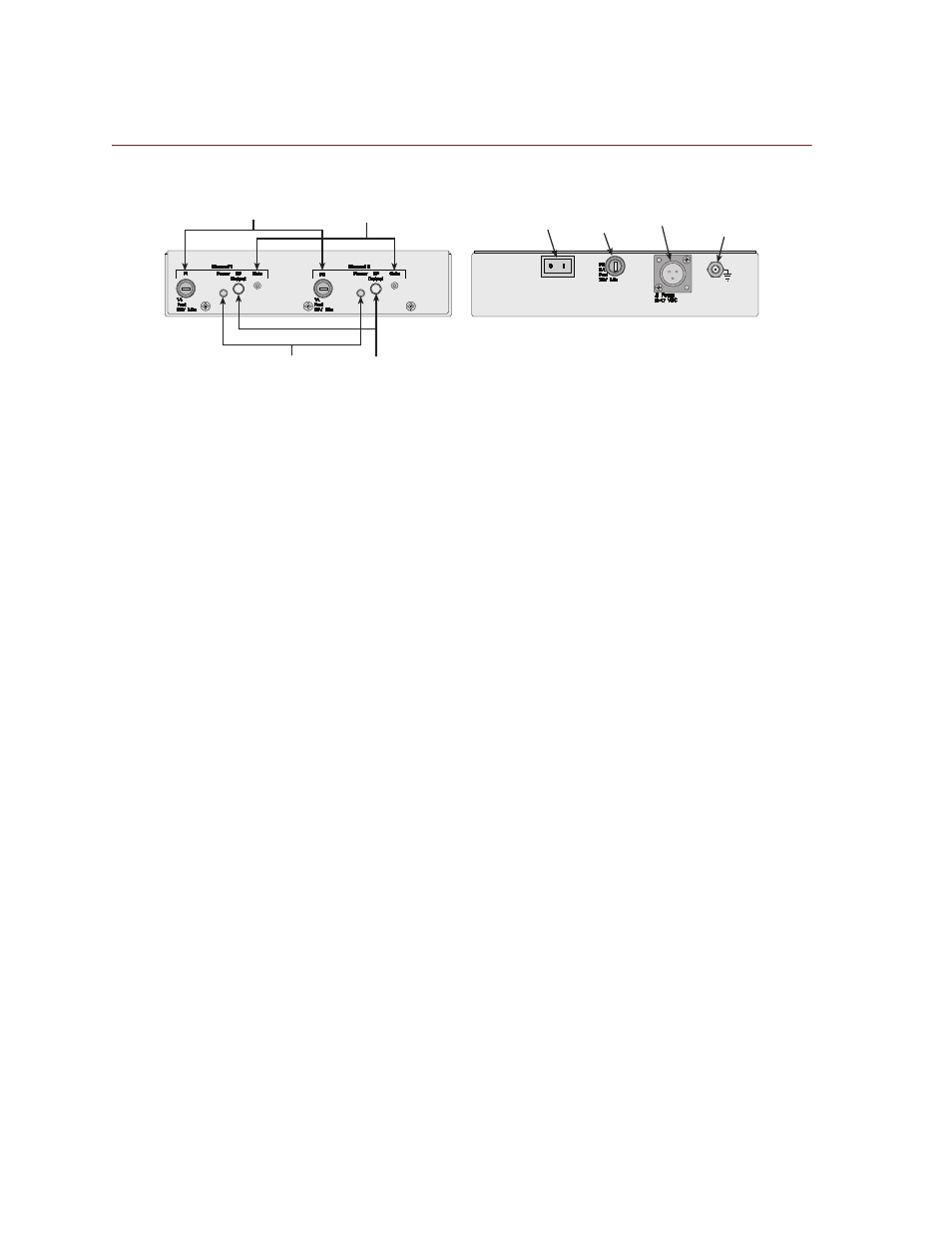

Power
Switch Fuse (F3) J1 Power Ground
Terminal
Fuses (F1, F2)
Power
Indicator
RF Output
Connector
Gain
(trim pot)
S20-32
Front
Rear
