Communication Configurations
SWIFT 20 Sensors Installing the Transducer 107
RS-485 host

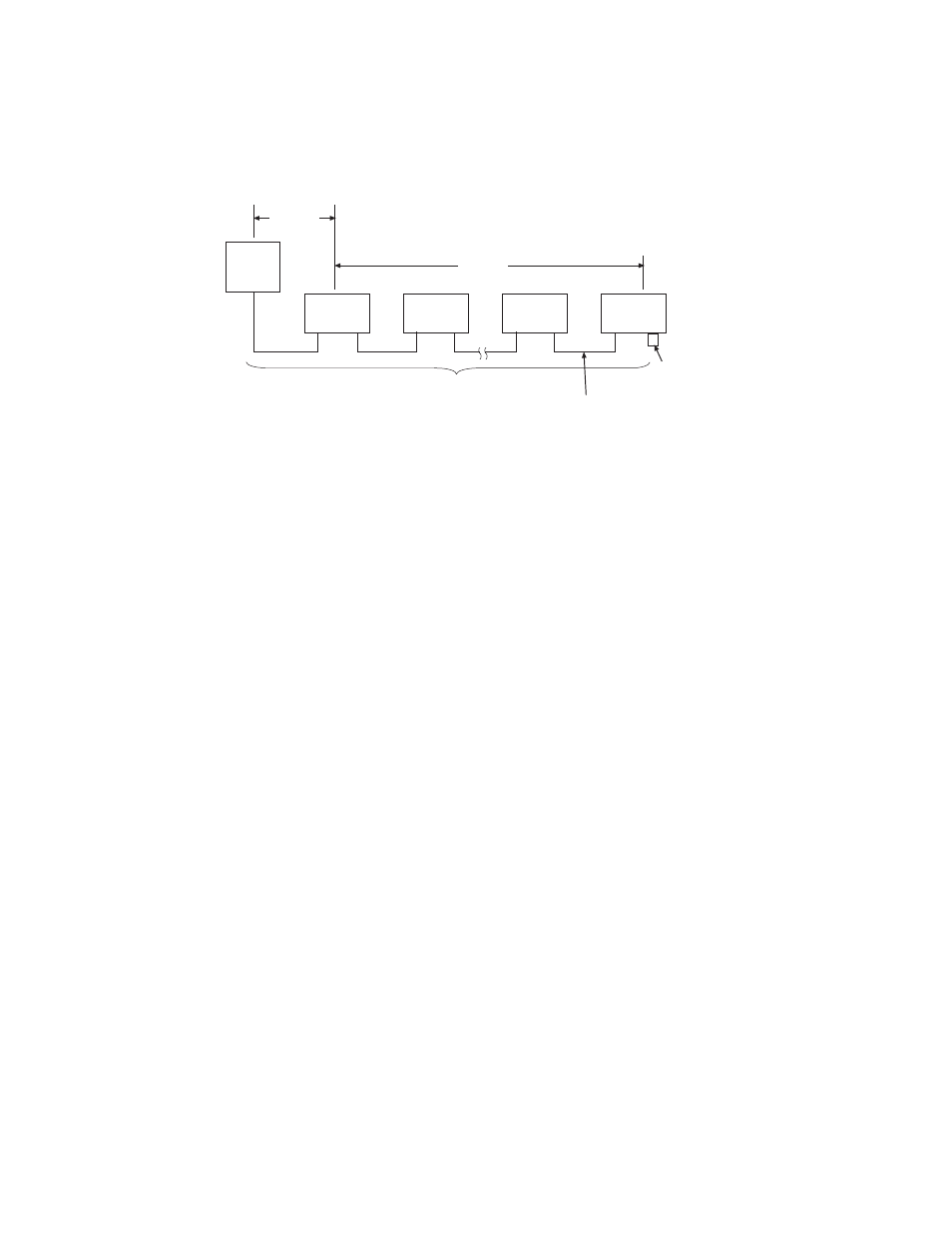

The following figure shows an RS-485 host connected to an RS-485 chain of
SWIFT TIs. This configuration allows up to nine SWIFT TIs on the RS-485
multidrop chain.
Host
RS-485 Chain
(Up to 9 SWIFT TIs)
Last Controller
Terminated with
Jumper Plug
(MTS p/n 510743-01)
J2 J3 J2 J3 J2 J3 J2 J3
Cable
(MTS p/n 510742-XX)
50 ft
maximum
300 ft
maximum
SWIFT TI
Comm
In
Comm
Out
SWIFT TI
Comm
In
Comm
Out
SWIFT TI
Comm
In
Comm
Out
SWIFT TI
Comm
In
Comm
Out
S50-029
