Low-Profile Transducer Interface
SWIFT 20 Sensors
Hardware Overview
43
Low-Profile TI Jumpers
The transducer interface uses circuit board jumpers to establish certain
parameters and make use of various electronic functions. These jumpers are set at
the factory, and should not be reset. The following table is for reference only.

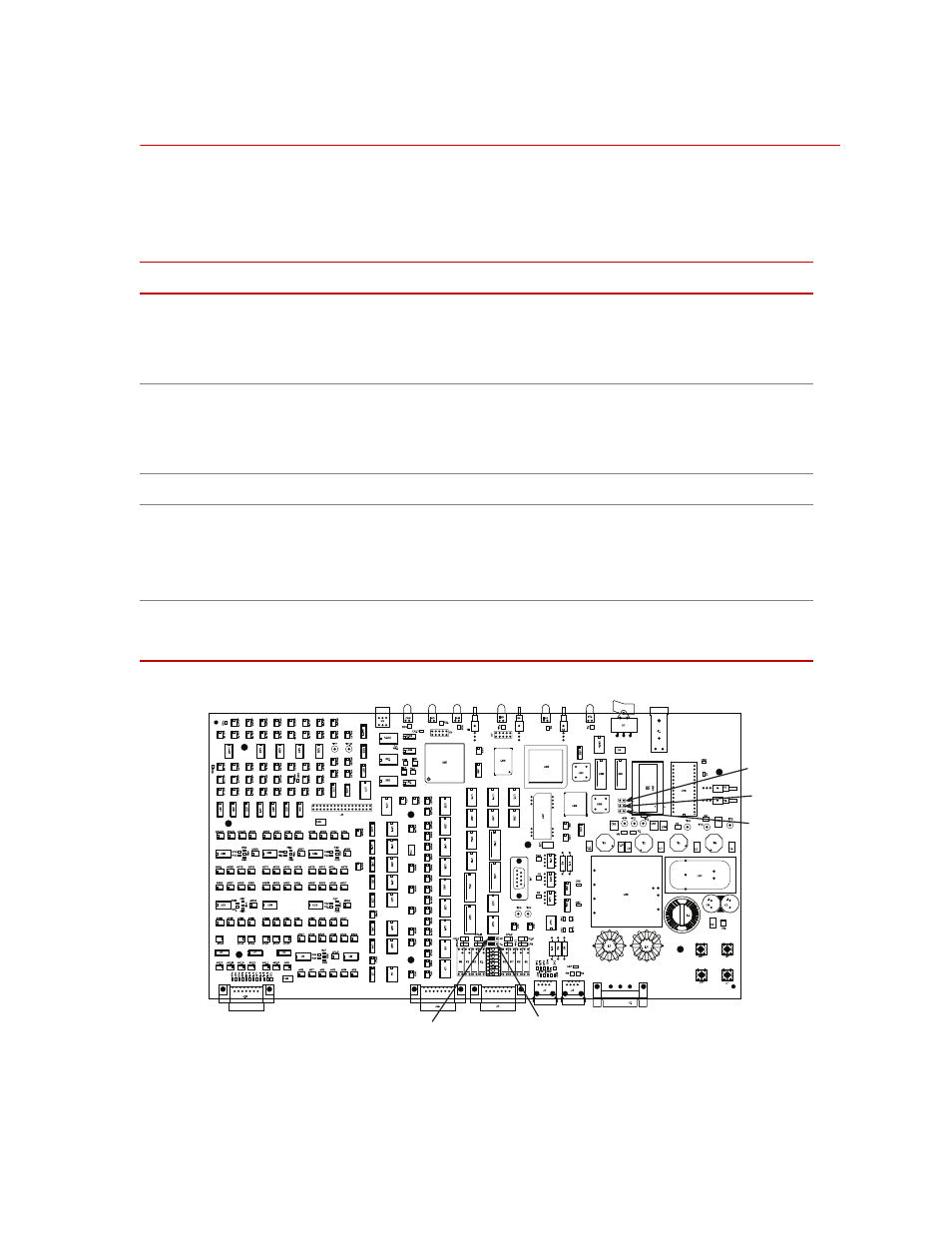

Low-Profile TI PWB Jumper Locations
Jumper
Setting
Function
X1
1–2
2–3
Excitation setup for shunts FX1, FY1, FY4, and FZ2.
Sets up – (minus) excitation for shunts FX1, FY1, FY4, and FZ2.
Sets up + (plus) excitation for shunts FX1, FY1, FY4, and FZ2.
X2
1–2
2–3
Excitation setup for shunts FX2, FY2, FY43 and FZ1.
Sets up – (minus) excitation for shunts FX2, FY2, FY43 and FZ1.
Sets up + (plus) excitation for shunts FX2, FY2, FY43 and FZ1.
X4
removed
Not used for Low-Profile TI applications (Standard setting).
X5
installed
removed
Enables the ability to download new code to the block of FLASH RAM
where the boot code is stored.
Disables the ability to download new code to the block of FLASH RAM
where the boot code is stored (Standard setting).
X6
installed
removed
Boots to the FLASH memory down-loader.
Boots to the Transducer Interface software (Standard setting).
X2
X1
X4
X5
X6
S20-13
