Wiring of the standard device
Control terminals
Device variant with "Safe torque off" function
5
5.8
5.8.4
l
5.8−6 EDSVF9333V EN 6.2−04/2012
Internal voltage supply
ƒ If a freely assignable digital output (e.g. X5/A1) is assigned
permanently to HIGH level, it serves as an internal voltage source. Every
output has a maximum load capacity of 50 mA.
– The relay K
SR
and two digital inputs (X5/28 and e.g. X5/E1) can be
supplied with voltage via a digital output.
– Two digital outputs must be connected in parallel and assigned
permanently to HIGH level in order to obtain the maximum wiring
(relays K
SR
and X5/E1 ... X5/E5, X5/ST1).
ƒ For the supply of the analog inputs (X6/1, X6/2 and X6/3, X6/4) you
have to set a freely assignable analog output (e. g. X6/63) permanently
to HIGH level.
GND2 +24V +5 V
DIGOUT4
E5 A2 A3 A4 ST1ST2 59 39
3k 47k
50mA 50mA 50mA 50mA
X5 28 E1 E2 E3 E4
3k 3k 3k 3k 3k
X11 K31 K32 33 34
S1 S2
IN1 IN2 IN3 IN4
+
K
SR
A1
Z1
X3
GND1 GND1
X6 1 2 3 4 7 7 62 63
242R
1
2
3
4
5
6
100k 100k 100k 100k
3.3nF
AIN1 AIN2
AOUTx
AOUT2
AOUT1
1 3 2 4 7
10k 10k
9300vec135

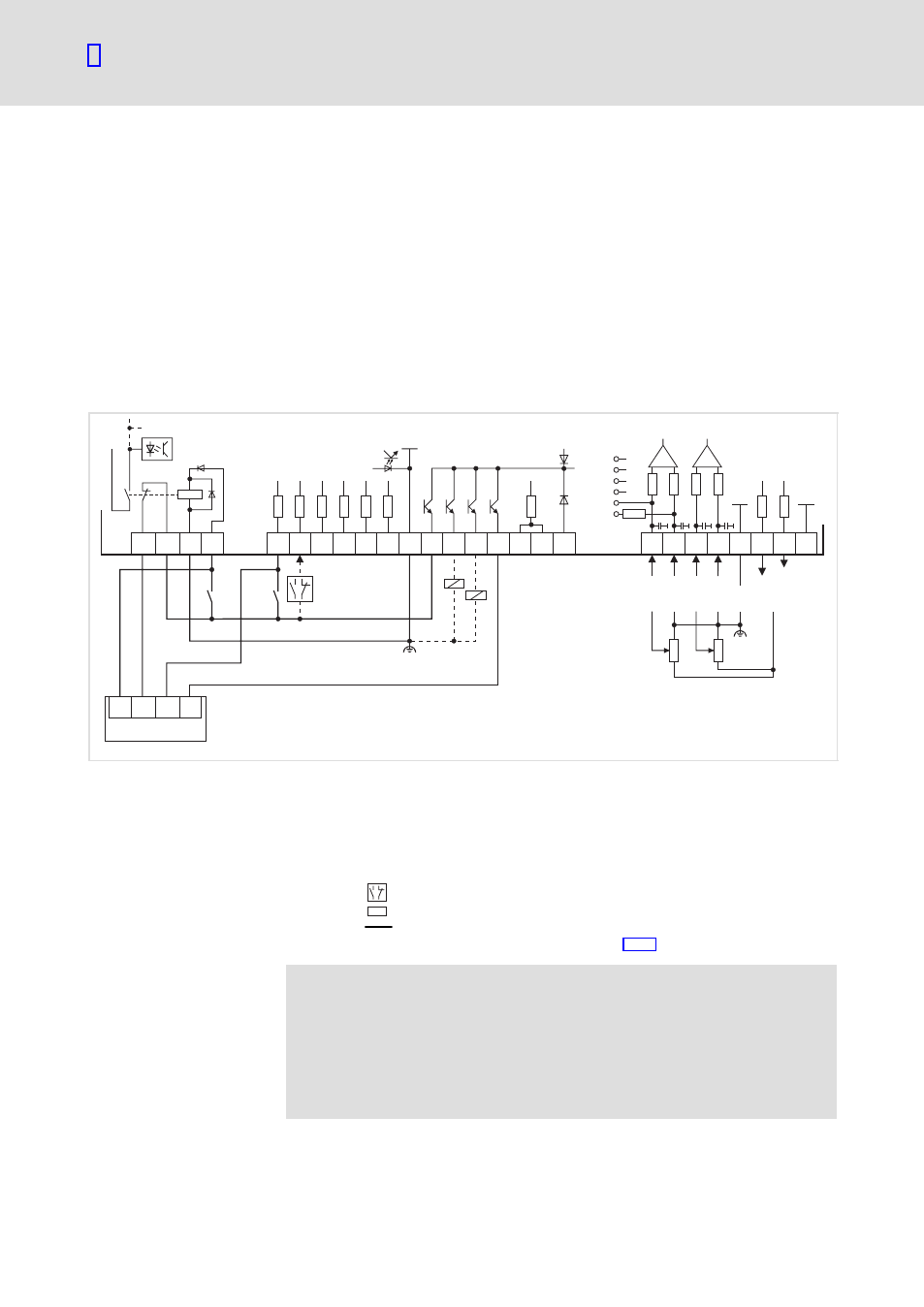

Fig. 5.8−5 Wiring of digital and analog inputs/outputs with active "Safe torque off" function
and internal voltage source
S1 Deactivate pulse inhibit (1st disconnecting path)
S2 Enable controller (2nd disconnecting path)
Z1 Programmable logic controller (PLC)
The PLC monitors the ˜Safe torque off˜ function
X5/A4 Feedback via a digital output (e. g. DIGOUT4)
NO contact or NC contact
Z Load
Minimum wiring required for operation
Terminal assignment in the Lenze setting: ^ 5.8−8
)
Note!
If you load a basic configuration C0005 = xx1x (e.g. 1010 for
speed control with control via terminals), the following terminals
are switched to a fixed signal level:
ƒ Terminal X5/A1 to FIXED1 (corresponds to DC 24 V).
ƒ Terminal X6/63 to FIXED100% (corresponds to 10 V).
