Installing of the standard device
Standard devices in the power range 75 ... 90 kW
Mounting with fixing brackets (standard)
4
4.5
4.5.2
l
4.5−2 EDSVF9333V EN 6.2−04/2012
4.5.2 Mounting with fixing brackets (standard)
Mounting material required from the scope of supply:
Description Use Quantity
Fixing bracket Drive controller fixing 4
Hexagon head cap screw
M8 × 16 mm (DIN 933) For fixing bracket 8
Washer Æ 8.4 mm (DIN 125) For hexagon head cap screw 8
Spring washer Æ 8 mm (DIN 127) For hexagon head cap screw 8
Dimensions
a
c1 e
b1
d
d1
b
l
c
³ 50mm ³ 50mm
g
m
k
0
³ 100mm
³ 100mm
9300vec134

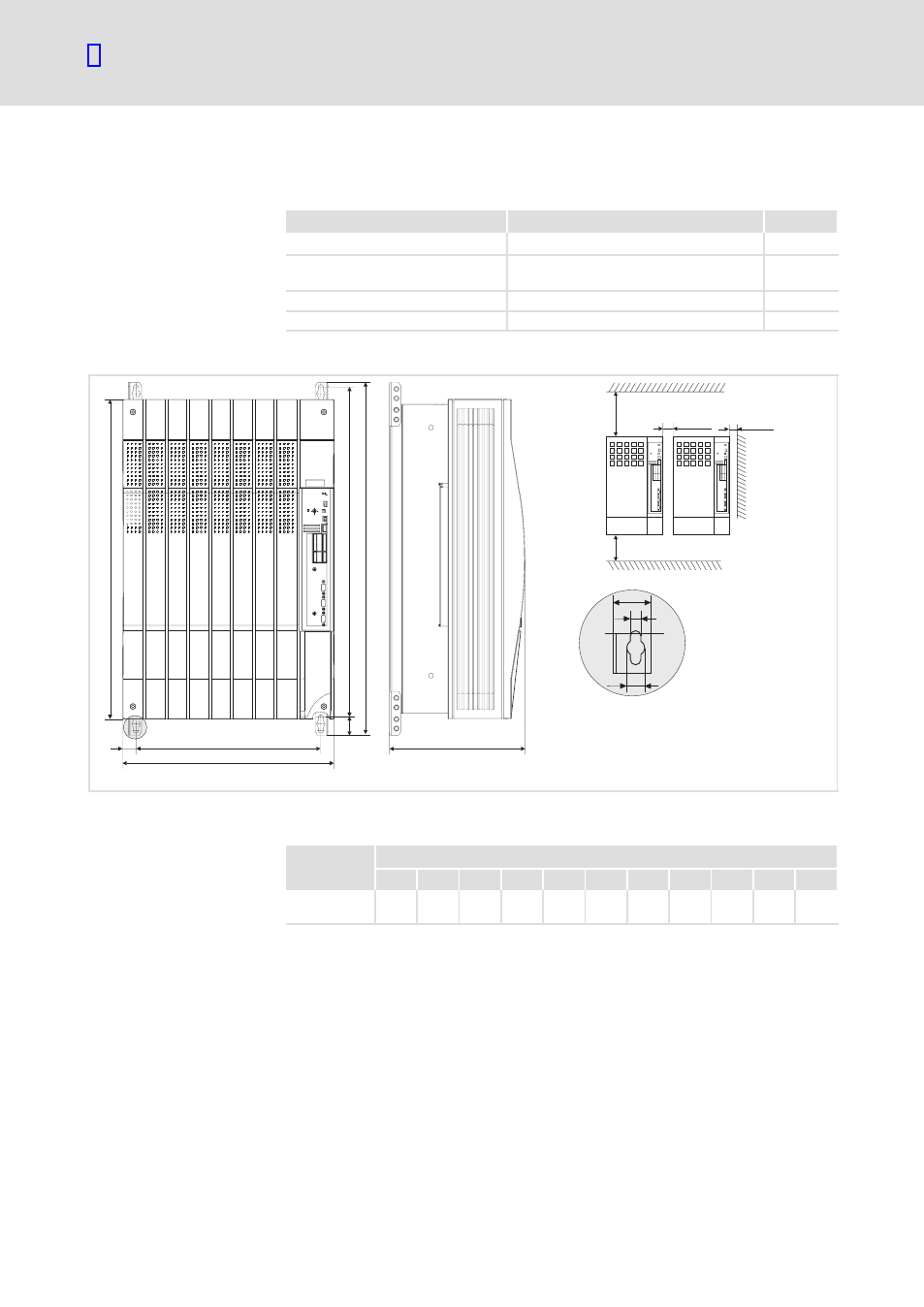

Fig. 4.5−1 Standard mounting with fixing brackets 75 ... 90 kW
0 Drive controllers can be mounted side by side without spacing
9300 vector Dimensions [mm]
Type a b b1 c c1 d d1 e 1) g k m
EVF9332−EV
EVF9333−EV
450 750 680 28.5 393 702 38 285 11 28 18
1) For a fieldbus module plugged onto X1, consider mounting space for connecting cables
ƒ Attach the fixing brackets to the heatsink plate of the drive controller. Mounting
