Installing of the standard device
Standard devices in the power range of 55 kW
Thermally separated mounting (push−through technique)
4
4.4
4.4.3
l
4.4−3 EDSVF9333V EN 6.2−04/2012
4.4.3 Thermally separated mounting (push−through technique)
For mounting in push−through technique, the drive controller of type
EVF93xx−EV must be used. In addition, the mounting set EJ0010 for
push−through technique is required.
ƒ For thermally separated mounting you have to modify the fan module.
(
¶ 4.4−4)
d
2
d
2
d
2
d b
g
e2 a
d
1
h
h
e3
c2
c3
c4
e
e1
L
a1
d
3
b
1
c1
9300vec174

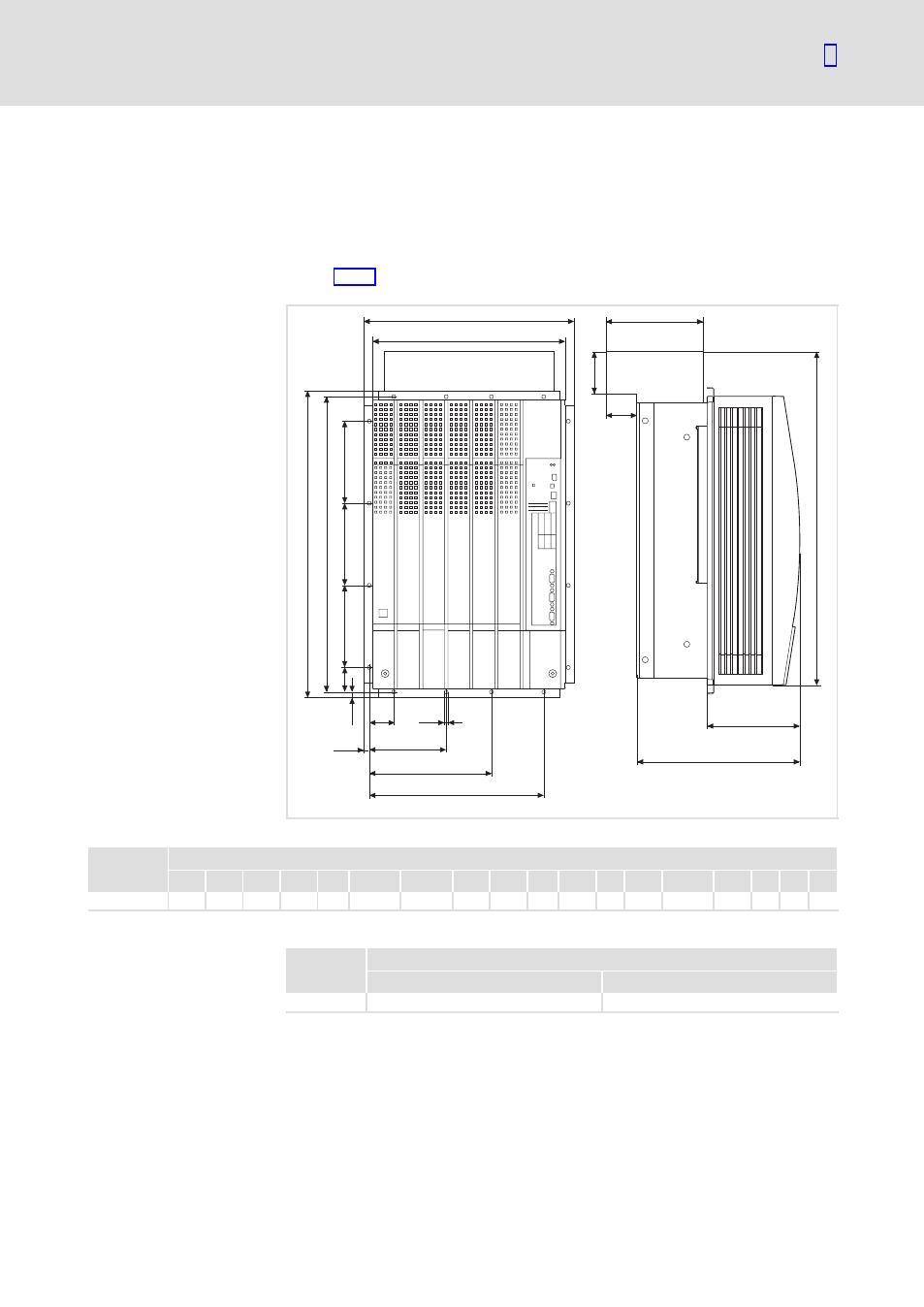

Fig. 4.4−2 Dimensions for thermally separated mounting 55 kW
9300 vector Dimensions [mm]
Type a a1 b b1 c1 c2 c3 c4 d d1 d2 d3 e 1) e1 e2 e3 g h
EVF9331−EV 373 340 543 591 45 137.5 217.5 310 525 45 145 81 285 163.5 185 66 7 9
1) For a fieldbus module plugged onto X1, consider mounting space for connecting cables
9300 vector Dimensions [mm]
Type Width Height
EVF9331−EV 320 515
Dimensions
Mounting cutout in control
cabinet
