Installing of the standard device
Standard devices with a power of 45 kW
Thermally separated mounting (push−through technique)
4
4.3
4.3.3
l
4.3−3 EDSVF9333V EN 6.2−04/2012
4.3.3 Thermally separated mounting (push−through technique)
For mounting in push−through technique, the drive controller of type
EVF93xx−EV must be used. In addition, the mounting set EJ0010 for
push−through technique is required.
d2
d2
d2
d b
g
a1
a
d1
b1
h
h
c1
c2
c3
c4
e
e1
L
9300vec117

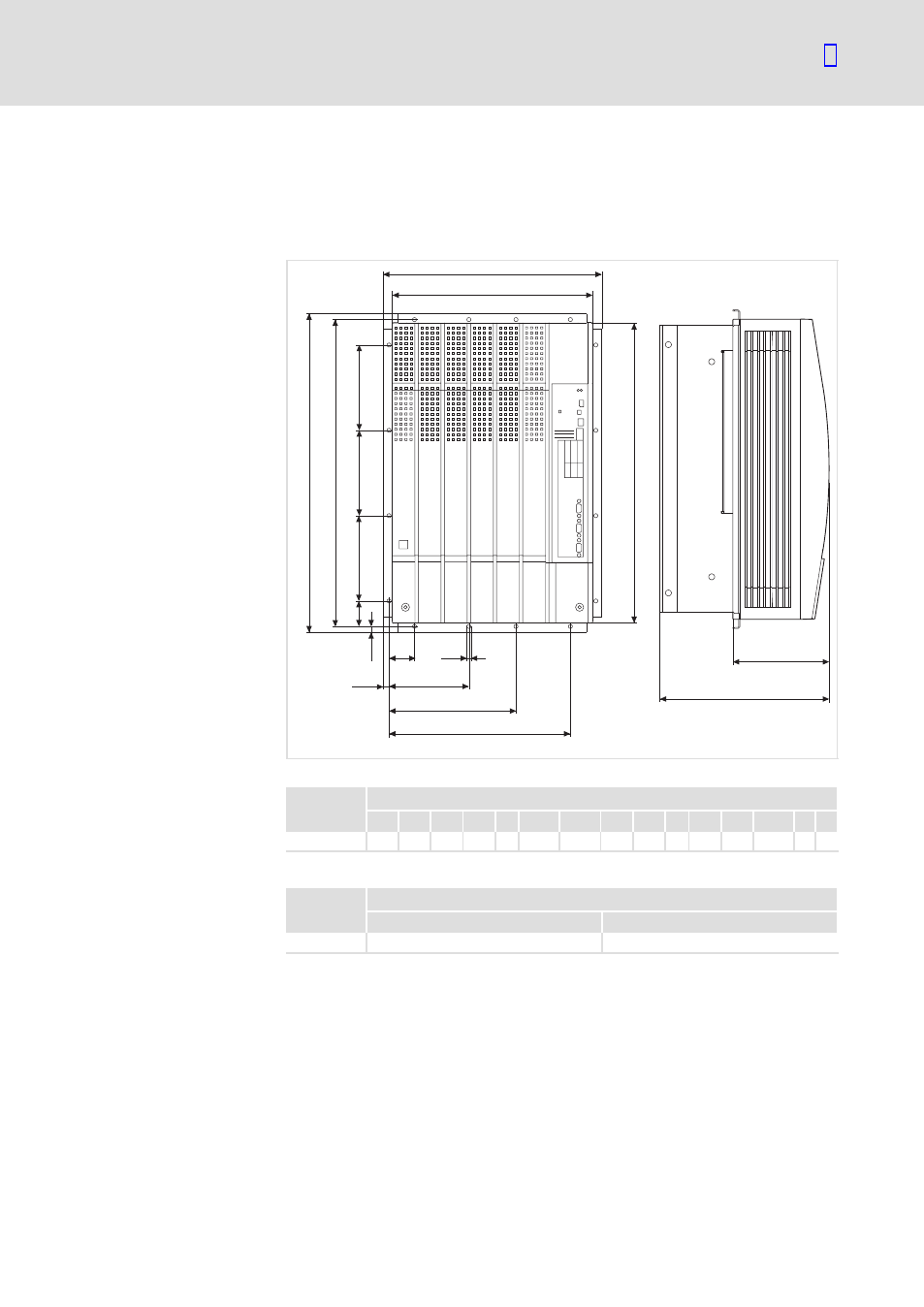

Fig. 4.3−2 Dimensions for thermally separated mounting 45 kW
9300 vector Dimensions [mm]
Type a a1 b b1 c1 c2 c3 c4 d d1 d2 e 1) e1 g h
EVF9330−EV 373 340 543 510 45 137.5 217.5 310 525 45 145 285 163.5 7 9
1) For a fieldbus module plugged onto X1, consider mounting space for connecting cables
9300 vector Dimensions [mm]
Type Width Height
EVF9330−EV 320 492
Dimensions
Mounting cutout in control
cabinet
