Installing of the standard device
Standard devices in the power range 0.37 ... 11 kW
Thermally separated mounting (push−through technique)
4
4.1
4.1.3
l
4.1−3 EDSVF9333V EN 6.2−04/2012
4.1.3 Thermally separated mounting (push−through technique)
For mounting in push−through technique, the drive controller of type
EVF93xx−EV must be used. In addition, the mounting set for push−through
technique is required.
Type Mounting set Type Mounting set
EVF9321−EV,
EVF9322−EV EJ0036
EVF9323−EV,
EVF9324−EV EJ0037 EVF9325−EV,
EVF9326−EV EJ0038
a1 a1
c1 c1
a a
c c
g g
d1 d1
d1 d1
d d b1 b1 b b
L L
1 0
e
f
9300vec115

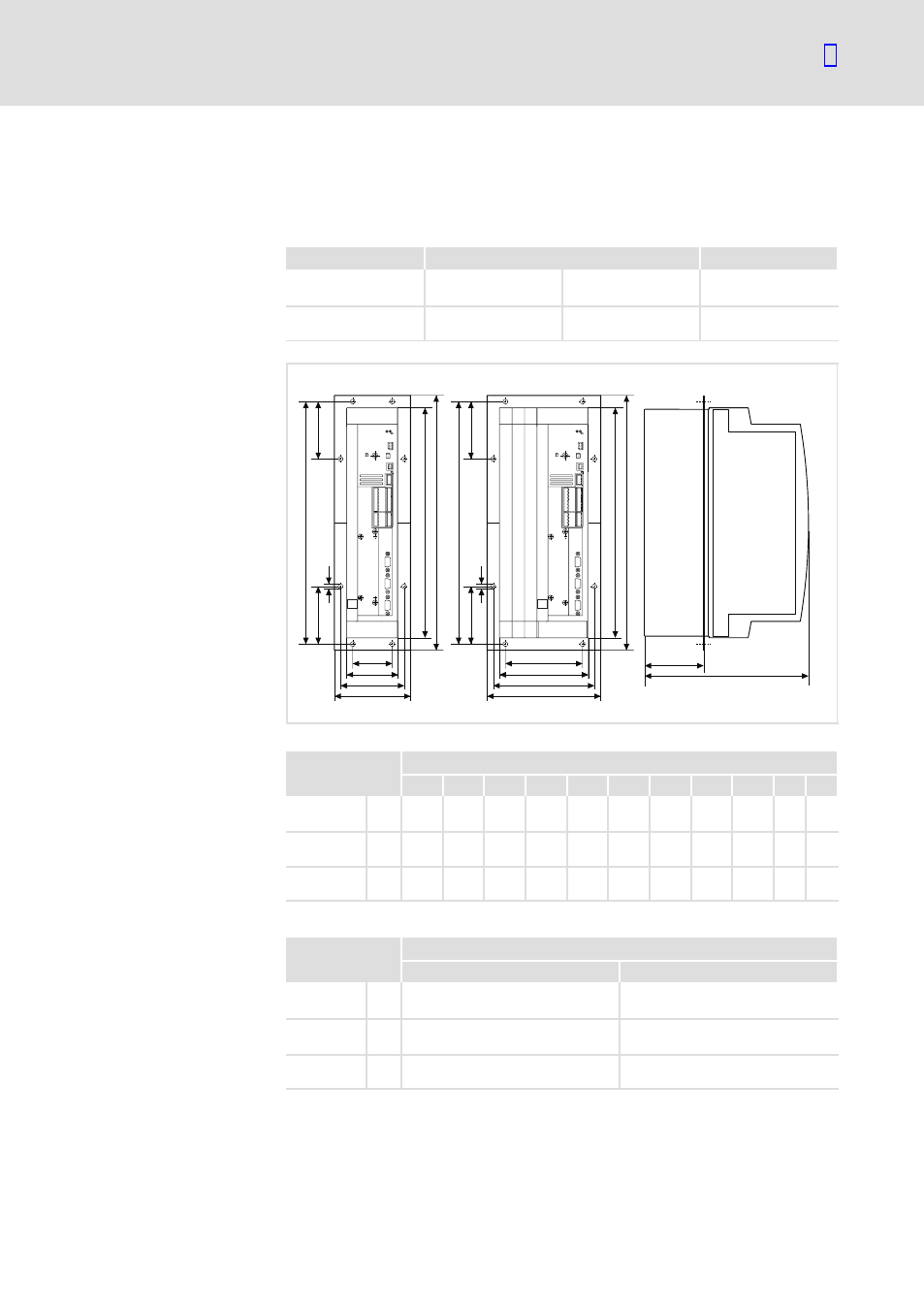

Fig. 4.1−2 Dimensions for thermally separated mounting 0.37 ... 11 kW
9300 vector Dimensions [mm]
Type a a1 b b1 c c1 d d1 e 1) f g
EVF9321−EV
EVF9322−EV
0 112.5 78 385.5 350 60 95.5 365.5 105.5 250 92 6.5
EVF9323−EV
EVF9324−EV
0 131.5 97 385.5 350 79 114.5 365.5 105.5 250 92 6.5
EVF9325−EV
EVF9326−EV
1 169.5 135 385.5 350 117 152.5 365.5 105.5 250 92 6.5
1) For a fieldbus module plugged onto X1, consider mounting space for connecting cables
9300 vector Dimensions [mm]
Type Width Height
EVF9321−EV
EVF9322−EV
0 82 350
EVF9323−EV
EVF9324−EV
0 101 350
EVF9325−EV
EVF9326−EV
1 139 350
Dimensions
Mounting cutout in control
cabinet
