6.8.1 V/f characteristic control
The output voltage of the controller follows a defined characteristic. At low
output frequencies, the characteristic can be boosted. It can be adapted to
different load profiles.
ƒ Linear characteristic for drives with constant load torque over the
speed.
ƒ Quadratic characteristic for drives with quadratic load torque over the
speed:
– Quadratic V/f characteristics are preferably used in centrifugal pump
and fan drives. However, it must be checked whether your pump or
fan drive can be operated in this operating mode!
– If your pump or fan drive cannot be used for the operation with a
quadratic V/f characteristic, the linear V/f characteristic or vector
control mode must be used.
0 1
0
C0089
C0090
100 %
N
n
n
U min
U
out
0 1
0
C0089
C0090
100 %
N
n
n
U min
U
out
9300vec085 9300vec086

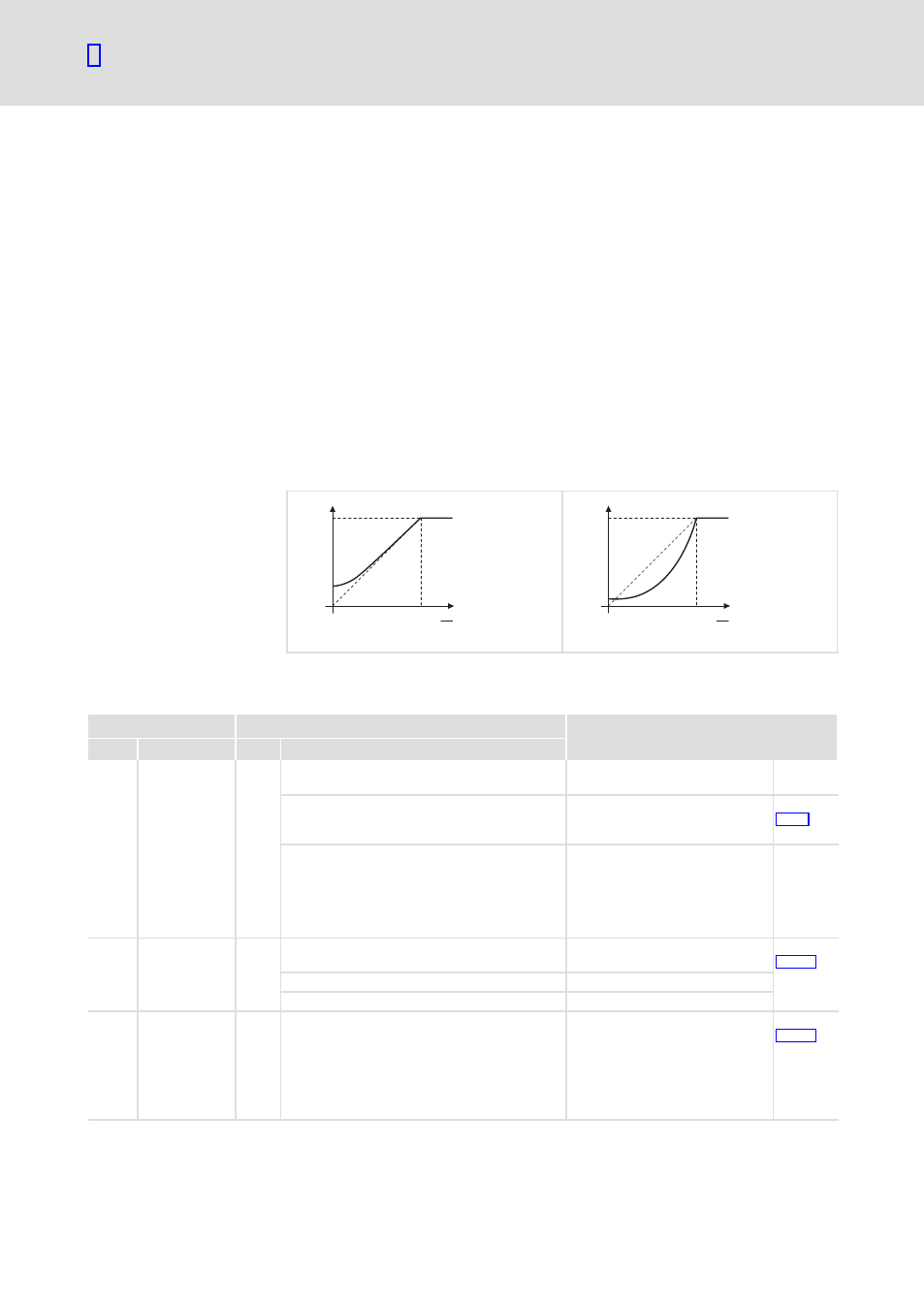

Fig. 6.8−3 Linear and square−law V/f characteristic
Codes for parameter setting
Code Possible settings IMPORTANT
No. Name Lenze Selection
C0006
s
Op mode 5 Selection of the operating mode
for the motor control
1 vector ctrl Vector control
without or with
speed feedback In case of the first selection enter
the motor data and identify them
with C0148. ^
6.8−8
5 V / f V/f characteristic
control Commissioning without
identification of the motor data is
possible
l Advantage of identification
with C0148: Improved smooth
running at low speeds
^
6.8−4
C0014 V/f charact. 0 Characteristic in the V/f
characteristic control mode
^
8.2−25
0 Linear Linear V/f characteristic
1 square Square V/f characteristic
C0015 Rated freq 50 10 {1 Hz} 5000 V/f−rated frequency
In C0015 you can set a base
frequency which differs from the
rated motor frequency (C0089)
l Lenze setting: C0015 = C0089
l Changing C0086 or C0089
overwrites the value in C0015
^
8.2−25
Description
