3. Installation
3.1. Installation
You can integrate the 2130IB bus interface module into the controllers
of the 4900, 8600, 9200 series.
It is also possible to use it together with the Lenze automation module
for positioning (2211PP) and winding applications (2211WP).
If you purchase the bus interface module separately, you will need an
installation kit.
Name Service no. Explanation
Installation kit 8600-
4900/2130IB 33.4900_N.V013 Installation kit for the 8600 and 4900
series
Installation kit 9200/2130IB 33.9200_N.V008 Installation kit for the 9200 series
Assembly instructions are included in the installation kits.
Further installation kits for the controllers of the 9200 series can be
obtained on request.
3.2. Wiring
3.2.1. 2130IB.V001 (RS485)
Communication media RS485 (2-wire)
Network topology Line
Number of controllers 31 without repeater. With repeater
max.126.
Maximum cable length 1200 m (depending on the desired baud
rate and cable type. See following cable
specification)
Maximum baud rate 1500 kBaud

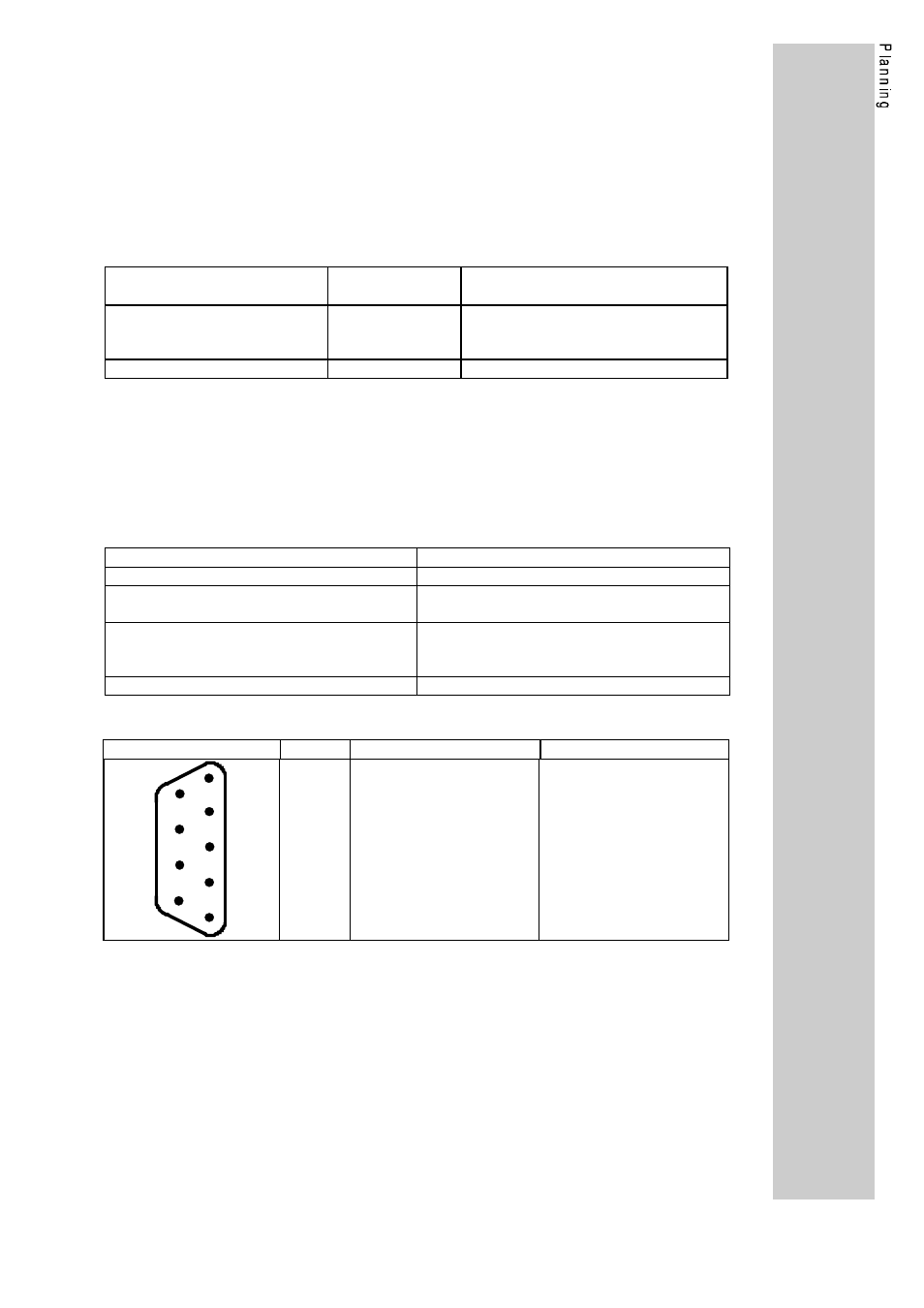

X12 Socket 9-pole SubD (RS485)
View Pin no. Signal name Name
1
2
3
4
5
6
7
9
8
1
2
3
4
5
6
7
8
9 PE
−
RxD / TxD-P
RTS
M5V2
P5V2
−
RxD / TxD-N
− Protective earth
−
Data line B
Request To Send
Data reference potential
Supply plus
−
Data line A
−
