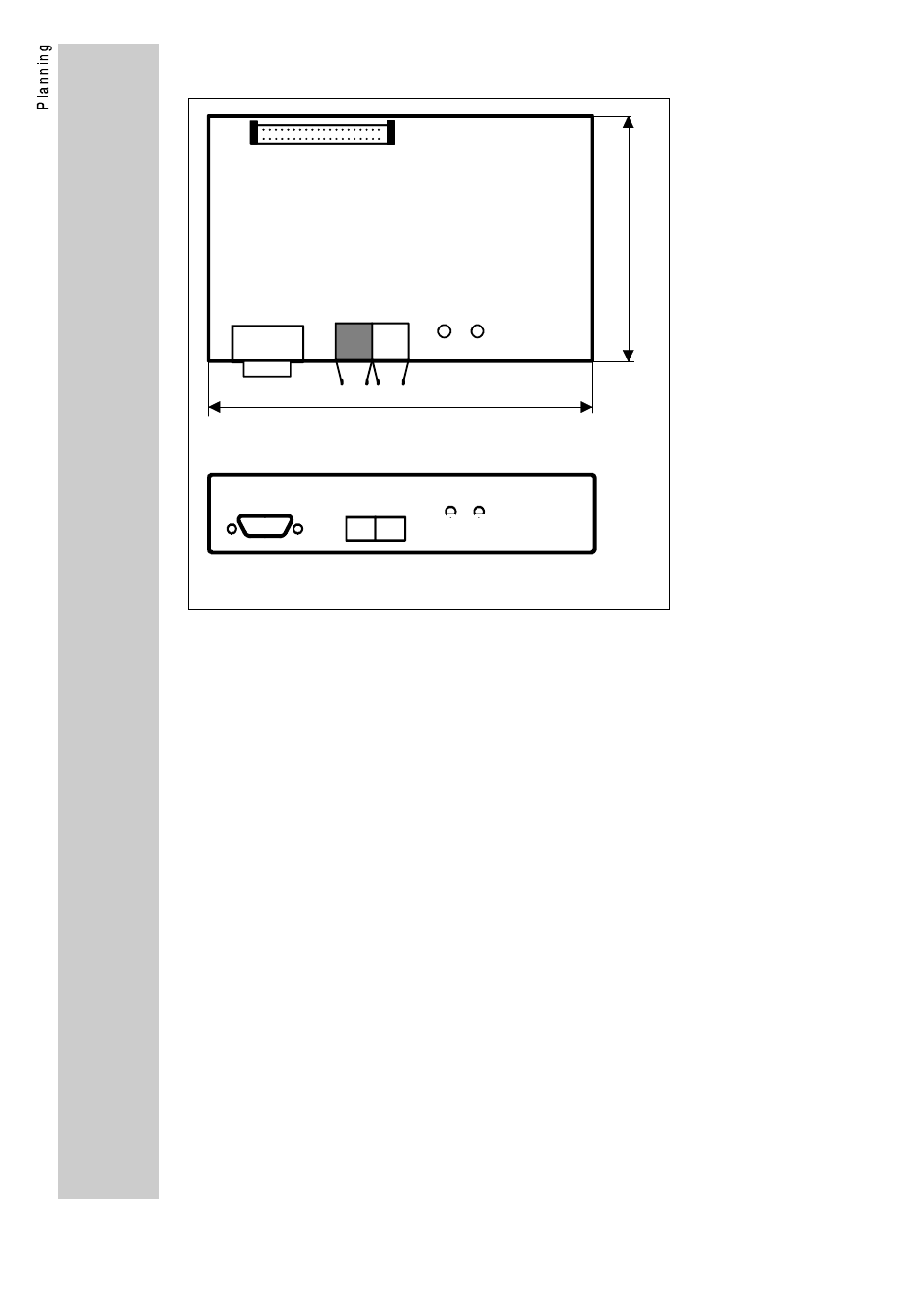

2.3. Dimensions of the 2130IB board
Connections of 2130IB
X12 X13
V1 V2
View of 2130IB with front plate
Explanations:
X4 Automation interface
34-pole plug connector for the
connection with the control board of
the controller
X12 RS485 bus connection
9-pole SubD socket
(only 2130IB.V001)
X13-W30 OFC receiver
(only 2130IB.V002)
X13-W31 OFC transmitter
(only 2130IB.V002)
V1 (LED green) supply 2130
OFF: Module has no supply voltage.
The controller is switched off or the
connection to the controller is
interrupted (X4).
ON: Module has supply voltage.
V2 (LED yellow) Communication
2130
OFF: No supply or 2130 and controller is
not initialized.
ON: Module 2130 and base device are
initialized but there is no
PROFIBUS communication.
FAST FLASHING: (4 times per sec.)
PROFIBUS-DP communication
with user data
SLOW FLASHING: (once per sec.)
PROFIBUS-FMS communication
is established
