DFX-8
Ultrasonic Thickness Gauge
35
The Wheel Keys are used to navigate through the menus, increase/decrease values,
and toggle specific function keys.

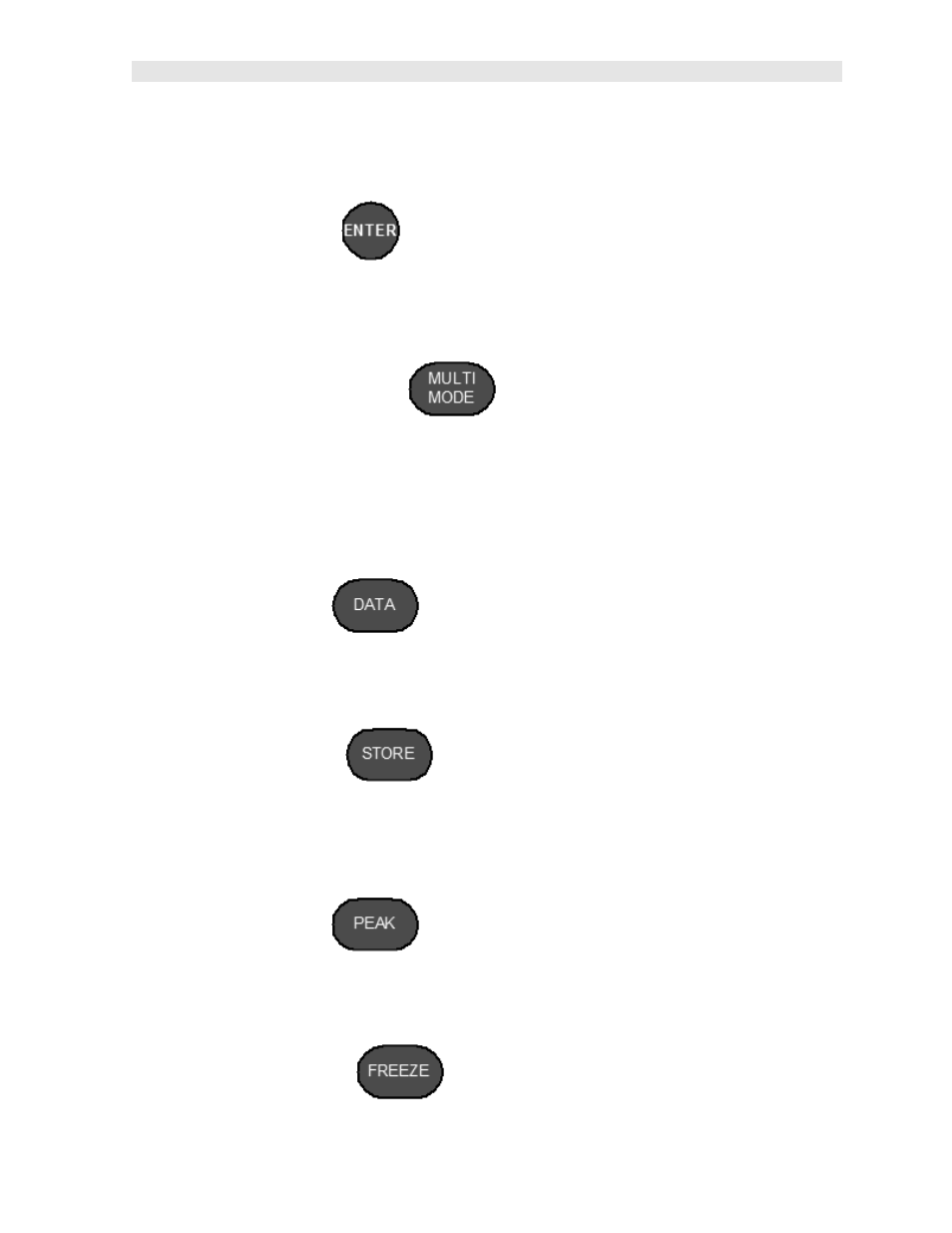

3.18 ENTER key
The ENTER key is used in the overall menu selection process, to activate list and
edit boxes, display and save measurements to grid or sequential files locations.
3.19 MULTI MODE Key
The MULTI MODE key opens a measurement mode screen, listing all the modes that
are available to the transducer specifically selected, or auto detected. The modes
can be all or a combination of the entire set of modes the DFX-8 offers, depending on
which transducer is being used as follows: Coating Off (P-E), Coating On (PECT),
Temp Comp (PETP), Thru Coat (E-E), Thru Coat Verify (E-EV), and Coating Only
(CT).
3.20 DATA Key
The DATA key opens the tabbed data menu, allowing a user to efficiently create a
new log/grid file for storage.
3.21 STORE Key
The STORE key displays the current log/grid opened in split screen mode. If no
log/grid file is open, the STORE key will open the tabbed data menu in order create a
new, or open an existing log/grid file for storage.
3.22 PEAK Key
The PEAK key is a feature used in the flaw detector portion of the DFX-8, and is not
used in the thickness gauge.
3.23 FREEZE Key
