8) Finally, press the MEAS key to return to the measurement screen and begin
taking readings.
10.15 Freeze & Capture
The DFX-8 freeze feature enables a user to immediately freeze what’s currently
being displayed on the screen for further review or analysis. The freeze feature used
in conjunction with the capture feature enables a user to save the entire screen shot
directly to a .tif (tagged image) file format that can be opened using any graphics
viewer. With the storage capacity of the DFX-8, and additional external SD card
reader, the user can store as many screens shots as needed. It should also be
mentioned that this feature is immediately activated on boot up, therefore all the
menus items, list boxes and edit screens can also be captured for presentation or
training purposes. The procedure to freeze and capture the display is outlined below:
Capturing Screen Shots
5) Press the MENU key once to activate the menu items tab. Press the MENU
key multiple times to tab right and the ESC key multiple times to tab left until
the XFER menu is highlighted and displaying the submenu items.
Alternatively, press the LEFT and RIGHT arrow keys multiple times
using the left button wheel.

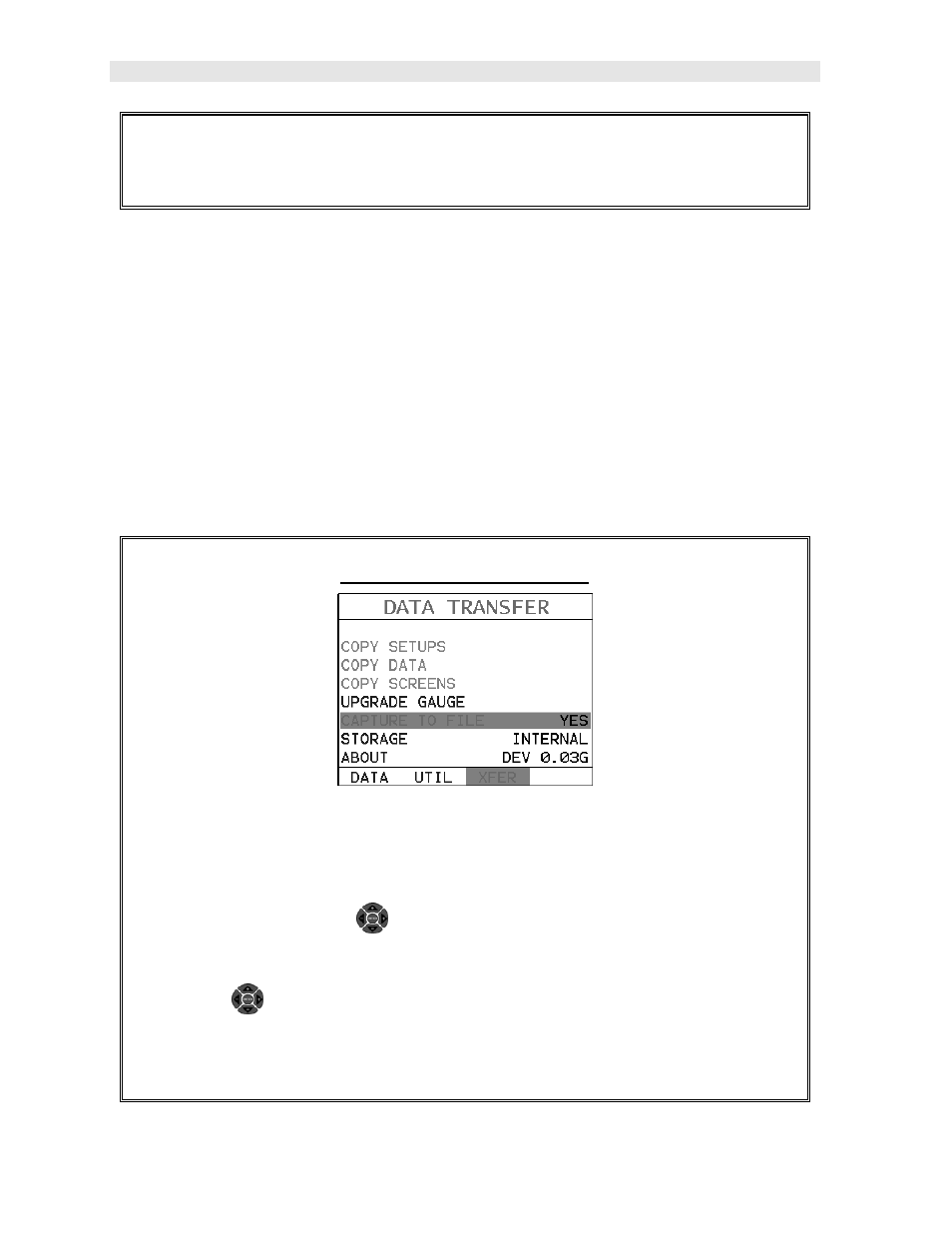

6) Use the UP and DOWN arrow keys multiple times using the left button
wheel to scroll through the sub menu items until CAPTURE TO FILE is
highlighted.
