Hardware features
1
The following optic modules versions are available from Brocade:
• Short wavelength (86 – 300 meters) – Brocade part number 10G-XFP-SR
• Long wavelength (10 kilometers) – Brocade part number 10G-XFP-LR
• Extra long wavelength (40 kilometers) – Brocade part number 10G-XFP-ER
16-port 10 Gigabit Ethernet oversubscribed module
The 16 x 10GE oversubscribed module for the BigIron RX plugs into any port slot of the switch and
is compatible with all previous generations of card on that switch. It provides interfaces to 16 X
10GE ports.
Figure 6 shows the 16-port 10 Gigabit Ethernet module’s front panel.

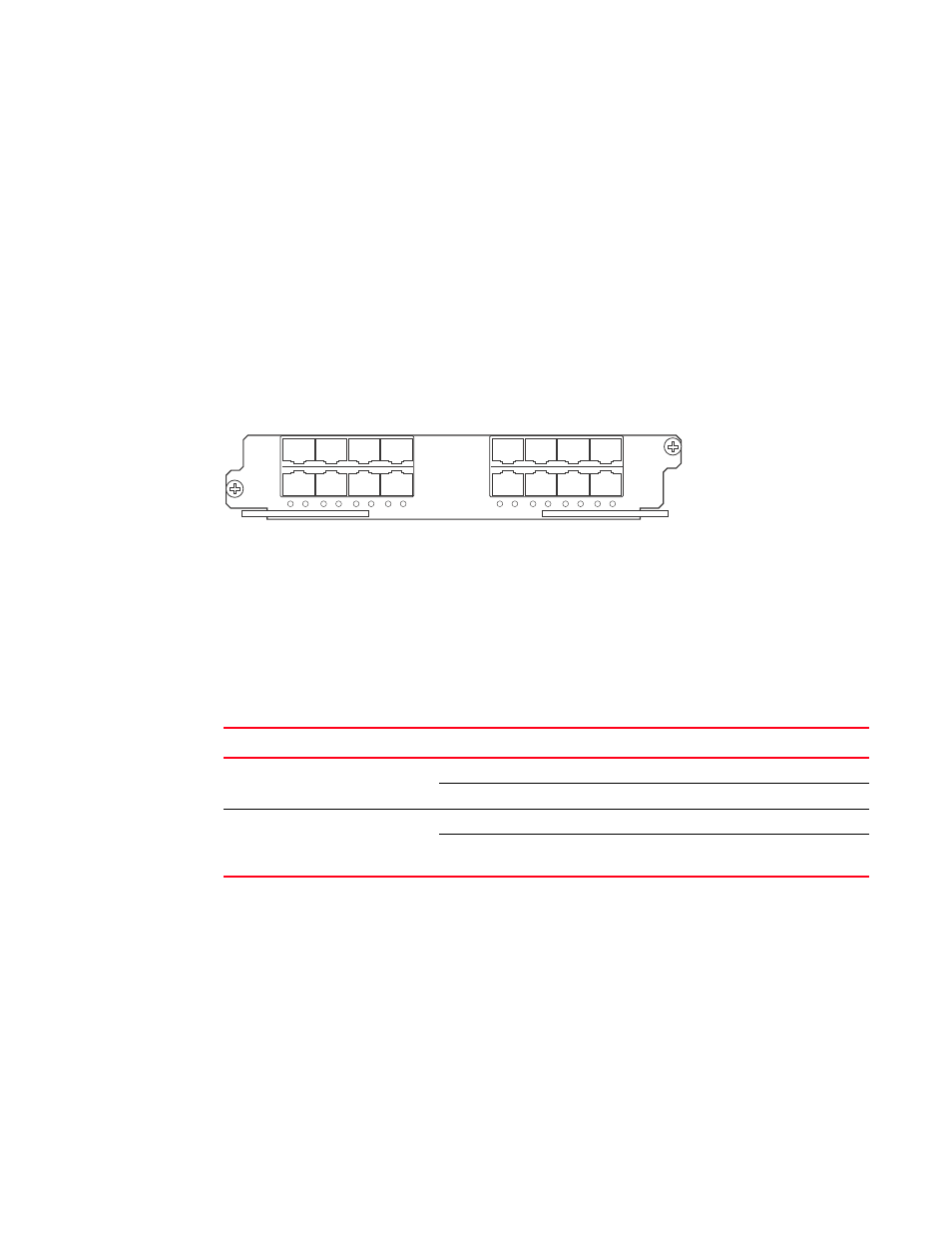

FIGURE 6 16-port 10 Gigabit Ethernet module front panel
The front panel includes the following control features:
• 16 LEDs
• 16 x 10 Gigabit Ethernet XFP slots
LEDs
The module’s front panel includes 16 LEDs that indicate the status of each port.
Table 4 describes the LEDs on the 10 Gigabit Ethernet module’s front panel.
The following optic modules versions are available from Brocade:
• Short wavelength (86 – 300 meters) – Brocade part number 10G-XFP-SR
• Long wavelength (10 kilometers) – Brocade part number 10G-XFP-LR
• Extra long wavelength (40 kilometers) – Brocade part number 10G-XFP-E=The front panel
includes the following control features:
• 16 LEDs
• 16 x 10 Gigabit Ethernet XFP slots.
TABLE 4 10 Gigabit Ethernet module LEDs
LED Position State Meaning
Link Below each
Ethernet port On A link is established with the remote port.
Off A link is not established with the remote port.
Active Below each
Ethernet port On or blinking The port is transmitting and receiving packets.
Off for an extended period The port is not transmitting or receiving
packets.
