Brother PC 6500 User Manual

Page 25

(b)

(a)

(b)

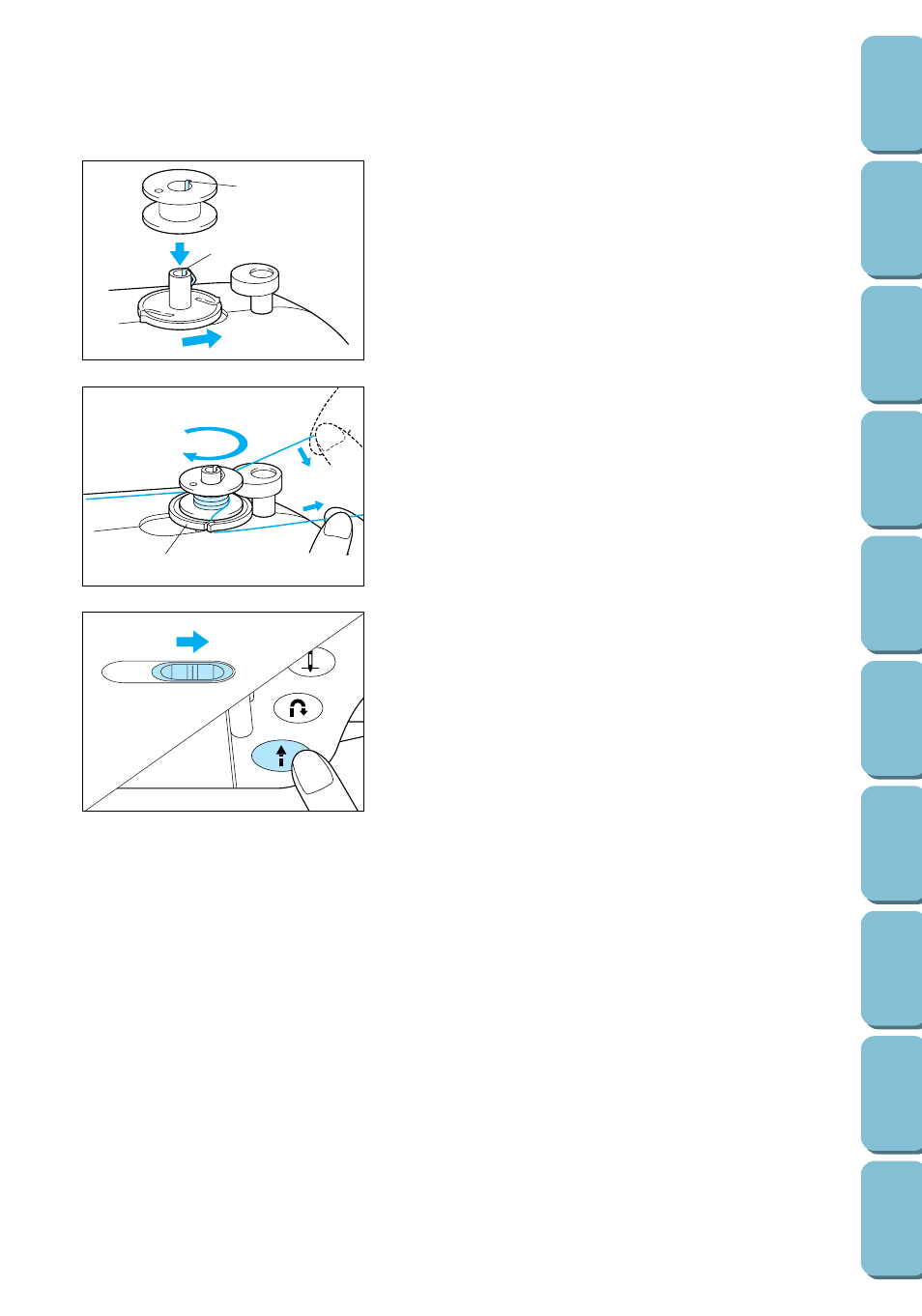

4. Place the bobbin on the bobbin winder shaft so that the

spring on the shaft fits into the groove in the top of the
bobbin (a). Then, slide the bobbin winder shaft to the right
(b).

Spring on the shaft

Groove in the bobbin

5. Wind the thread clockwise around the bobbin four or five

times (a), pass the thread through the slit in the bobbin
winder seat, and then pull it as shown to cut it (b).

Bobbin winder seat

6. Slide the sewing speed controller to its maximum (as far as

possible to the right).

7. Press the start/stop button. The bobbin stops spinning

automatically when it is full.

8. After the bobbin has stopped spinning, press the start/stop

button to stop the machine.

9. Cut the thread, slide the bobbin winder shaft to the left and

then remove the bobbin.
