4.4 Capture-Path Inputs
shows details of the various analog input gain settings, including control register fields.

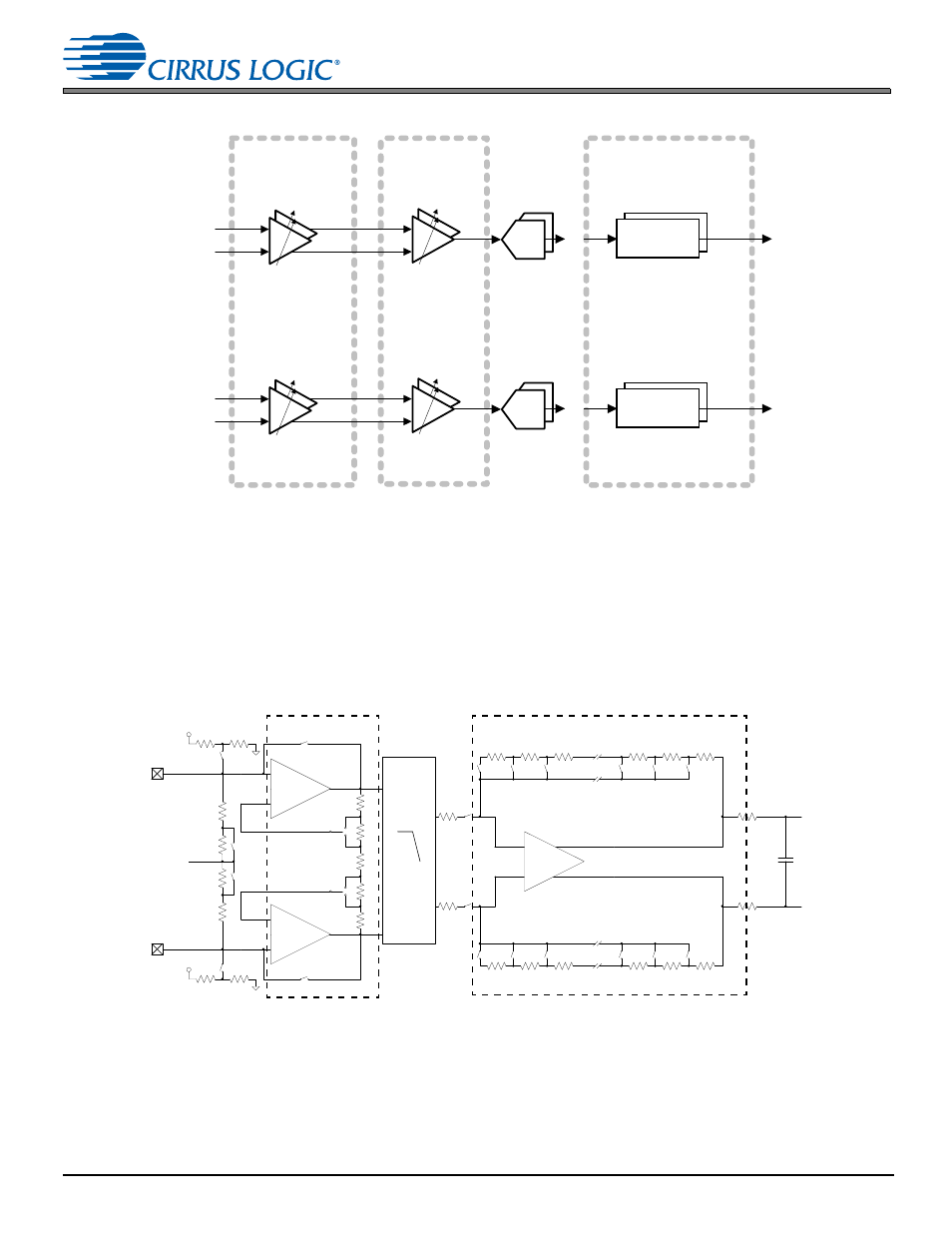

Figure 4-4. Input Gain Paths
4.4.1
Analog Input Configurations
The CS53L30 implements fully differential analog input stages, as shown in
. In addition to accepting fully
differential input signals, the inputs can be used in a pseudodifferential configuration to improve common mode noise
rejection with single-ended signals. In this configuration, a low-level reference signal is sensed at the ground point of the
internal mic or external mic jack and used as a pseudodifferential reference for the internal input amplifiers. Sitting between
the preamp and the PGA is an internal antialias filter with a first-order pole at 95 kHz and a first-order pole at 285 kHz.
Figure 4-5. Op-Amp Level Schematic—Analog Inputs
shows the INx interface and the related connections recommended for a fully differential internal mic. These
connections are truncated in
–6 to +12 dB
with 0.5-dB
steps
Bypass, +10,
or +20 dB
0 or +20 dB
and/or
–96 to +12 dB
with 1-dB steps or
–
dB (mute)
INx±,
(x=1,2)
Gain Adjust
Digital Gain
Adjust
ADC1x
PGA
...
(Note 1)
(Note 1)
Bypass, +10,
or +20 dB
INx±,
(x=3,4)
Gain Adjust
Digital Gain
Adjust
ADC2x
PGA
...
(Note 1)
(Note 1)
1. Gains within analog blocks vary with supply voltage, with temperature, and from part to part. The gain values listed for these blocks
are typical values with nominal parts and conditions.
+
–
Preamp+
+
–
Preamp–
INx–
INx+
100 k
900 k
900 k
100 k
Quick-
Ref
700 k
700 k
VA
Weak-VCM
700 k
700 k
Weak-VCM
VA
VCM
+
–
PGA
ADCx+
ADCx–
