6. Electrical installation

Festo P.BE-CMMD-AS-HW-EN 1002NH

101

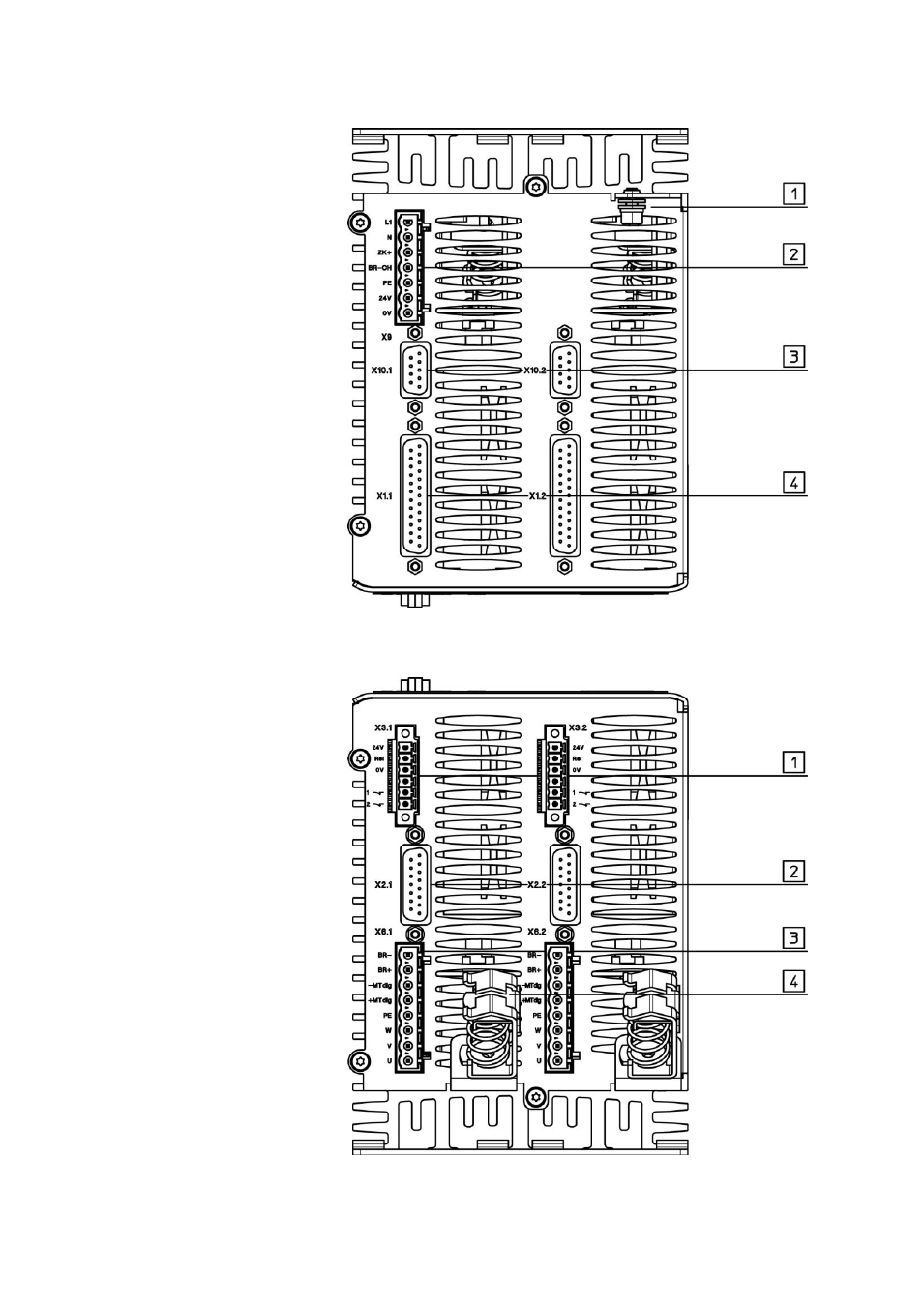

1 Earthing screw
2

[X9] Power supply

3

[X10] Increment
generator output

4 [X1] I/O interface

Fig. 6.2 Top view CMMD-AS

1

[X3] Safe halt

2

[X2] Increment
generator output

3 [X6] Motor connection
4 Screened connection

Fig. 6.3 Bottom view CMMD-AS
