Configuring the MAC Address Table
88
The table lists each MAC address that the switch has learned, the
number or name of the port on which the MAC address was detected,
and the VLAN to which the port belongs.
The Refresh button queries the switch for the latest MAC address
information and updates the window.
3. Return to the Main Menu.
Displaying the
MAC Addresses
of a Port
The procedure in this section explains how to display the MAC addresses
of a specific port. This allows you to easily determine the MAC addresses
of the devices connected to a port on the switch.
To display the MAC addresses of the devices connected to a specific
port, perform the following procedure:
1. From the Omega Main Menu, select MAC Address Table.
The MAC Address menu shown in Figure 38 is displayed.
2. Select By port MAC addresses.
A list of the ports on the switch is displayed.
3. Select the desired port number from the list.

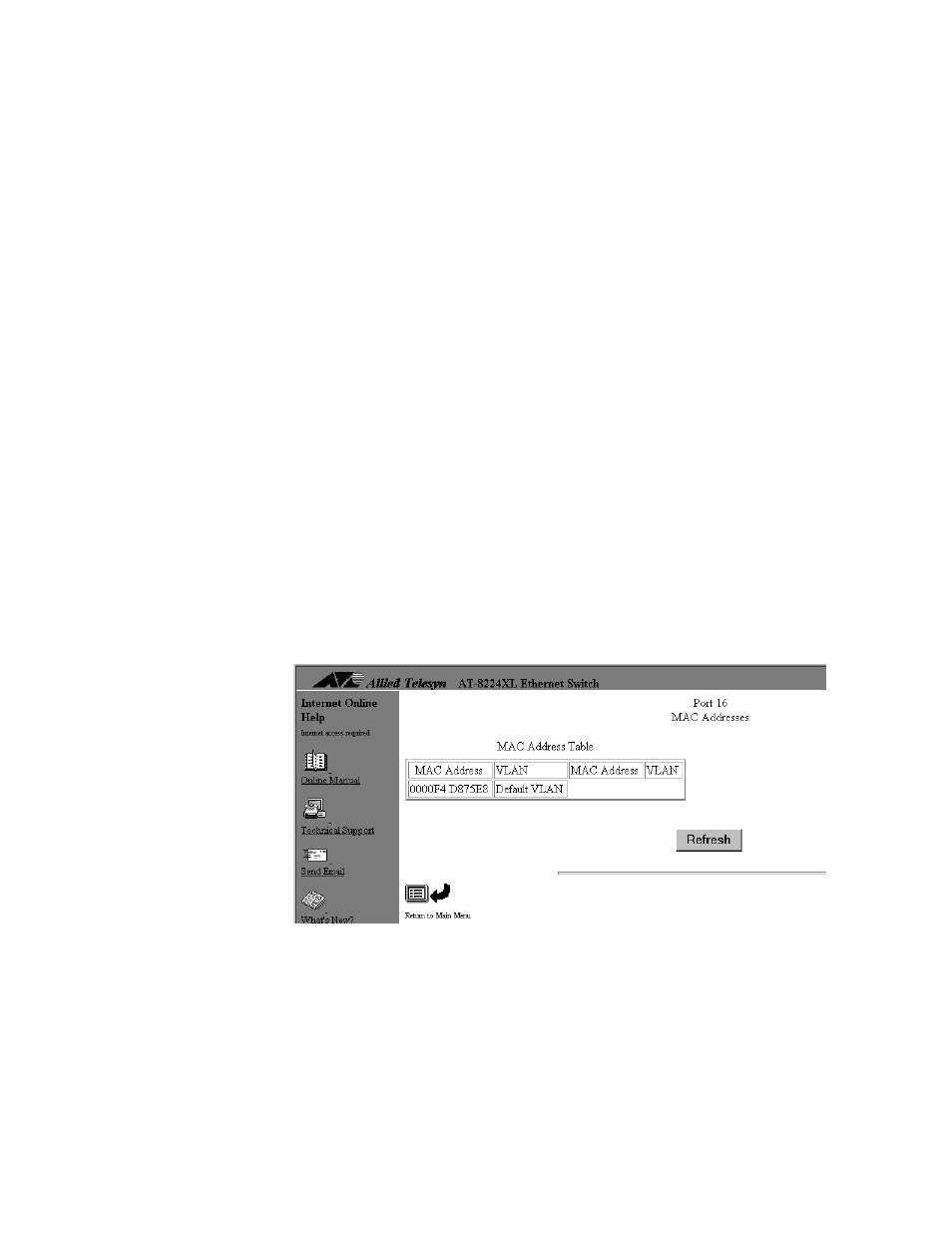

The MAC Address Table Per Port window is displayed. The window
contains the MAC addresses that have been learned on the selected
port. Figure 40 is an example of the window.
Figure 40 MAC Address Table Per Port Window
4. Return to the Main Menu.
