Configuring Virtual LANs and Quality of Service
114
3. Select one of the existing VLANs that contains an untagged port that
you have assigned to the new VLAN.
The VLAN Configuration window for the selected VLAN is displayed.

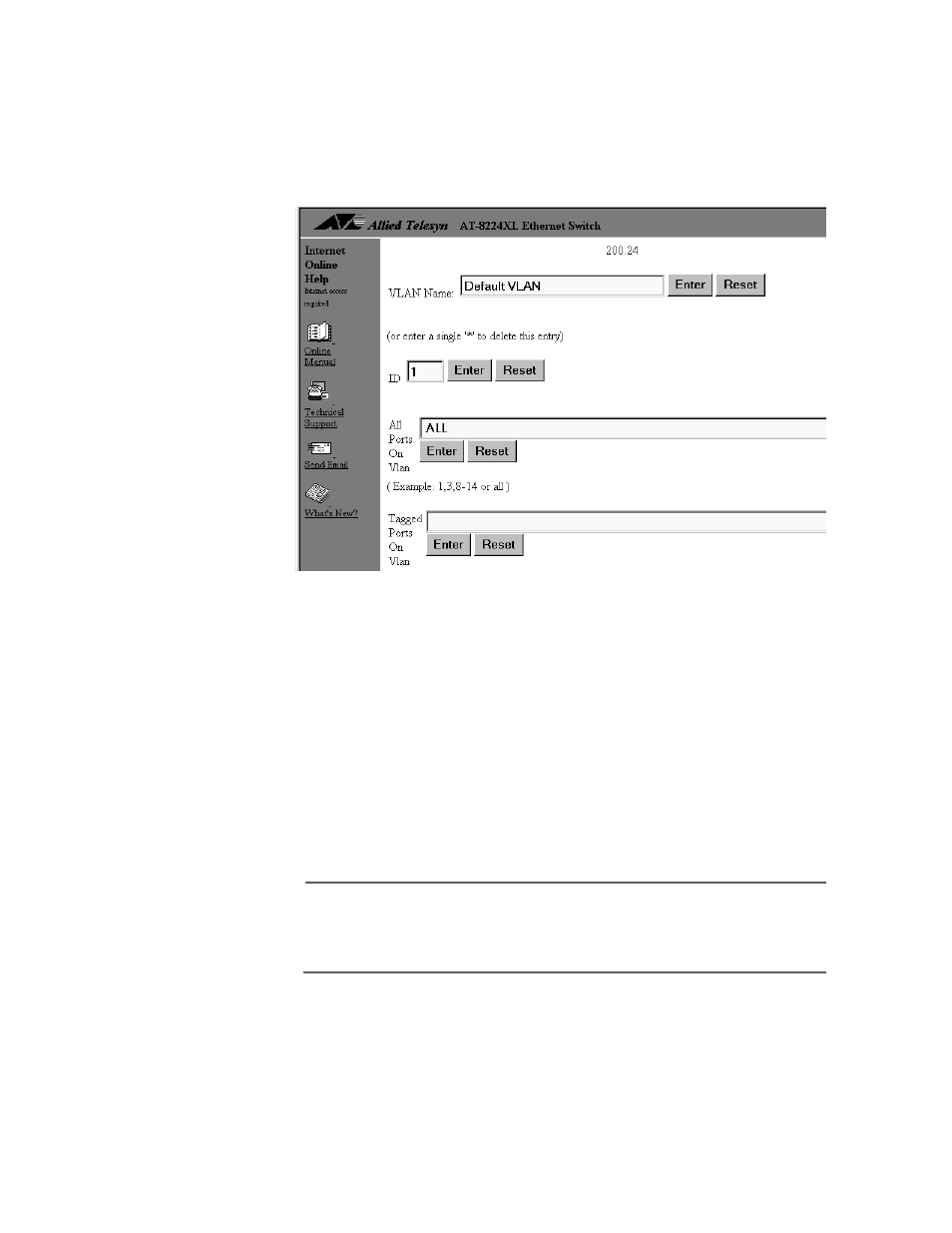

An example is shown in Figure 56. The example is for the Default
VLAN.
Figure 56 VLAN Configuration Example for the Default VLAN
4. Modify the All Ports on VLAN field so that it no longer includes the
untagged ports that you have assigned to the new VLAN. Select Enter
or press .
5. Return to the Omega Main Menu.
6. Repeat this procedure to modify any other VLANs that contain
untagged ports that you have assigned to the new VLAN.
Phase 3
The final phase to creating a new VLAN involves changing the PVID of
each untagged port in the new VLAN to match the VLAN’s VID. To
accomplish this, do the following procedure:
Note
Only the PVID of untagged ports must be changed to match the VID
of its respective VLAN. The default PVID of tagged ports should not
be changed.
1. From the Omega Main Menu, select Virtual LANs/QoS.
2. Select Port to VLAN configuration.
