Displaying Ethernet Statistics
134
Displaying Statistics for Received Frames
To display statistics for received frames at either the switch or the port
level, perform the following procedure:
1. From the Main Menu, select Ethernet Statistics.
The Receive Statistics Graph window for the switch is displayed.
Figure 64 is an example of the window.

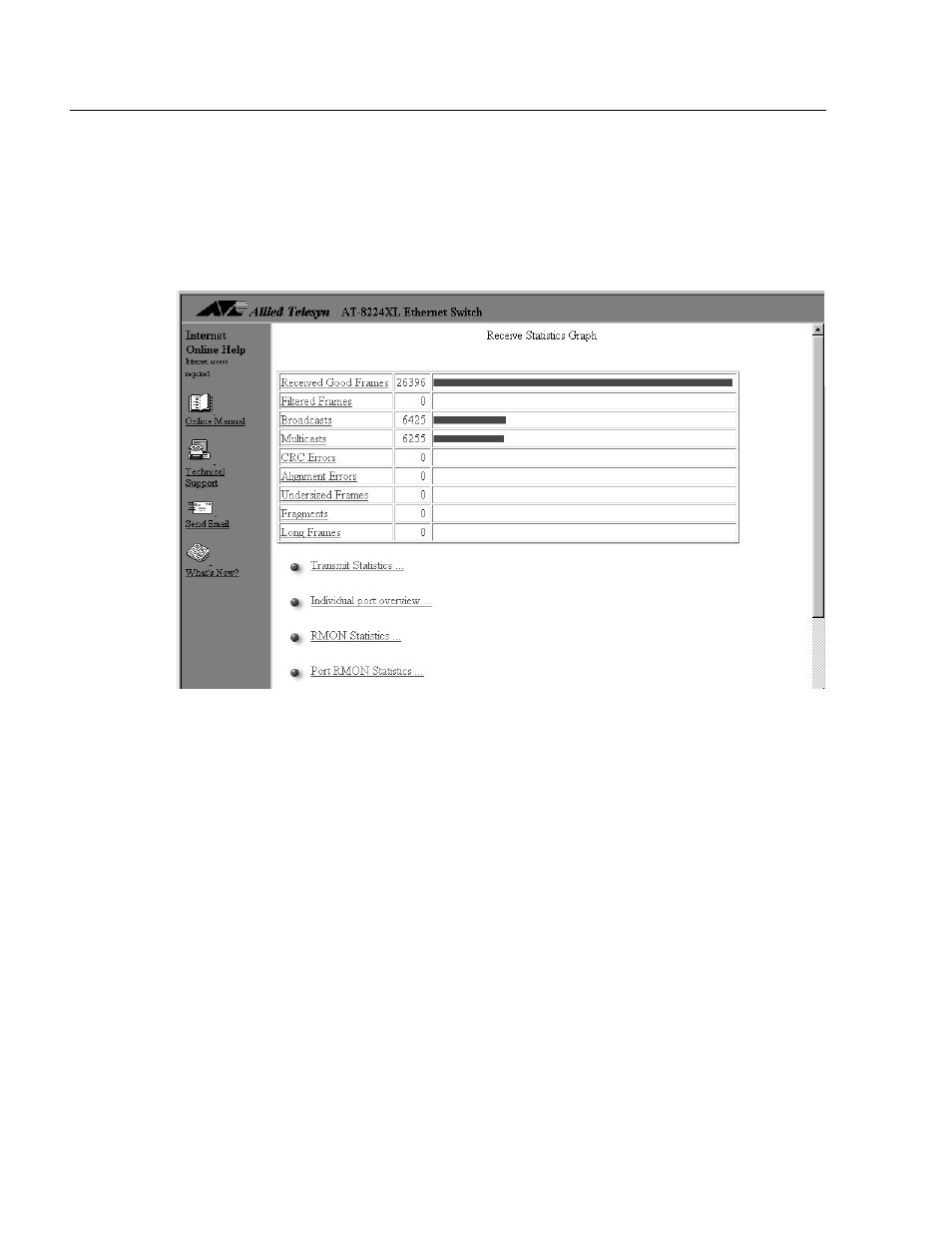

Figure 64 Graph of Received Frames, Switch Level
The graph shows the types of frames the switch has received over a
period since the last switch reset or since someone reset the counters
to zero.
Table 6 defines the different types of received frames.
2. To view received frame statistics for a particular port, do either of the
following:
a. Select Individual port overview and then a port. The frames
statistics for the selected port display. Figure 65 is an example of
the window.
b. Select a frame type from the Receive Frames window. The
statistics for the selected frame type for all of the ports is
displayed. A example is shown in Figure 66.
