AT-S24 Version 2.01 User’s Guide
47

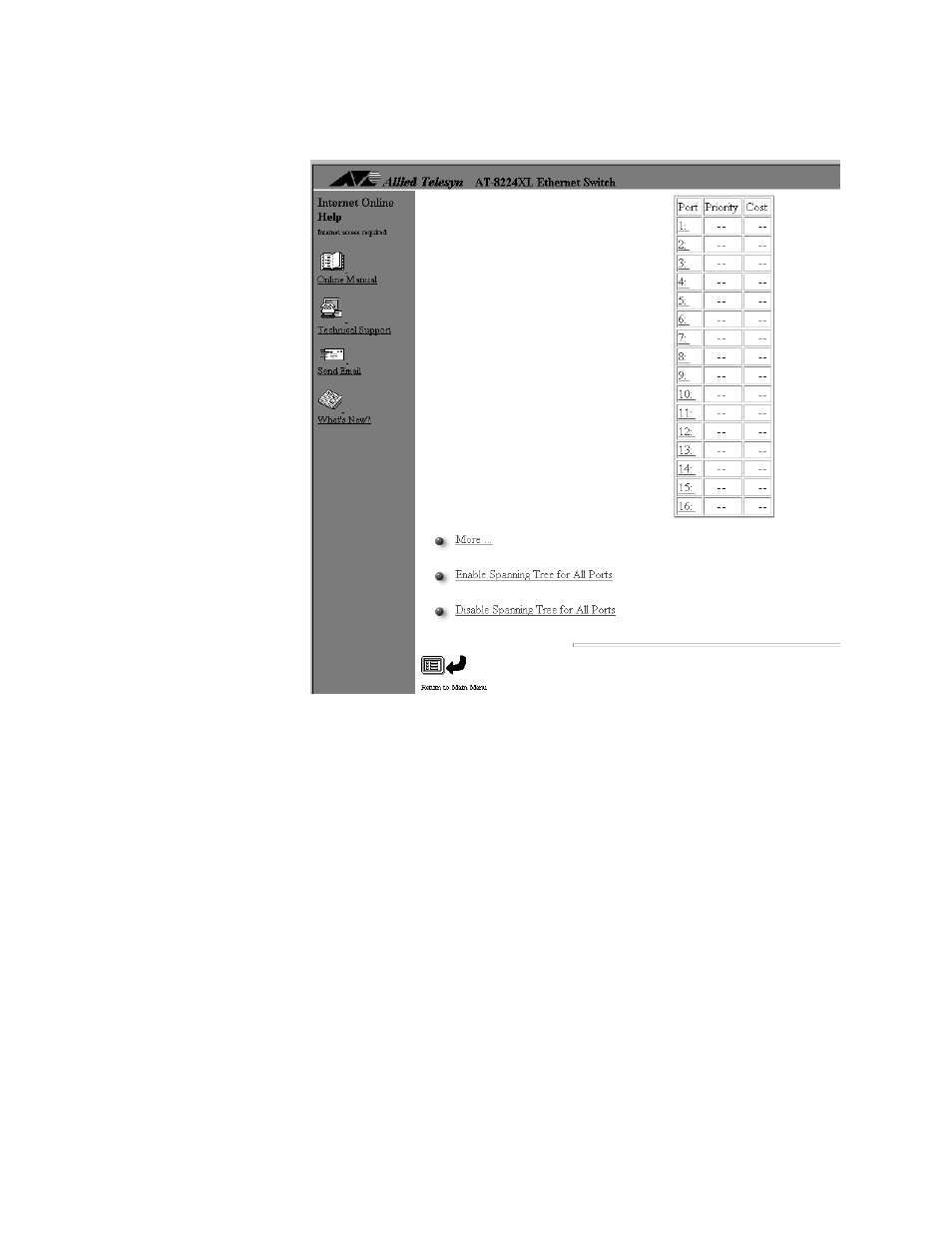

The Port Parameters for the Spanning Tree Protocol window shown in
Figure 12 is displayed. The window lists the ports on the switch and
the current STP parameter settings for the ports.
Figure 12 Port Parameters for the Spanning Tree Protocol
3. To enable or disable STP for all the ports on the switch, select either
Enable Spanning Tree for all Ports or Disable Spanning Tree for all Ports
at the bottom of the window.
If you enable STP on the ports, the Omega interface sets each port to
the default values of 128 for the port priority and 10 for the port cost
for 100 Mbps ports and 100 for 10 Mbps ports.
4. To enable or disable STP for a particular port or to adjust the STP
parameters for a port, select the port from the window.
