AT-S24 Version 2.01 User’s Guide
73

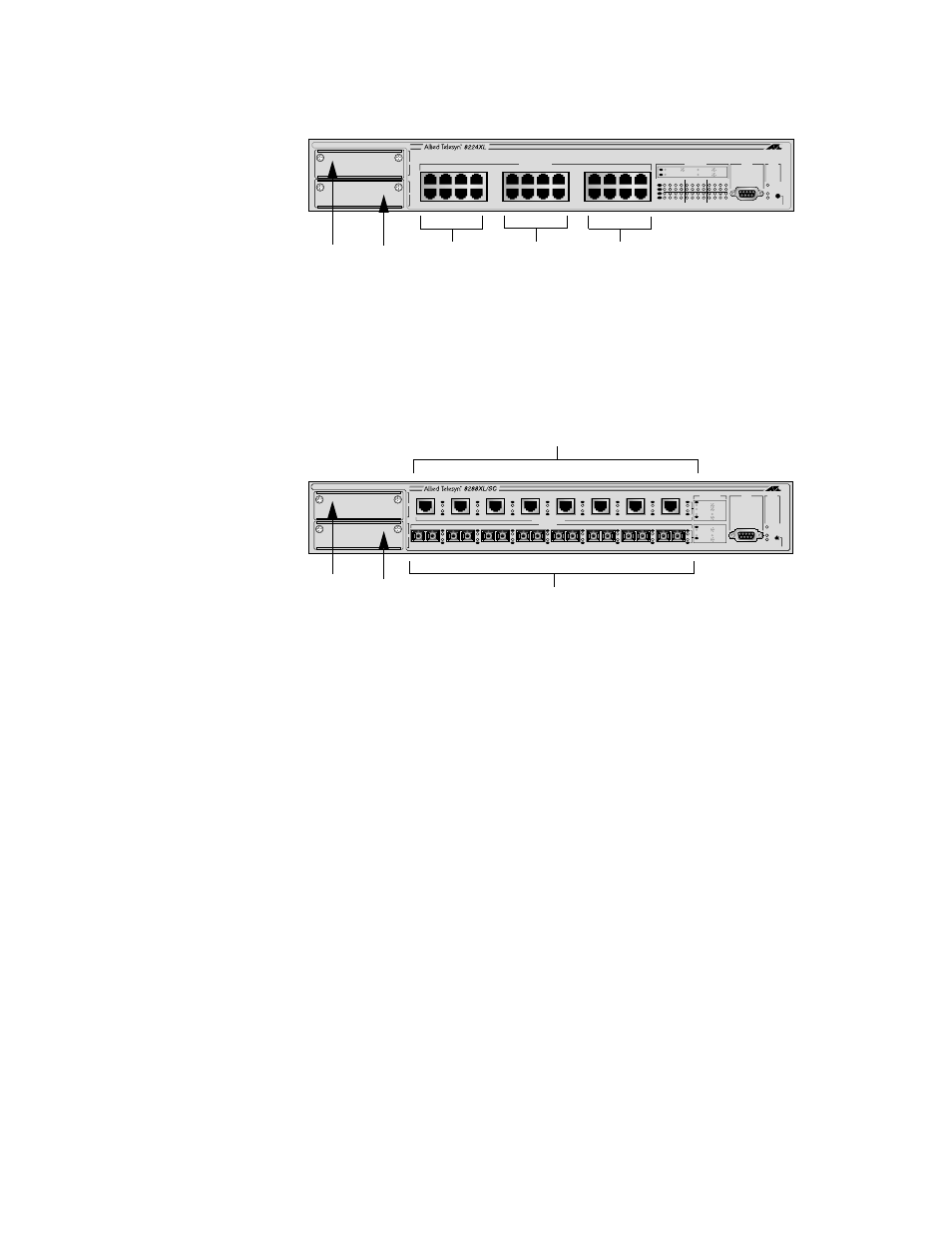

The ports on the AT-8224XL Switch are divided into five groups, as
illustrated in Figure 29.
Figure 29 Port Groupings on the AT-8224XL Switch
The ports on the AT-8288XL Switch are divided into four groups, as
illustrated in Figure 29.
Figure 30 Port Groupings on an AT-8288XL Switch (Model AT-
8288XL/SC)
The ports of a port trunk must be members of the same group. You
cannot create a port trunk using ports from different groups. For
example, you could use ports 4 and 5 on an AT-8224XL Switch as one
port trunk, since the ports are members of the same group. However,
ports 7, 8, 9, and 10 cannot be combined to form a port trunk on an AT-
8224XL Switch because they belong to different groups.
Guideline 3: Using Consecutive Ports
The ports of a trunk must be consecutive. For example, you could use
ports 4, 5, 6, and 7 as one port trunk because the ports are consecutive.
Guideline 4: Creating Only One Trunk Per Group
Each group of ports on a Fast Ethernet switch can support only one port
trunk. For example, the AT-8224XL Ethernet Switch has three port
groups, assuming no expansion modules. Consequently, this switch can
support three port trunks, one port trunk for each port group. The
addition of an expansion module in the bottom expansion slot would
enable the switch to support one additional port trunk.
STATUS
RESET
FAULT
RPS
PWR
10BASE-T / 100BASE-TX
FAST ETHERNET SWITCH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
10BASE-T / 100BASE-TX
1X 3X 5X 7X
2X 4X 6X 8X
9X 11X 13X 15X
10X 12X 14X 16X
17X 19X 21X 23X
18X 20X 22X 24X
A
B
RS-232 TERMINAL PORT 100M LINK / ACTIVITY 10M LINK / ACTIVITY
HALF DUP/ COL FULL DUP
PORT ACTIVITY
L /A
L /A
D/C
D/C
L /A
D/C
Group A Group B Group C
Ports 1 to 8 Ports 9 to 16 Ports 17 to 24
Group D Group E
8 PORT 10BASE-T / 100BASE-TX and 8 PORT 100BASE-FX
FAST ETHERNET SWITCH
A
B
STATUS
RESET
FAULT
RPS
PWR
RS-232 TERMINAL PORT L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
L /A
D/C
8X 7X 6X 5X 4X 3X 2X 1X
16 15 14 13 12 11 10 9
RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX
100BASE-FX
LINK ACTIVITY
FULL DUP
L /A
D/C HALF DUP
COL
100M LINK ACTIVITY
10M LINK ACTIVITY
FULL DUP
L /A
D/C HALF DUP
COL 10BASE-T / 100BASE-TX
PORT ACTIVITY
Group C Group D
Ports 9 to 16
Group B
Group A
Ports 1 to 8
