Managing a Switch
56
Configuring the RS232 Port
The default settings for the RS232 port on the front panel of the Ethernet
switch are as follows:
❑ Baud rate: 9600
❑ Data bits: 8
❑ Parity: None
❑ Stop bits: 1
❑ Flow control: None
To change the settings for the RS232 port, perform the following
procedure:
1. From the Omega Main Menu, select System Configuration.
The System Configuration menu in Figure 8 on page 41 is displayed.
2. From the System Configuration menu, select Terminal Configuration.

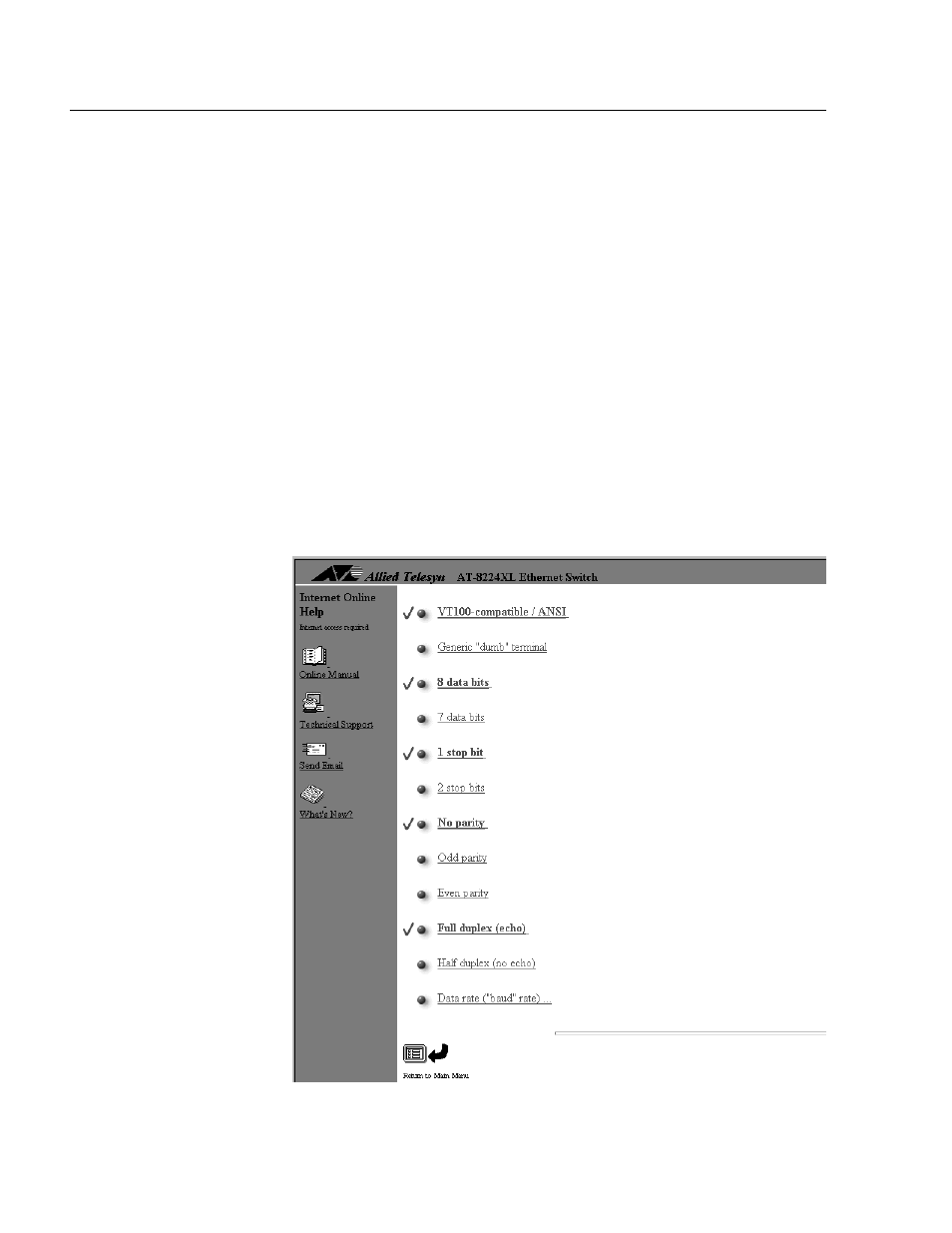

The Terminal Configuration window in Figure 20 is displayed.
Figure 20 Terminal Configuration Window
