Allied Telesis AT-S24 - Manual (Page 61)

AT-S24 Version 2.01 User’s Guide
61
Displaying the Activity Monitor
The Activity Monitor is useful in troubleshooting or in monitoring switch
activity. To display the Activity Monitor, perform the following
procedure:
1. From the Omega Main Menu, select Administration.
2. From the Administration menu, select Activity monitor.
The Activity Monitor for the switch displays. The example shown in
Figure 22 shows the results of a ping command.

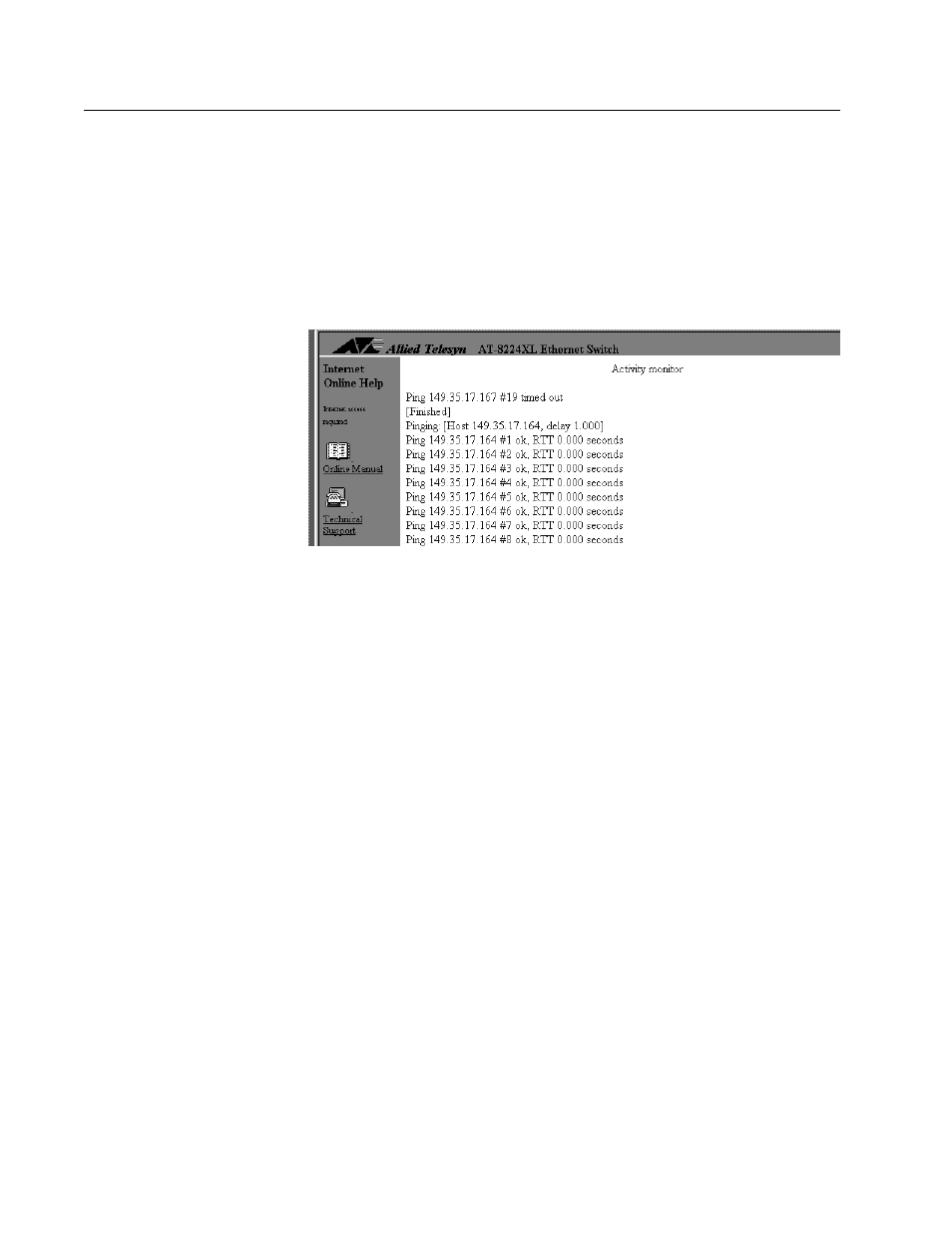

Figure 22 Activity Monitor Window
3. Return to the Main Menu.
