Chapter 3: AT-SBx81CFC960 Controller Fabric Card
60 Section I: Hardware Overview
Hardware Components
The components on the controller card are identified in Figure 28 and
briefly described in Table 16.

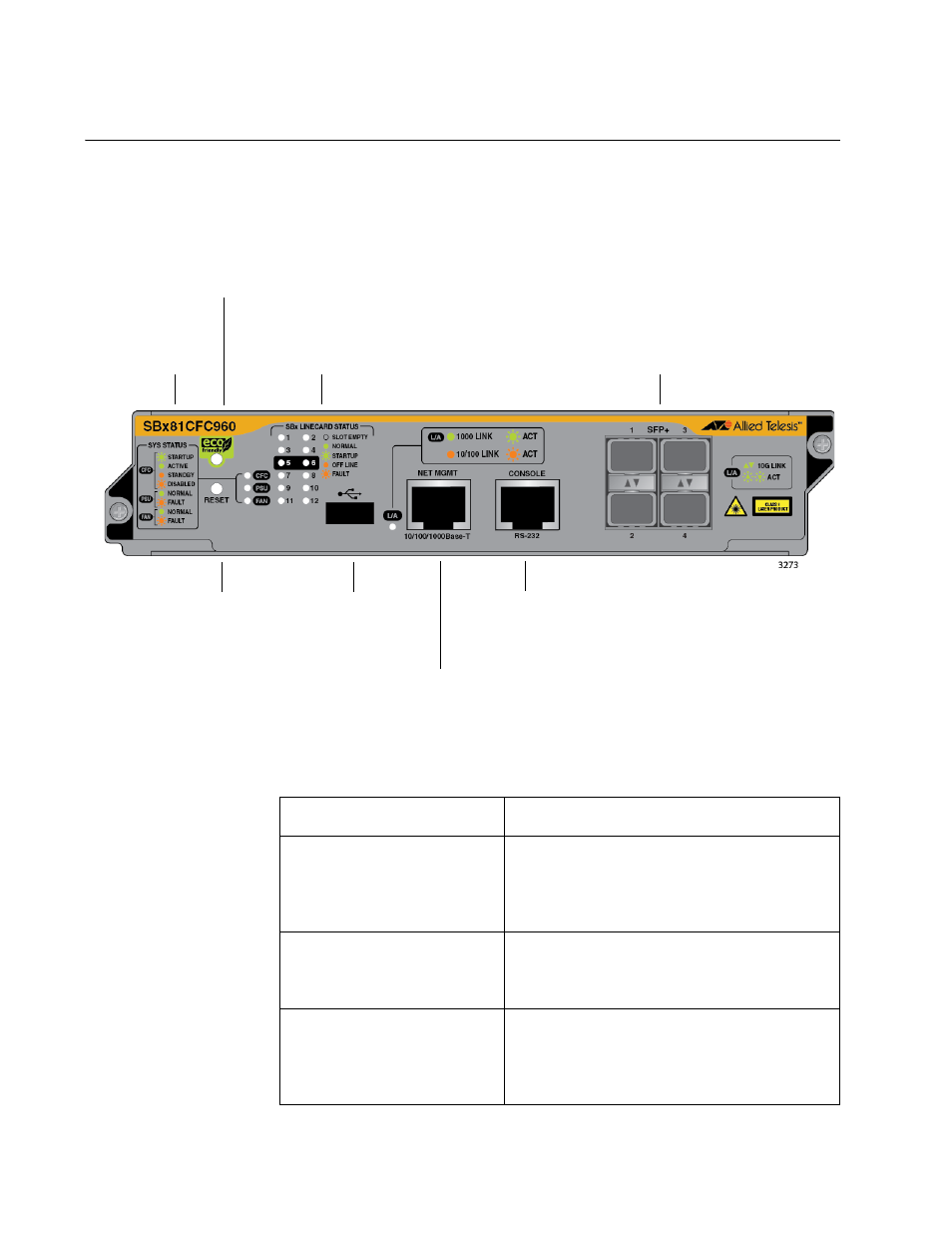

Figure 28. AT-SBx81CFC960 Controller Fabric Card
Four Slots for 10Gbps SFP+
or AT-Stack Transceivers
SBx Linecard
Status LEDs
eco-friendly
Button
SYS
Status
LEDs
Reset
Button
USB
Port
Console RS-232
Port
Ethernet Management (eth0) Port
Table 16. Components on the AT-SBx81CFC960 Controller Fabric Card
Component Description
SYS Status LEDs Displays general status information about
the controller card, power supplies, and
fan module. For more information, refer to
“SYS Status LEDs” on page 66.
eco-friendly Button Turns the LEDs on and off. For more
information, refer to “eco-friendly Button”
on page 68.
SBx Linecard Status LEDs Displays general information about the
controller and Ethernet line cards. For
more information, refer to “SBx Linecard
Status LEDs” on page 69.
