Chapter 6: Installing the Power Supplies
124 Section II: Installing the Chassis
8. Lower the locking handle of the power supply module to secure the
module in the slot, as shown in Figure 63.

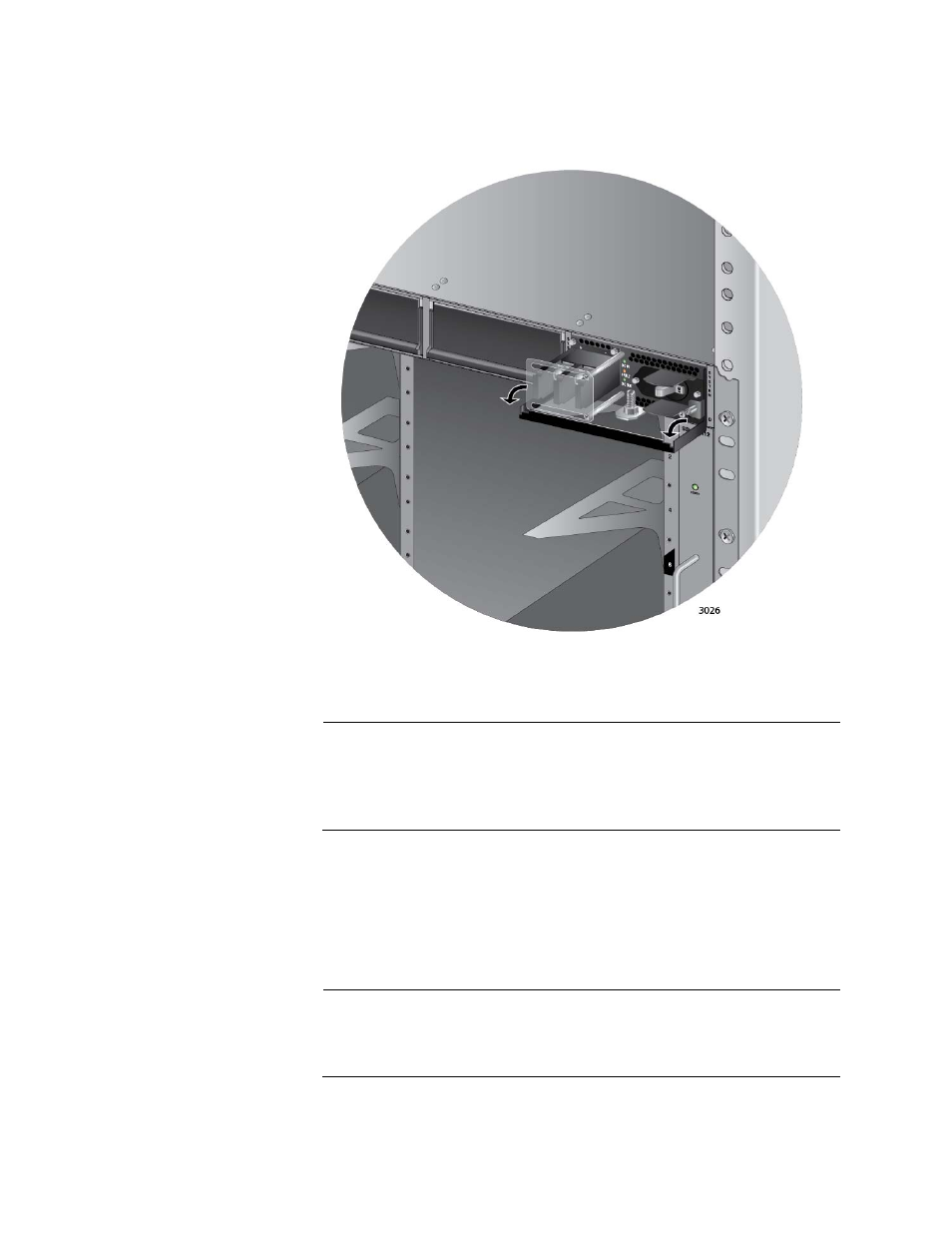

Figure 63. Locking the Handle on the AT-SBxPWRSYS1 DC System
Power Supply
Note
Do not tighten the handle locking screw yet. You may need to
slightly lift the handle to move the plastic guard panel when you
connect the positive and negative wires in “Powering On the AT-
SBxPWRSYS1 DC System Power Supply” on page 177.
9. To install a second AT-SBxPWRSYS1 DC System Power Supply,
repeat this procedure.
10. After installing the power supplies, go to Chapter 7, “Installing the AT-
SBx81CFC960 Control Card and Ethernet Line Cards” on page 125.
Note
Retain the five wire ring lugs that come with the power supply. You
use them to wire the power supply in “Powering On the AT-
SBxPWRSYS1 DC System Power Supply” on page 177.
