Port Pinouts
This section has the pinouts for the ports on the AT-SBx81GT24, AT-
SBx81GT40, and AT-SBx81GP24 Line Cards, and the NET MGMT port
on the AT-SBx81CFC960 Controller Fabric Card.
Figure 193 illustrates the pin layouts for RJ-45 and RJ point 5 ports.

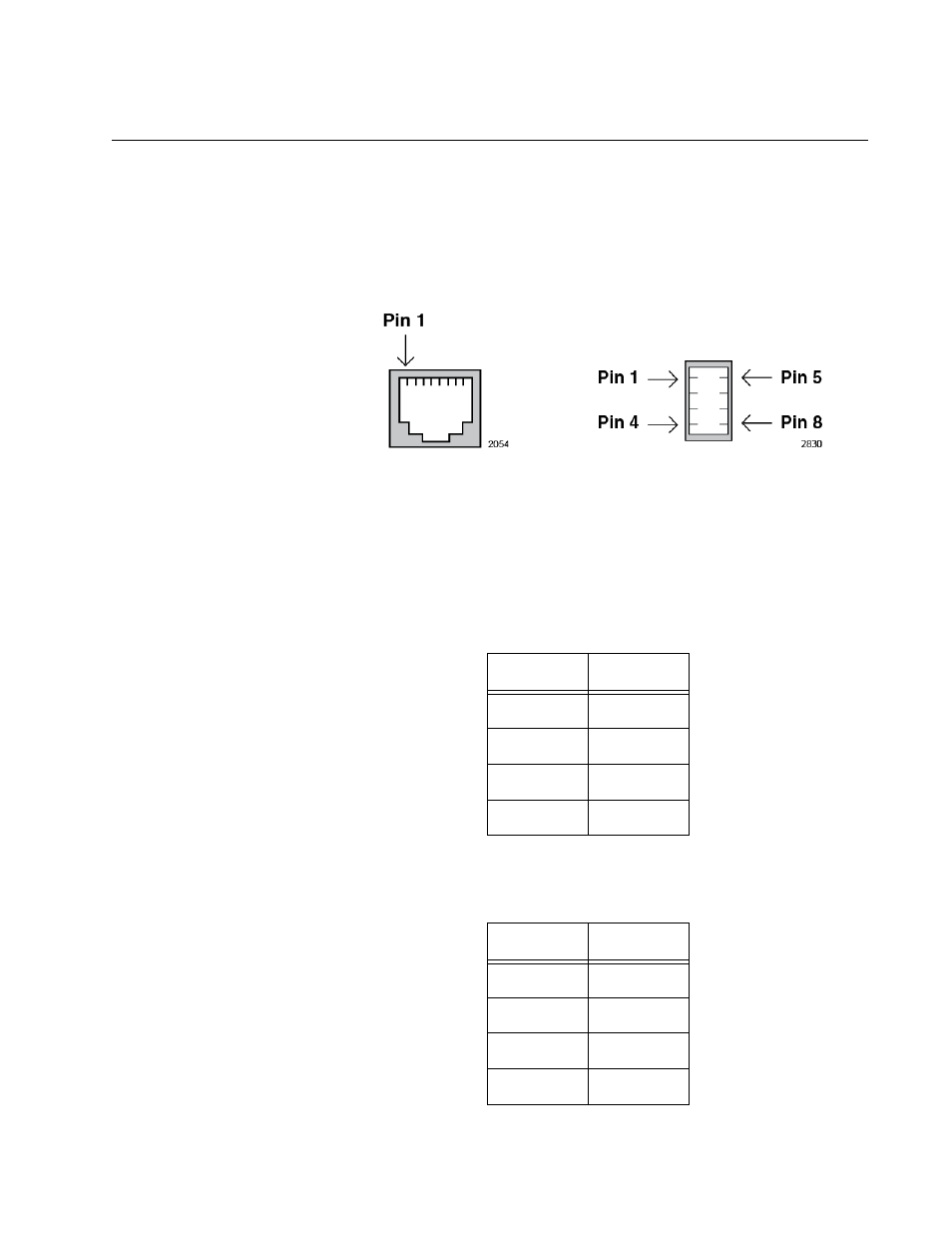

Figure 193. Pin Numbers for RJ-45 and RJ Point 5 Ports (Front View)
Table 40 lists the pin signals when a twisted-pair port is operating in the
MDI configuration.
Table 41 lists the port pin signals for the MDI-X configuration.
Table 40. MDI Pin Signals (10Base-T or 100Base-TX)
Pin
Signal
1
TX+
2
TX-
3
RX+
6
RX-
Table 41. MDI-X Pin Signals (10Base-T or 100Base-TX)
Pin
Signal
1
RX+
2
RX-
3
TX+
6
TX-
RJ45 Port
RJ Point 5 Port
