Powering On the AT-SBxPWRSYS1 AC System Power Supply
The procedure in this section explains how to power on the AT-
SBxPWRSYS1 AC System Power Supplies in slots C and D on the front
panel. If you have not already installed the power supplies, refer to
“Installing the AT-SBxPWRSYS1 AC System Power Supply” on page 107
for installation instructions.
Note
If the chassis has both AT-SBxPWRSYS1 and AT-SBxPWRPOE1
Power Supplies, you may power on the power supplies in any order
or simultaneously.
To power on the chassis, perform the following procedure:
1. Identify AC sockets C and D in the recessed panel on the back panel
of the chassis, shown in Figure 109. These sockets are for the AT-
SBxPWRSYS1 System Power Supplies in slots C and D on the front
panel of the chassis.

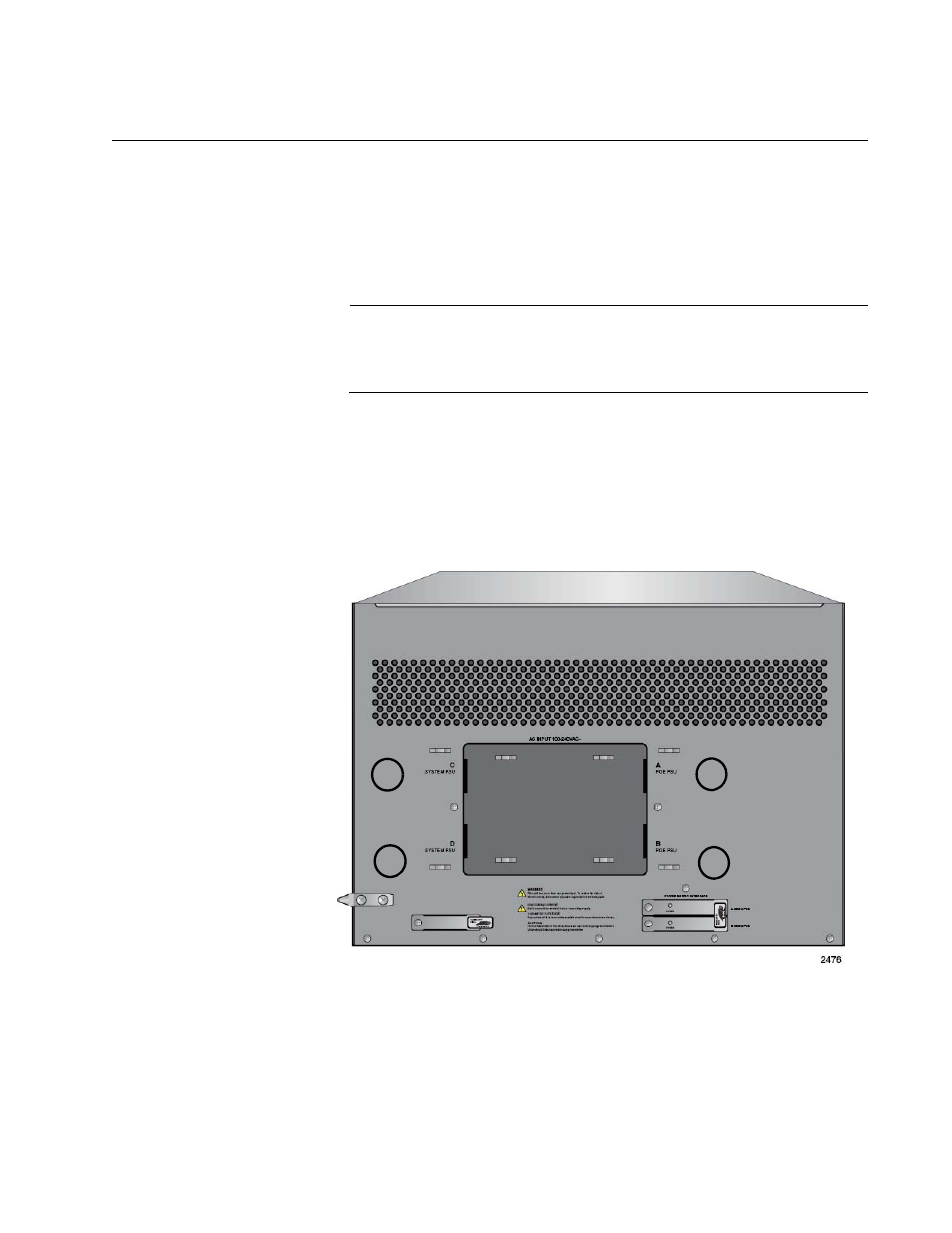

Figure 109. AC Sockets on the Rear Panel of the AT-SBx8112 Chassis
2. Plug the AC power cord that comes with the power supply into a plug
whose corresponding slot on the front panel has a system power
supply.
A
D
C
B
