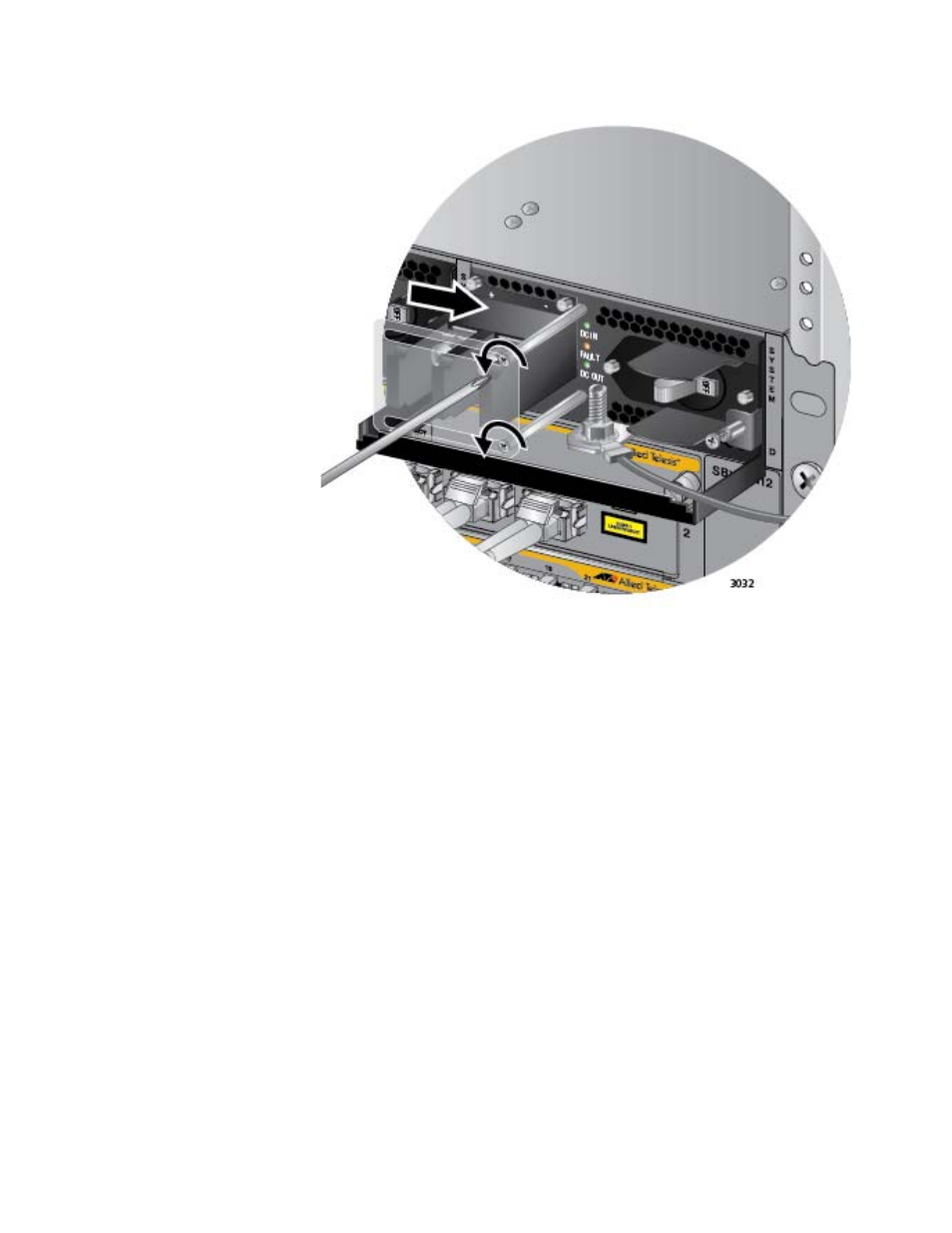

Figure 128: opening the plastic cover – Allied Telesis AT-SBx81CFC960 User Manual
Page 187
SwitchBlade x8112 Chassis Switch and AT-SBx81CFC960 Card Installation Guide
Section II: Installing the Chassis
187
Figure 128. Opening the Plastic Cover
5. Use a #3 Phillips-head screwdriver to remove the two screws from the
positive and negative terminals, as shown in Figure 129 on page 188.
