SwitchBlade x8112 Chassis Switch and AT-SBx81CFC960 Card Installation Guide
Section II: Installing the Chassis 149
7. Connect the fiber optic cable to the port on the transceiver, as shown
in Figure 87. The connector should snap into the port.

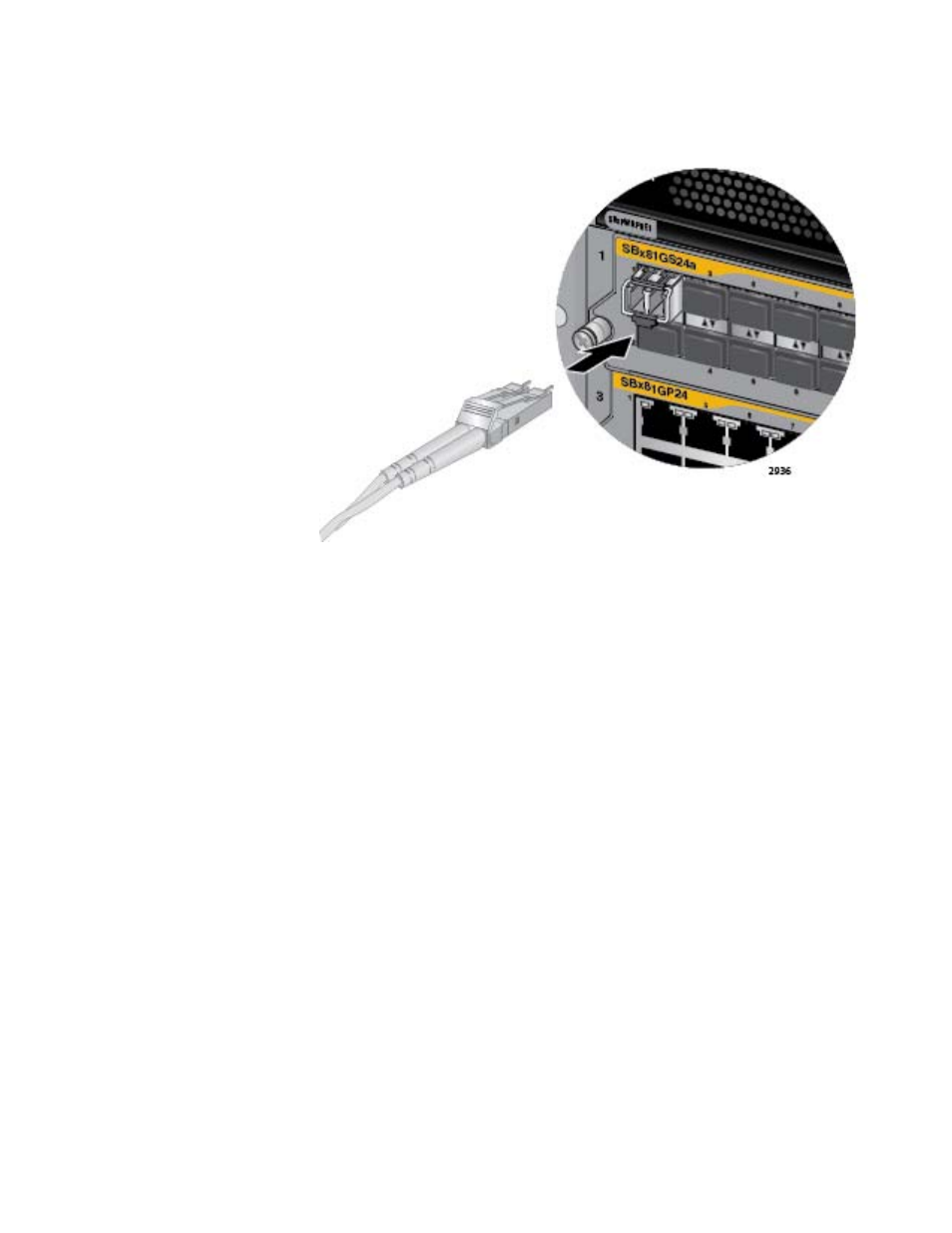

Figure 87. Attaching a Fiber Optic Cable to an SFP Transceiver in the AT-
SBx81GS24a Line Card
8. Repeat this procedure to install additional SFP transceivers.
After installing and cabling the SFP transceivers, do one of the following:
 To install and cable additional transceivers, go to the appropriate
section in this chapter for instructions.
 After cabling all the ports in the chassis, go to Chapter 9,
“Powering On the Chassis” on page 169.
