Chapter 1: Chassis and Power Supplies
26 Section I: Hardware Overview
Slots for the Ethernet Line and Controller Cards
The chassis has slots for ten Ethernet line cards and two AT-
SBx81CFC960 Controller Cards. The slot definitions are predefined and
may not be changed. Figure 7 identifies the slots.

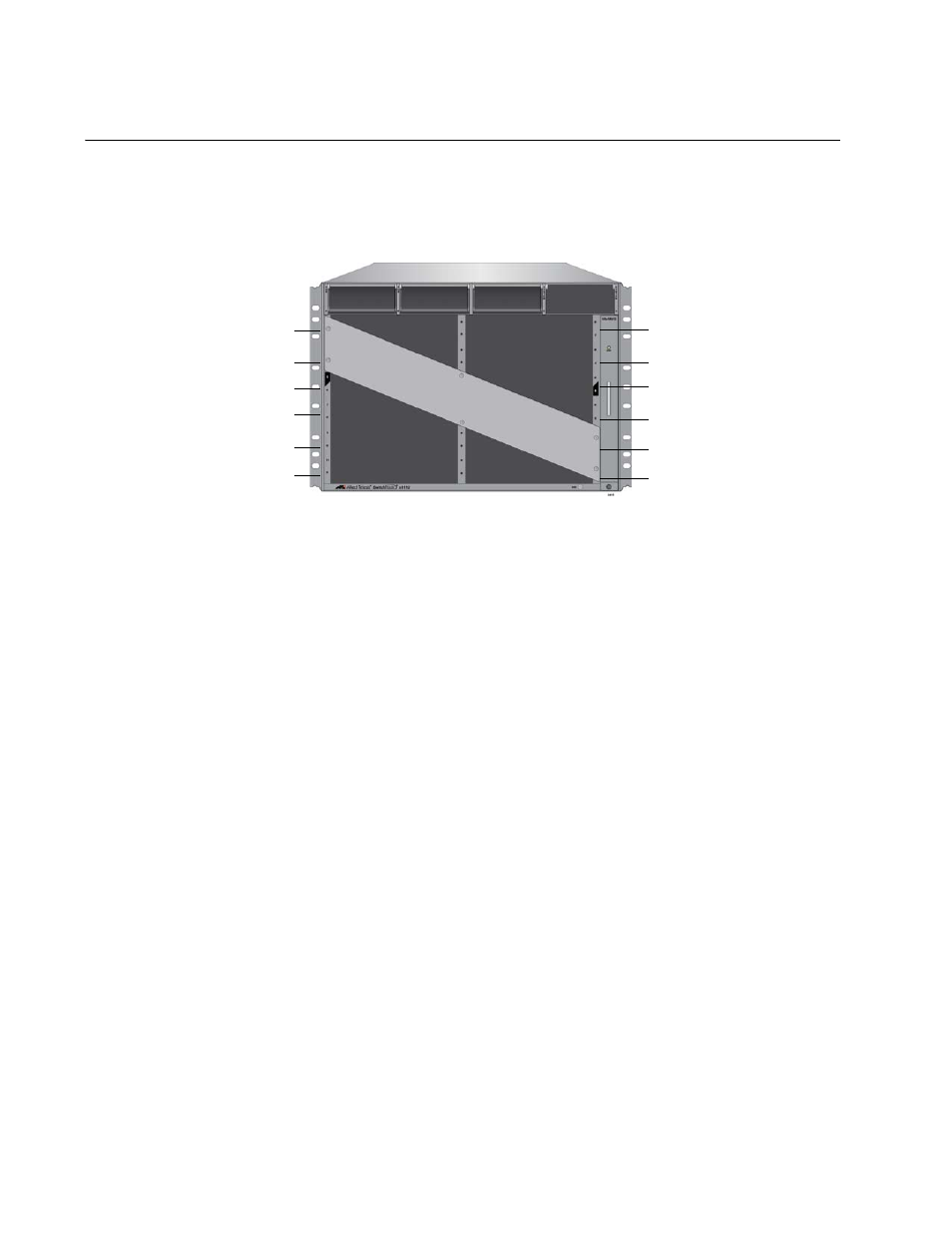

Figure 7. Ethernet Line and Controller Cards Slots
Slots 1 to 4 and 7 to 12 are for the Ethernet line cards. The cards may be
installed in any order or variety in the slots. The only exception is the AT-
SBx81XS16 Line Card, which is supported in slots 1 to 4, 7 and 8, but not
slots 9 to 12.
Slots 5 and 6 are for the AT-SBx81CFC960 Controller Fabric Card, of
which there must be at least one in the chassis. You may add a second
controller to add redundancy or to increase the available traffic bandwidth
of the chassis. The chassis has a backplane bandwidth of up to 40 Gbps
for each Ethernet line card slot with one controller card and up to 80 Gbps
for each slot with two cards.
Slot 1 - Line Card
Slot 3 - Line Card
Slot 5 - Controller Card
Slot 2 - Line Card
Slot 4 - Line Card
Slot 6 - Controller Card
Slot 7 - Line Card
Slot 9 - Line Card
Slot 8 - Line Card
Slot 10 - Line Card
Slot 11 - Line Card Slot 12 - Line Card
