Chapter 7: Installing the AT-SBx81CFC960 Control Card and Ethernet Line Cards
128 Section II: Installing the Chassis
Installing the AT-SBx81CFC960 Controller Fabric Card
This section contains the installation procedure for the AT-SBx81CFC960
Controller Fabric Card. You may install either one or two controller cards
in the unit. The chassis must have at least one controller card. The cards
must be installed in slots 5 and 6 in the chassis.
Note
Please review “Guidelines to Handling the Controller and Line
Cards” on page 126 before performing this procedure.
This procedure requires the following tools:
 #2 Phillips-head screwdriver (not provided)
 #2 Phillips-head, 5 inch-lbs torque screwdriver (optional — not
provided))
To install the AT-SBx81CFC960 Card, perform the following procedure:
1. Choose a slot in the chassis for the AT-SBx81CFC960 Controller
Fabric Card.
The card must be installed in slot 5 or 6, shown in Figure 65. If you are
installing only one controller card, Allied Telesis recommends installing
it in slot 5.

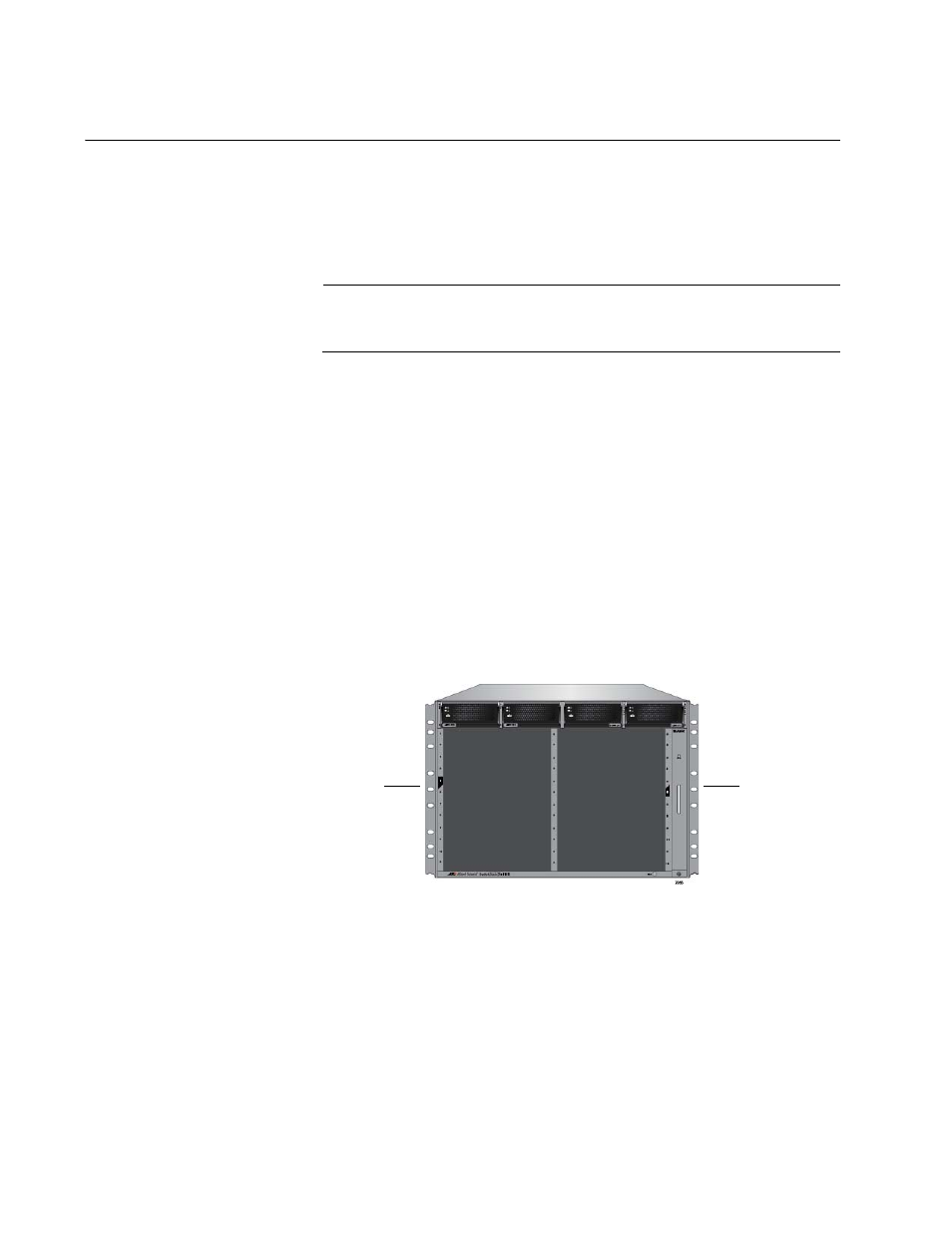

Figure 65. Slots 5 and 6 for the AT-SBx81CFC960 Card
2. Remove the new AT-SBx81CFC960 Controller Fabric Card from the
shipping package and verify the package contents, listed in Figure 66
on page 129.
If any item is missing or damaged, contact your Allied Telesis sales
representative for assistance.
Slot 5 Slot 6
