SwitchBlade x8112 Chassis Switch and AT-SBx81CFC960 Card Installation Guide
Section II: Installing the Chassis
129

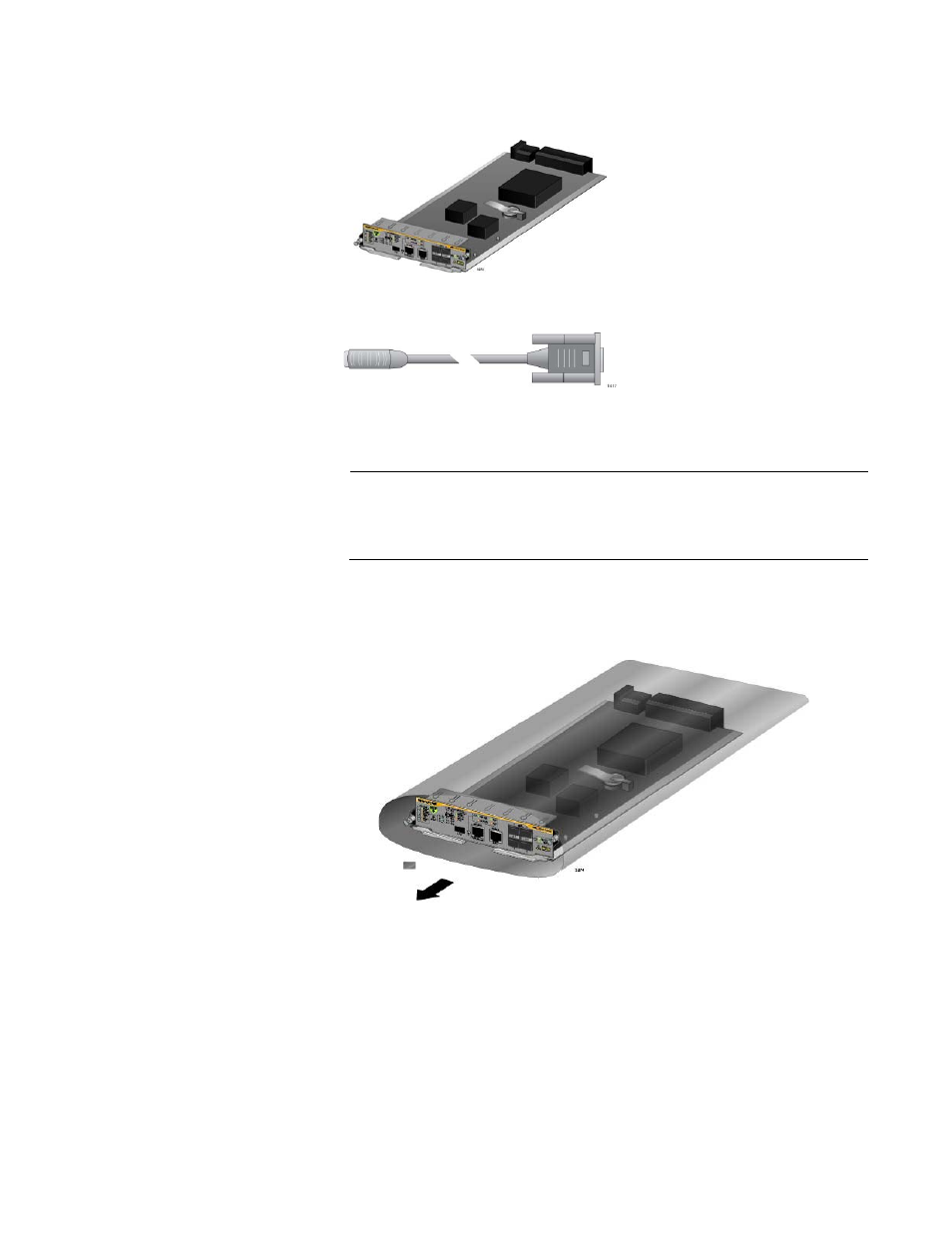

Figure 66. Items Included with the AT-SBx81CFC960 Controller Card
Note
Store the packaging material in a safe location. You should use the
original shipping material if you need to return the unit to Allied
Telesis.
3. Carefully remove the controller card from the anti-static bag. Refer to
Figure 67. Removing the AT-SBx81CFC960 Controller Fabric Card from
the Anti-static Bag
4. Carefully remove the battery insulator tab on the controller card by
sliding it out from between the battery and battery clip, as shown in
Figure 68 on page 130.
One AT-SBx81CFC960
Control Card
One 2 m (6.6 ft) local
management cable with
RJ-45 (8P8C) and DB-9
(D-sub 9-pin) connectors.
