Allied Telesis AT-SBx81CFC960 User Manual
Page 252
Chapter 12: Replacing Modules
252
Section II: Installing the Chassis

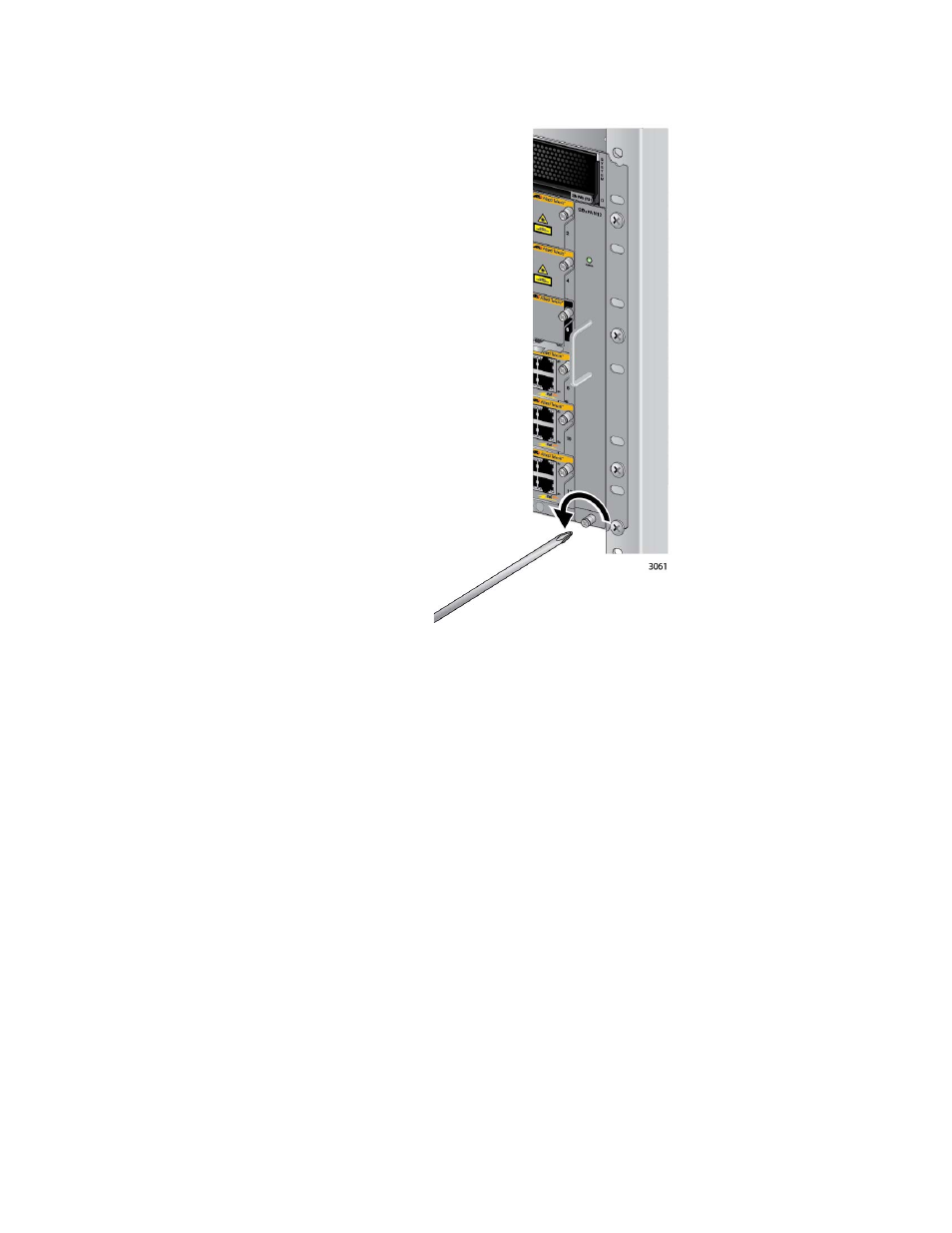

Figure 165. Loosening the Screw on the AT-SBxFAN12 Fan Module
3. Carefully pull on the handle to disconnect the fan module from the
connector on the backplane of the chassis. Refer to Figure 166 on
page 253.
