SwitchBlade x8112 Chassis Switch and AT-SBx81CFC960 Card Installation Guide
Section II: Installing the Chassis 151

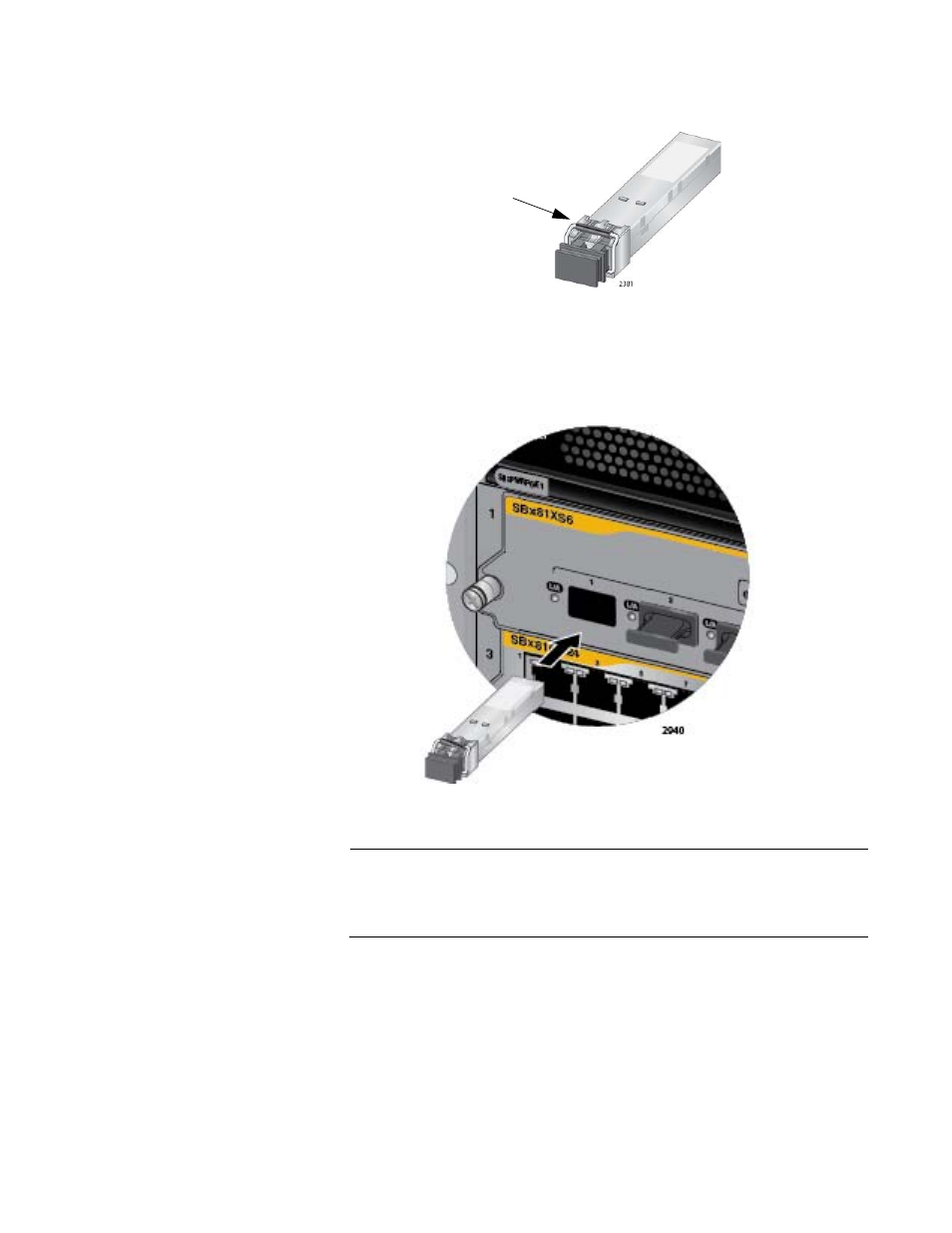

Figure 89. Handle on SFP+ Transceiver
3. Slide the transceiver into the slot until it clicks into place, as shown in
Figure 90.
Figure 90. Installing an SFP+ Transceiver in the AT-SBx81XS6 Line Card
Note
If you are ready to attach the fiber optic cable to the transceiver,
continue with the next step. Otherwise, repeat steps 1 to 3 to install
the remaining SFP transceivers in the line cards.
4. Remove the protective cover from the SFP transceiver, as shown in
Figure 91 on page 152.
Handle
