Chapter 8: Installing the Transceivers and Cabling the Ports
156 Section II: Installing the Chassis
Installing SFP+ Transceivers in the AT-SBx81XS16 Line Card
Please review the information in “Guidelines to Installing SFP and SFP+
Transceivers” on page 145 before performing this procedure.
To install 10Gbps SFP+ transceivers in the AT-SBx81XS16 Line Card,
perform the following procedure:
1. Remove the dust plug from the slot chosen for the SFP+ transceiver.
Figure 96 shows the dust plug removed from slot 1.

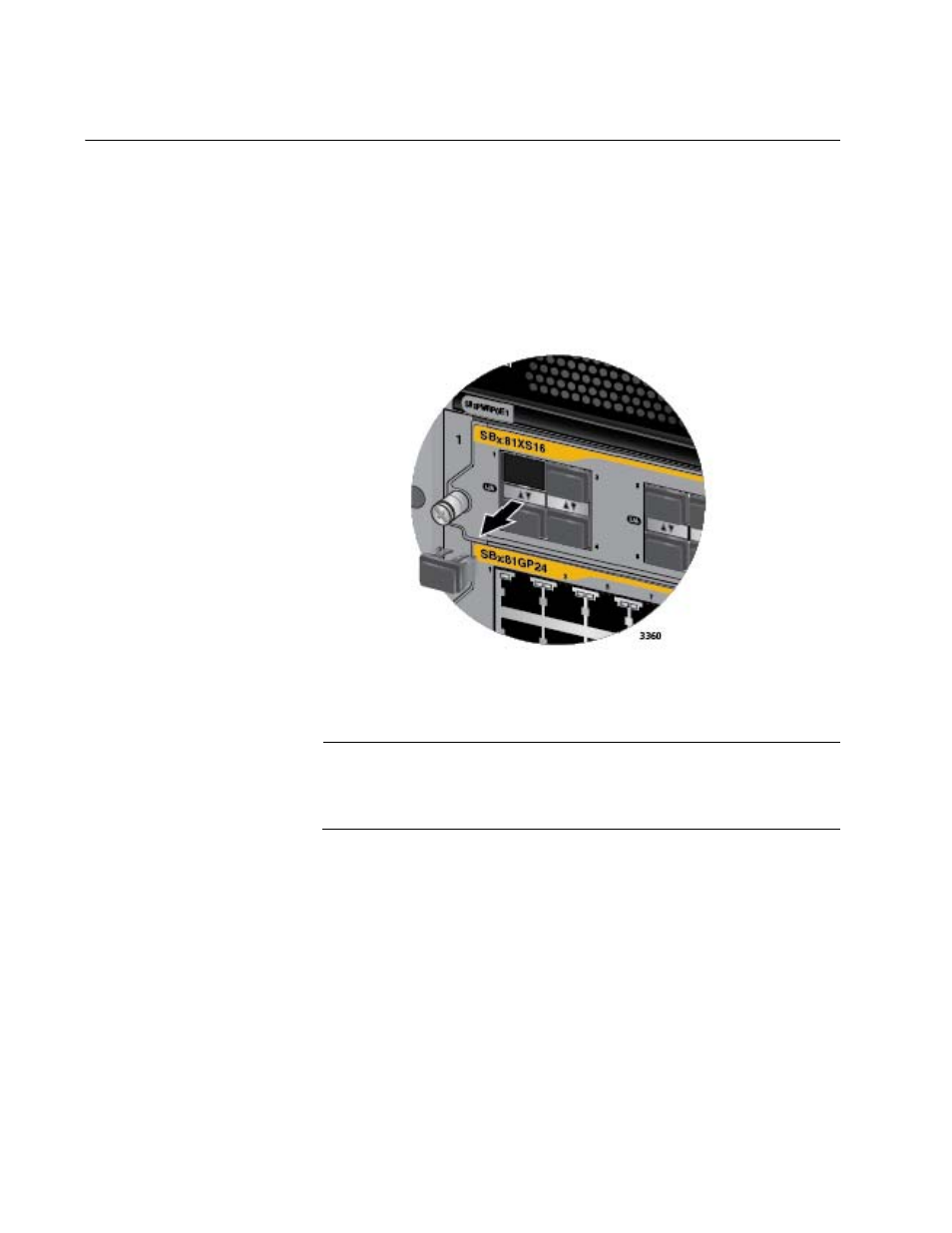

Figure 96. Removing the Dust Cover from a Transceiver Slot in the AT-
SBx81XS16 Line Card
Note
Do not remove the dust plug from a transceiver slot if you are not
installing the transceiver at this time. The dust plug protects the line
card from dust contamination.
2. Slide the transceiver in the slot until it clicks into place.
To install the transceiver into an odd numbered slot, position it with the
handle is on top as you slide it into the slot. To install the transceiver
into an even numbered slot, position it with the handle on the bottom.
Refer to Figure 97.
