SwitchBlade x8112 Chassis Switch and AT-SBx81CFC960 Card Installation Guide
Section I: Hardware Overview 51
AT-SBx81XS16 SFP+ Line Card
The AT-SBx81XS16 Line Card, shown in Figure 26, is an Ethernet switch
that supports 10Gbps SFP+ transceivers.

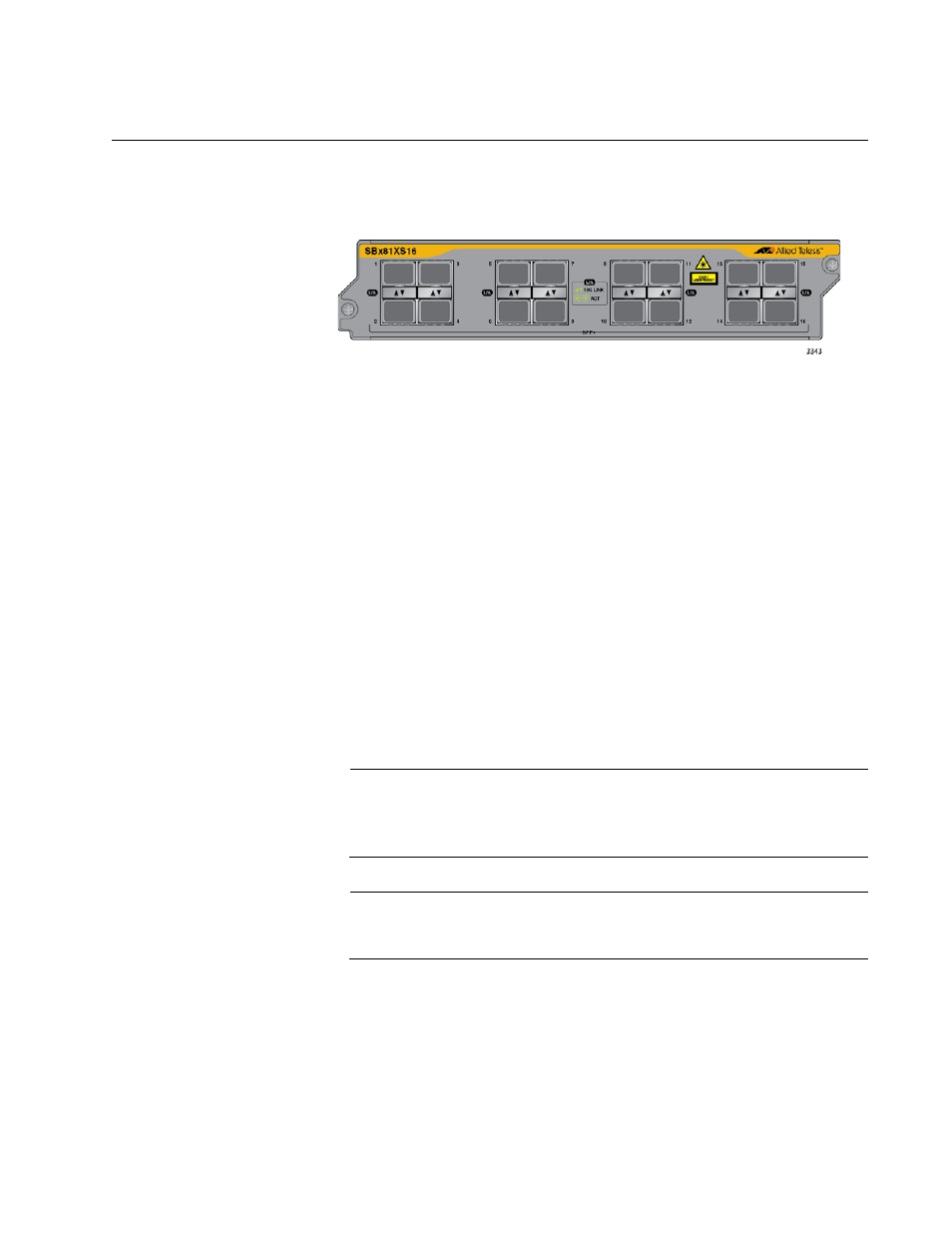

Figure 26. AT-SBx81XS16 Line Card
Here are the main features of the line card:
 Sixteen slots for 10Gbps SFP+ transceivers
 Supports 10GBase-SR/LR fiber optic transceivers
 Supports AT-SP10TW direct connect twinax cables with SFP+
transceiver-style connectors
 Port Link/Activity (L/A) LEDs
 32K entry MAC address table
 32 Mb buffer memory
 Jumbo frame support of up to 10240 bytes
 Hot swappable
Contact your Allied Telesis sales representative for a list of supported
transceivers.
Note
The AT-SBx81XS16 Line Card is supported in slots 1 to 4, 8, and 10
in the AT-SBx8112 Chassis. The card is not supported in slots 7, 9,
11, and 12.
Note
The line card is not supported by the AT-SBx81CFC400 Controller
Fabric Card.
LEDs The AT-SBx81XS16 Line Card has one LED for each SFP+ slot. The LED
is shown in Figure 27 on page 52 and described in Table 11 on page 52.
