Chapter 8: Installing the Transceivers and Cabling the Ports
154 Section II: Installing the Chassis
Installing AT-SP10TW Cables in the AT-SBx81XS6 Line Card
This procedure explains how to connect AT-SP10TW Cables to AT-
SBx81XS6 Line Cards. The cables may be used in place of fiber optic
cables and transceivers for 10 Gbps links of up to 7 meters.
Note
The AT-SP10TW Cable is supported in the AT-SBx81XS6 and AT-
SBx81XS16 Line Cards. It is not supported in the AT-SBx81GS24a
Line Card or AT-SBx81CFC960 Controller Fabric Card.
To install AT-SP10TW Cables, perform the following procedure:
1. Remove the dust plug from an SFP+ slot. You may install AT-SP10TW
Cables into any of the slots in the line card. Refer to Figure 94.

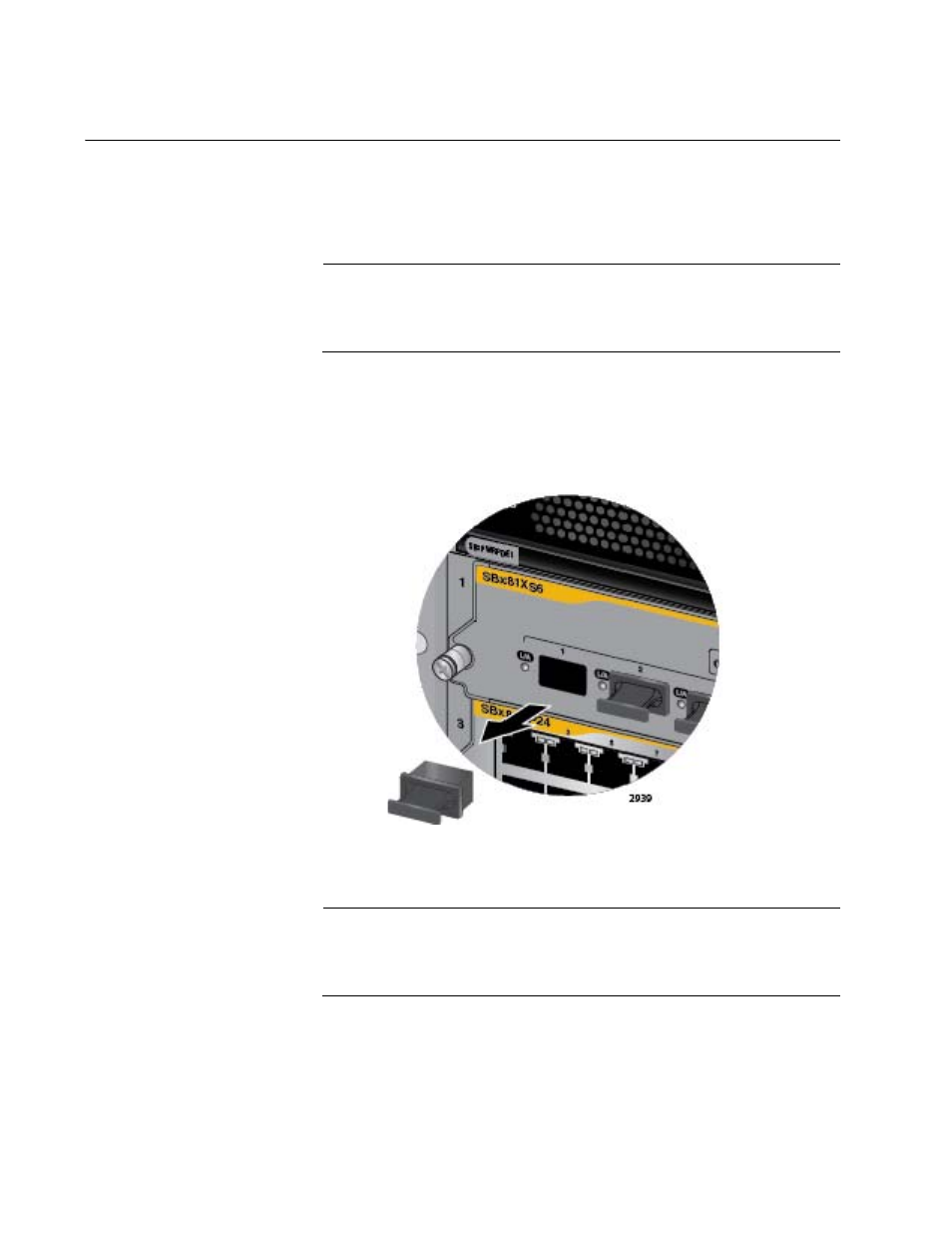

Figure 94. Removing the Dust Cover From an SFP+ Slot in the AT-
SBx81XS6 Line Card
Note
Do not remove the dust plug from an SFP+ slot if you are not
installing the transceiver at this time. The dust plug protects the line
card from dust contamination.
2. Slide the connector into the slot until it clicks into place, as shown in
Figure 95 on page 155.
