Chapter 12: Replacing Modules
230 Section II: Installing the Chassis
Replacing the AT-SBxPWRSYS1 AC or AT-SBxPWRPOE1 Power
Supply
This section contains the procedure for removing the AT-SBxPWRSYS1
AC or AT-SBxPWRPOE1 Power Supply from the AT-SBx8112 Chassis.
Note
The illustrations in the procedure show the removal of an AT-
SBxPWRSYS1 AC Power Supply from slot D. The procedure is the
same for all power supply slots.
To remove an AT-SBxPWRSYS1 AC or AT-SBxPWRPOE1 Power Supply
from the chassis, perform the following procedure:
1. Disconnect the AC power cord for the power supply from the AC
power source and the corresponding AC socket on the back panel of
the chassis. The figure in Figure 149 shows the removal of the power
cord from connector D, which corresponds to slot D on the front panel.

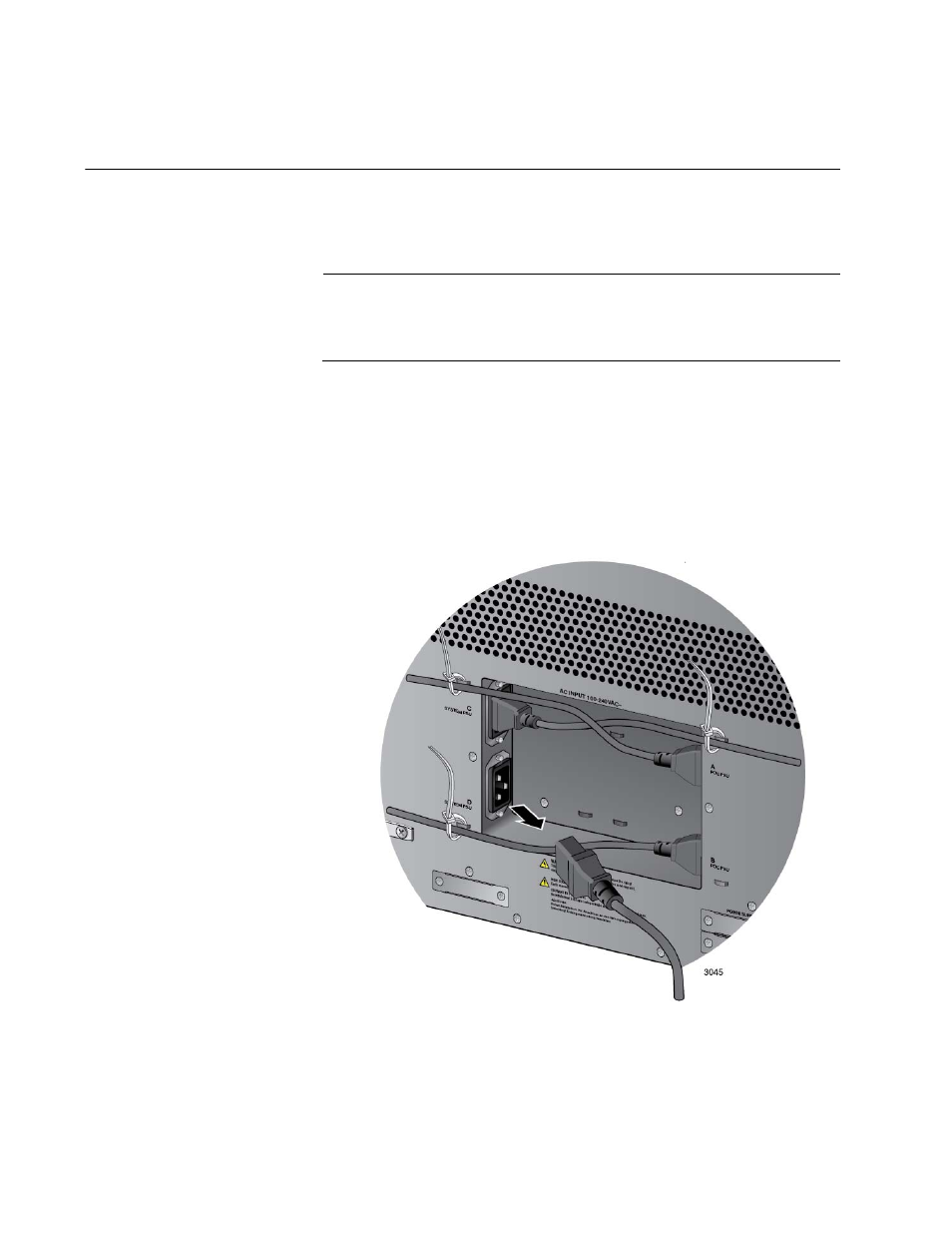

Figure 149. Disconnecting the AC Power Cord from the AC Socket on the
Back Panel
