Allied Telesis AT-SBx81CFC960 User Manual
Page 302
Chapter 15: Building a Stack
302
Section III: Building a Stack with VCStack Plus

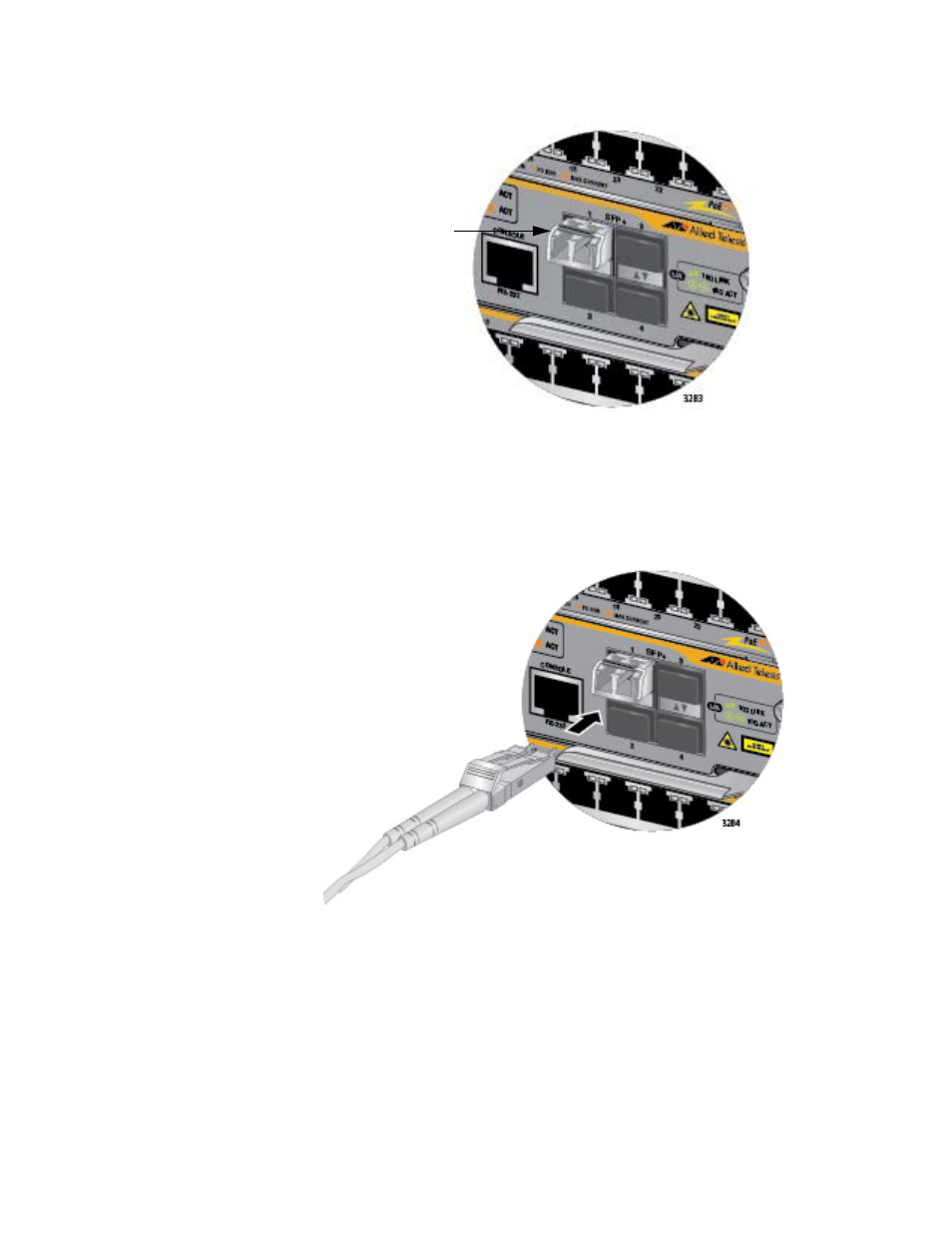

Figure 188. Positioning the Handle on the Transceiver
6. Connect the fiber optic cable to the transceiver, as shown in
Figure 189. The connector on the cable should fit snugly into the port,
and the tab should lock the connector into place.
Figure 189. Connecting a Fiber Optic Cable to a Stacking Transceiver
7. Repeat this procedure to cable all the stacking transceivers on both
switches. Afterwards, go to “Powering On the Stack” on page 303.
