Allied Telesis AT-SBx81CFC960 User Manual
Page 167
SwitchBlade x8112 Chassis Switch and AT-SBx81CFC960 Card Installation Guide
Section II: Installing the Chassis
167

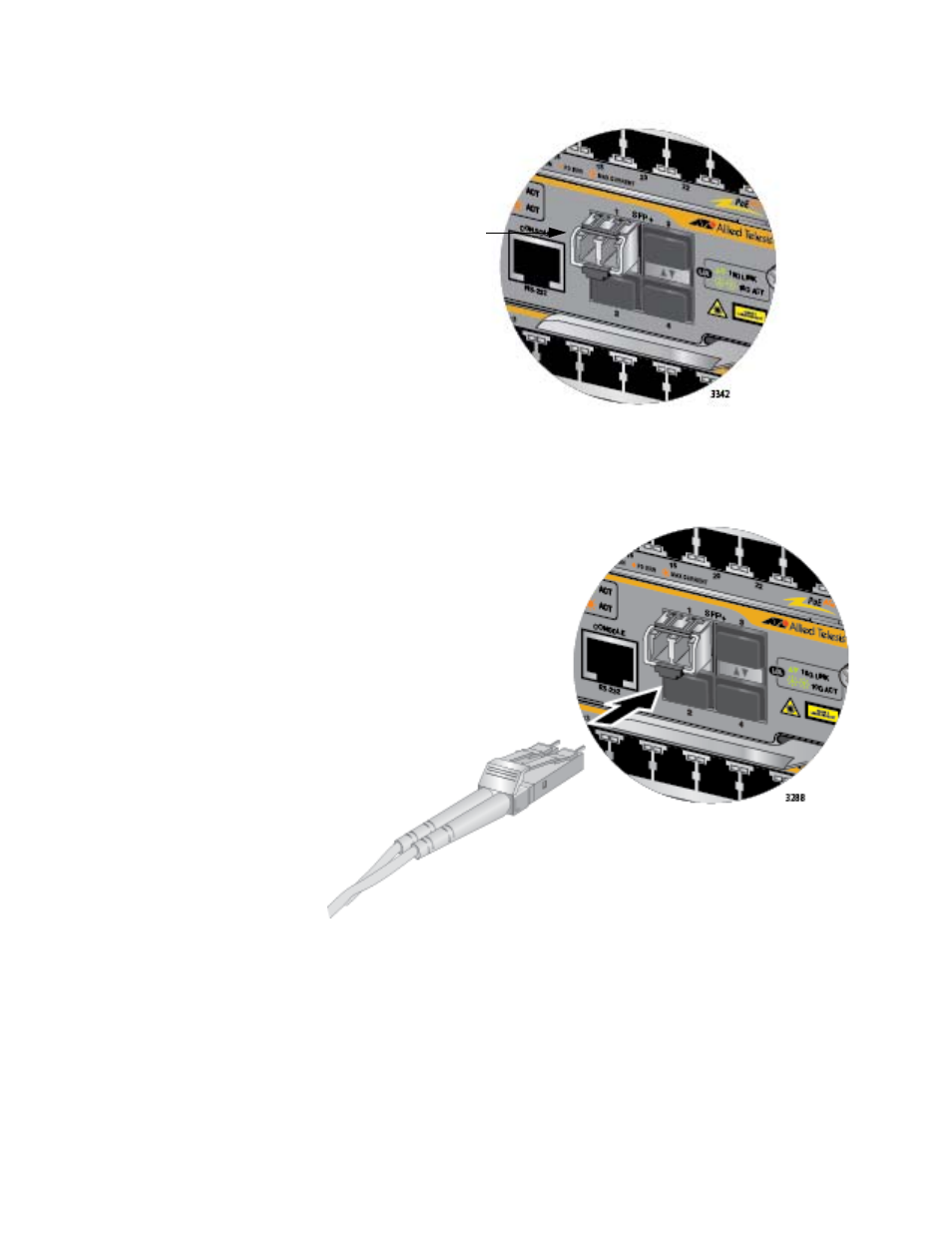

Figure 107. Positioning the Handle on the Transceiver
6. Connect the fiber optic cable to the port on the transceiver, as shown
in Figure 108 on page 167. The connector should snap into the port.
Figure 108. Attaching a Fiber Optic Cable to an SFP+ Transceiver in the
AT-SBx81CFC960 Controller Fabric Card
7. Repeat this procedure to install additional SFP+ transceivers in the
AT-SBx81CFC960 Controller Fabric Card.
Handle
